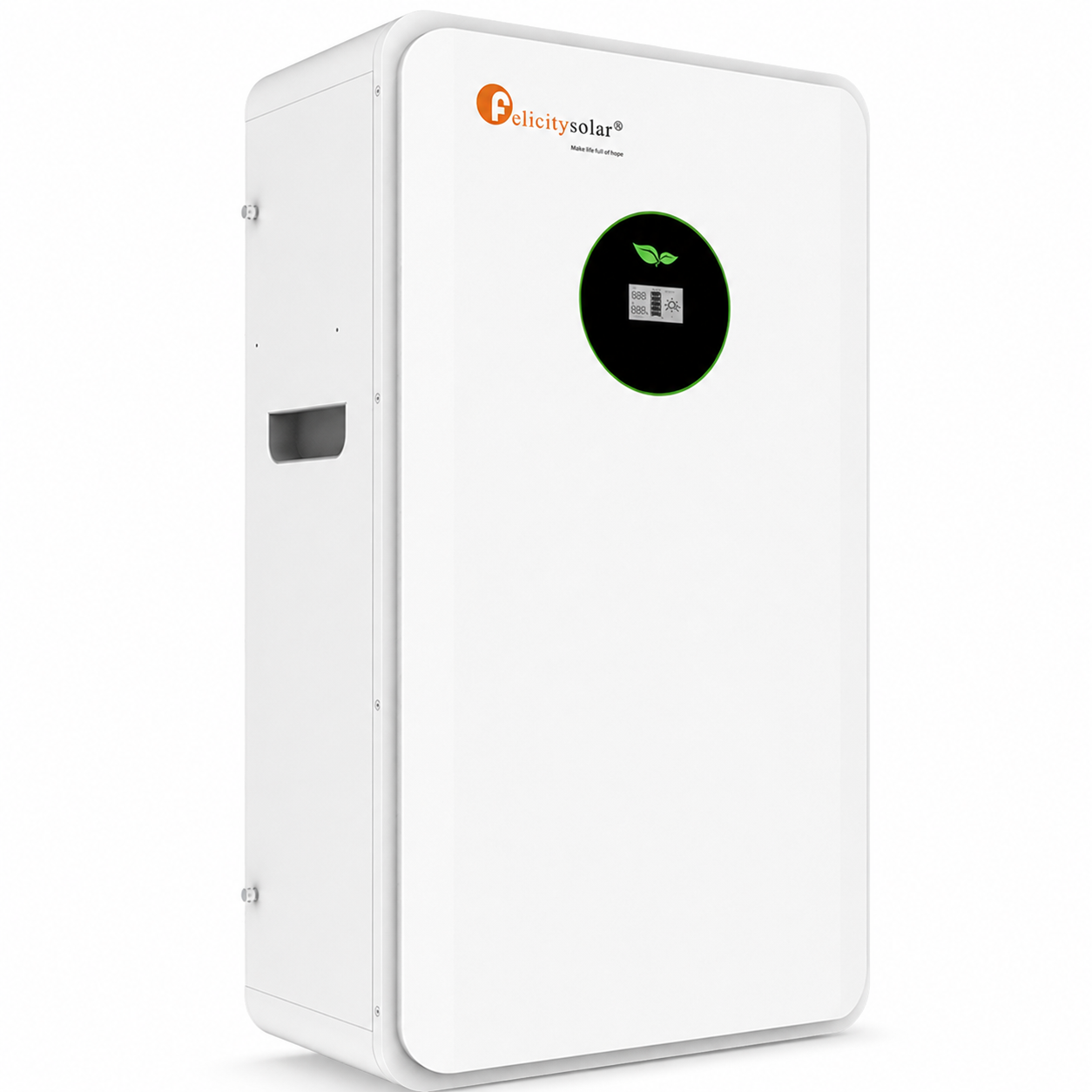

The Felicity FLA48200 10.24kWh Lithium Battery is a high-capacity 51.2V low-voltage LiFePO4 battery pack designed for solar energy storage, hybrid inverter systems, backup power, and off-grid applications. With advanced lithium iron phosphate technology, it provides stable performance, improved safety, and long service life for residential and commercial energy storage systems.
This battery comes with a built-in smart BMS, breaker, fuse protection, and an aerosol fire extinguishing system for enhanced safety. It also supports WiFi/Bluetooth remote monitoring, allowing users to monitor battery data easily. The RS485/CAN communication interface makes it compatible with leading inverter brands.
The Felicity FLA48200 supports scalable expansion of up to 15 batteries in parallel, allowing total storage capacity up to 150kWh according to the datasheet. With more than 6000 cycles, ?95% depth of discharge, and up to 7 years warranty, it is a strong solution for reliable solar power storage.
| Nominal Energy |
10kWh / commonly marketed as 10.24kWh |
| Operating Voltage |
44.8V ? 57.6V |
| Recommended Charge / Discharge Current |
?120A |
| Recommended Charge / Discharge Power |
?6,000W |
| Maximum Charge / Discharge Current |
150A |
| Maximum Charge / Discharge Power |
7,500W |
| Scalability |
Max. 15 pcs in parallel |
| Maximum Parallel Capacity |
150kWh |
| Communication |
RS485 / CAN |
| Charging Temperature Range |
0?C to 55?C |
| Discharging Temperature Range |
-20?C to 55?C |
| Installation Type |
Wall-mounted / Floor-mounted |
| Protection System |
Built-in Smart BMS, Breaker, Fuse |
| Certification |
UN38.3, CE-EMC, IEC 62619, CB |
| Product Dimension |
735 ? 433 ? 188mm |
| Package Dimension |
849 ? 550 ? 362mm |
