Inverex 5KW IP65 Lithium Battery

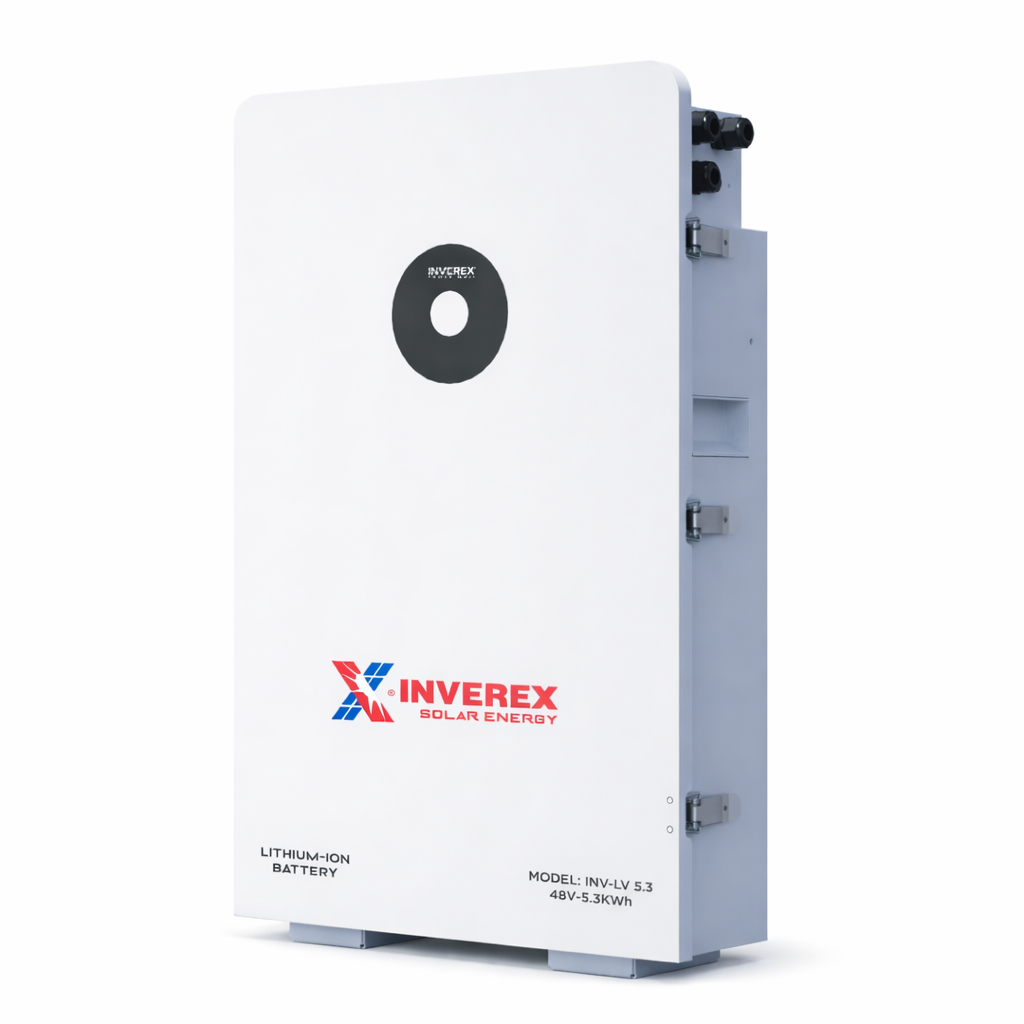

Inverex 5.32kWh 51.2V 104Ah IP65 Lithium Battery Overview

The Inverex INV-LV5.3 stores solar energy for home backup systems. Buyers checking the inverex 5kw IP65 lithium battery price in Pakistan can compare its 5.32kWh nominal energy and 4.8kWh usable energy at 90% depth of discharge. In addition, its 51.2V LiFePO₄ design suits compatible low-voltage solar inverters.

Customers searching for inverex 5kw IP65 battery price in Pakistan usually want a battery in the 5kWh storage class. However, the INV-LV5.3 stores 5.32kWh of energy; the term 5KW is buyer search wording, not the battery’s rated power.

Also, the battery combines an IP65 case, smart BMS, built-in circuit breaker and CAN/RS485 ports. Together, these features help installers set up suitable low-voltage solar storage. Installers can mount it on a wall or place it on the floor.

For households managing load shedding or storing daytime solar energy, the inverex 5kwh battery offers a practical way to add storage without starting with a larger battery bank.

Key Features and Buyer Benefits

LiFePO₄ Battery Chemistry

The INV-LV5.3 uses lithium iron phosphate (LiFePO₄) chemistry. This battery technology is well suited to rechargeable energy storage applications because of its thermal stability and long cycle-life characteristics.

In addition, the battery offers at least 6,000 rated cycles under the stated test conditions.

IP65 Enclosure Protection

The IP65 case keeps dust out and resists water jets. As a result, installers have more choice of suitable locations than with a case meant only for dry indoor use.

However, IP65 does not mean the battery is suitable for immersion, flooding or continuous direct exposure to severe weather. Proper mounting, ventilation and protection from direct sunlight remain important.

Intelligent Battery Management

An intelligent BMS monitors and manages battery operation, working alongside the built-in circuit breaker.

In addition, the battery connects modules automatically without DIP switches. This makes a correctly planned multi-battery setup easier.

CAN and RS485 Communication

CAN 2.0 and RS485 communication interfaces support information exchange with compatible inverter and battery-management equipment.

However, the inverter must use a matching BMS protocol, firmware and cable setup for the connection to work.

Flexible Installation and Expansion

Furthermore, installers can place the battery on a wall or the floor. A correctly designed system can link up to 32 units in parallel, subject to the battery setup rules.

Best For

The inverex 5kw lithium battery IP65 is particularly suitable for:

• Residential hybrid solar systems with compatible low-voltage battery inputs.
• Homeowners seeking stored energy for essential loads during load shedding.
• Customers replacing older battery storage with a compatible LiFePO₄ system.
• Installations where wall-mounted or floor-mounted positioning is preferred.
• Solar users planning future battery-capacity expansion.

Even so, real backup time depends on the inverter, the appliances in use and battery conditions.

Not Ideal For

However, the INV-LV5.3 does not suit high-voltage battery setups, incompatible inverter data links or loads that exceed its current limits.

Its IP65 protection should not be confused with unrestricted outdoor exposure. Understanding the battery ip rating helps buyers choose a suitable installation location.

Therefore, check inverter compatibility and the backup time you need before buying. Battery capacity alone cannot confirm a good match.

Battery Capacity: kWh, Ah and Usable Energy Explained

The INV-LV5.3 has a nominal voltage of 51.2V and a rated capacity of 104Ah.

Battery energy is calculated as follows:

51.2V × 104Ah ÷ 1000 = 5.3248kWh

Its nominal energy rating is 5.32kWh.

At the recommended 90% depth of discharge, the usable energy is 4.8kWh.

As a result, buyers can see the difference between total energy and the amount available for daily use. When checking inverex 5kw IP65 lithium battery price in Pakistan, use the correct kWh figures to compare batteries.

Search wording such as inverex battery 5kw refers to the approximate storage class. For accurate system sizing, use the 5.32kWh energy rating and the battery’s charge and discharge current limits.

Battery Chemistry and Cycle Life

The INV-LV5.3 uses LiFePO₄ chemistry and is rated for at least 6,000 cycles under the following test conditions:

• Cell temperature: 25°C ± 2°C
• Charge/discharge rate: 0.5C/0.5C
• Depth of discharge: 90%
• End-of-life capacity: 70%

However, cycle life does not promise a fixed number of years. Heat, charge habits, discharge depth and daily use affect how batteries age.

Battery Management System and Safety

For example, the built-in BMS helps manage charging and discharge so the battery works within its control limits.

The battery includes:

• Intelligent BMS
• Built-in 125A, 1-pole, 60V DC circuit breaker
• Automatic battery networking
• LCD indication of state of charge and operating status
• CAN 2.0 and RS485 communication

Correct DC protection, cable sizing, earthing where applicable and installation workmanship remain essential.

Charging and Discharging Performance

The INV-LV5.3 supports controlled charging and discharging within its electrical limits.

Its maximum continuous charging current is 100A, while the maximum continuous discharge current is 120A.

The peak charge and discharge current rating is 200A for 10 seconds.

However, temperature and battery charge level affect available current. Therefore, installers must set the inverter to stay within the battery’s limits.

Inverter Compatibility

The INV-LV5.3 works with suitable low-voltage battery systems.

Before connecting it to an inverter, verify:

• Battery operating voltage of 44.8–57.6V
• Charge and discharge current limits
• CAN or RS485 communication requirements
• Correct lithium battery charging settings
• Supported BMS protocol and firmware
• Cable and connector requirements

For this reason, matching the nominal voltage alone does not prove full compatibility.

Hajvery Solar Energy, as an Inverex authorized dealer, helps buyers review these compatibility requirements before purchasing.

Parallel Expansion

The INV-LV5.3 supports parallel operation of up to 32 battery units.

Parallel expansion can increase total stored energy for installations requiring more backup capacity. However, the system must use a compatible configuration with correctly sized cables, protection devices and inverter settings.

Therefore, plan expansion around the battery’s electrical limits and BMS link rules instead of simply adding more units.

Technical Specifications

For buyers, these inverex 5kw IP65 battery specifications explain the voltage, current and space needed for a suitable installation.

Estimated Backup Time

Battery runtime depends on actual AC load, inverter efficiency, battery condition and available energy.

The following estimates use 4.8kWh usable energy and an assumed 90% inverter efficiency.

Therefore, treat these times as estimates rather than guarantees. Inverter standby use, heat, battery age and changing loads can shorten backup time.

Lithium Battery Use in Pakistan

In Pakistan, power cuts make stored energy useful for many homes with solar systems. For this reason, buyers should match usable energy to their essential loads.

The INV-LV5.3 can store energy from a compatible solar charging system and supply supported loads through the inverter when battery operation is required.

In warmer areas such as Lahore and other parts of Punjab, battery placement matters. Although the enclosure is IP65-rated, it should be installed in a suitable location with adequate airflow and protection from excessive heat and direct sunlight.

Also, correct charge settings, DC protection and BMS links help the system stay within safe limits. When comparing inverex 5kw IP65 lithium battery price in Pakistan, these installation needs matter as much as capacity.

Inverex 5KW IP65 Lithium Battery Price in Pakistan

The current price of the Inverex INV-LV5.3 5.32kWh IP65 Lithium Battery in Pakistan is Rs. 315,000 per battery. Contact Hajvery Solar Energy to confirm current stock and delivery arrangements.

Buyers researching inverex IP65 lithium battery price in Pakistan should consider usable energy, inverter compatibility and warranty coverage alongside the purchase price.

The broader inverex lithium battery price in Pakistan market includes batteries of different capacities and voltage ratings, so comparing the correct model is important.

For customers comparing the 5kw lithium battery price in Pakistan, the INV-LV5.3 combines an IP65 case with a low-voltage battery design. Moreover, buyers should compare usable storage capacity, not price alone.

The cost of lithium batteries for solar also depends on installation materials, compatible equipment and any additional system modifications.

Hajvery Solar Energy is an Inverex Official Distributor serving retail customers, installers and dealers. Contact the sales team for quantity-based quotations.

Hajvery Compatibility and Authenticity Check

Before purchasing an Inverex battery, confirm the exact model number, serial information, warranty documentation and intended inverter configuration.

Customers comparing inverex batteries price in Pakistan should also distinguish between battery energy capacity, power delivery and inverter requirements.

Hajvery Solar Energy, as an authorized Inverex dealer, assists customers with product identification, buying guidance and compatibility enquiries.

Finally, confirm the latest stock availability before arranging collection or delivery. You can also review Hajvery Solar Energy’s Authorized Dealership Certificates page to see its published certificates.

Warranty

The Inverex INV-LV5.3 IP65 Lithium Battery comes with a 10-year warranty, subject to the applicable warranty terms and conditions.

Before you buy, confirm the warranty terms, exclusions and claim steps. In particular, a 10-year warranty does not automatically include unconditional replacement coverage. You can also view the Inverex battery product information for further product details.

As an Official Inverex Distributor, Hajvery Solar Energy can help customers obtain guidance on the applicable warranty process.

Before You Buy

Before ordering the INV-LV5.3, consider the following:

• Confirm that your inverter supports a 51.2V low-voltage lithium battery.
• Check the supported BMS communication protocol.
• Calculate your required usable battery capacity.
• Review maximum charging and discharging current settings.
• Decide whether future parallel expansion is required.
• Check wall or floor installation space.
• Confirm the applicable 10-year warranty documentation.
• Verify the current stock and delivery arrangements.

Buyers considering IP65 lithium battery price in Pakistan should remember that enclosure protection is only one selection factor. Electrical compatibility and correct installation are equally important.

Frequently Asked Questions

What is the Inverex 5KW IP65 lithium battery price in Pakistan?

The current price of the Inverex INV-LV5.3 IP65 Lithium Battery in Pakistan is Rs. 315,000 per battery. Contact Hajvery Solar for current availability.

What is the capacity of the Inverex INV-LV5.3 lithium battery?

It has 5.32kWh nominal energy and 4.8kWh usable energy at the recommended 90% depth of discharge.

Is the Inverex 5KW lithium battery IP65-rated?

Yes. The INV-LV5.3 has an IP65 enclosure designed for dust protection and resistance to water jets. Suitable installation conditions remain important.

How long can this Inverex lithium battery provide backup?

Runtime depends on the connected load, inverter efficiency and available battery energy. For example, a steady 1,000W AC load may receive approximately 4.3 hours of backup under the stated estimate assumptions.

Can the INV-LV5.3 work with any solar inverter?

Not automatically. The inverter must support the battery’s voltage range, charging and discharging limits, and required communication protocol.

What warranty comes with the INV-LV5.3?

The battery comes with a 10-year warranty, subject to applicable Inverex terms and claim requirements.

Can multiple INV-LV5.3 batteries be connected in parallel?

Yes. Up to 32 units are supported in parallel with a suitable system design and configuration.

Is the INV-LV5.3 suitable for residential solar backup?

Yes, when connected to an electrically compatible inverter and correctly sized for the household’s backup requirements.

Buy Inverex 5.32kWh IP65 Lithium Battery from Hajvery Solar

Hajvery Solar Energy supplies Inverex lithium batteries to residential buyers, solar installers and dealers.

For help choosing a system, explore our lithium battery range and solar inverters. Then use our Contact Us page for stock, battery compatibility and order enquiries.

Visit our Lahore location at 280K Block J-1, Johar Town, or contact our team for delivery enquiries across Pakistan.
