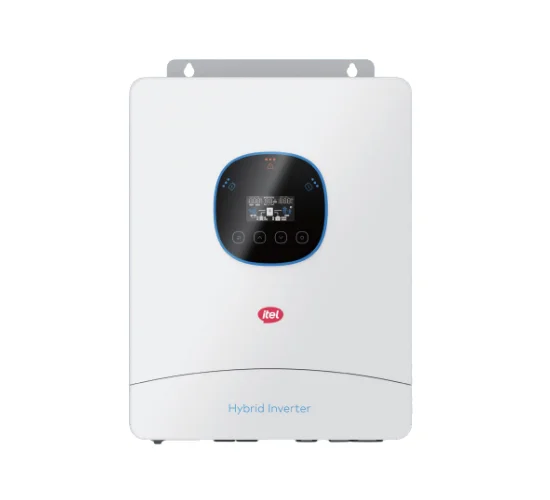

Itel 12kW IP54 Hybrid Inverter

Specifications

• Brand: Itel
• Model: 12kW Hybrid (IP54)
• Inverter Type: Hybrid (Grid + Battery Compatible)
• Rated Output Power: 12,000W
• Max DC Input Power: ~15,000W
• AC Output Voltage: 400V (Single Phase)
• Battery Compatibility: 48V/51.2V Lithium Battery Compatible
• MPPTs: 2 Independent MPPT Inputs
• Max PV Input Voltage: 800V
• Max PV Input Current: 26A per MPPT
• Max Efficiency: ~97.8%
• Surge Power: Up to 2x rated output (short time)
• Communication Ports: CAN / RS485 / WiFi (optional)
• Display: LCD Screen
• Protection Rating: IP54 (Dust & Water Resistance)
• Cooling: Smart Fan Cooling
• Operating Temperature Range: -25°C to +60°C
• Dimensions: Approx. 670 × 470 × 220 mm
• Weight: ~48–55 kg
• Warranty: 5 Years Standard (Extendable)
