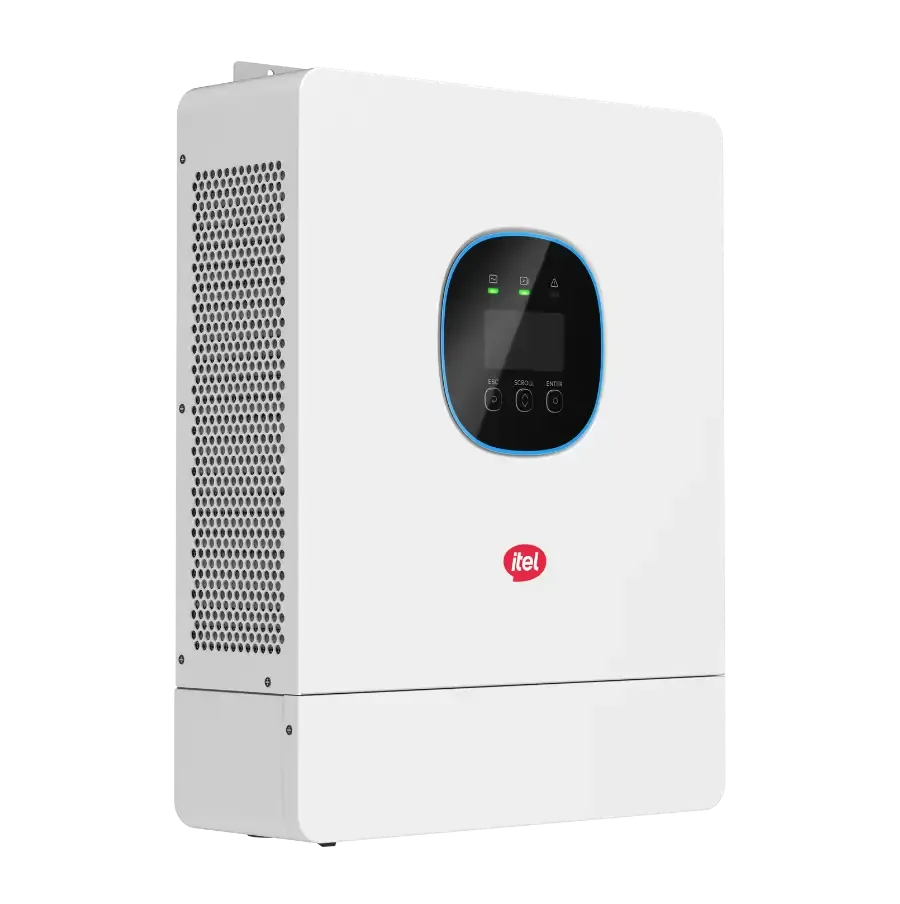

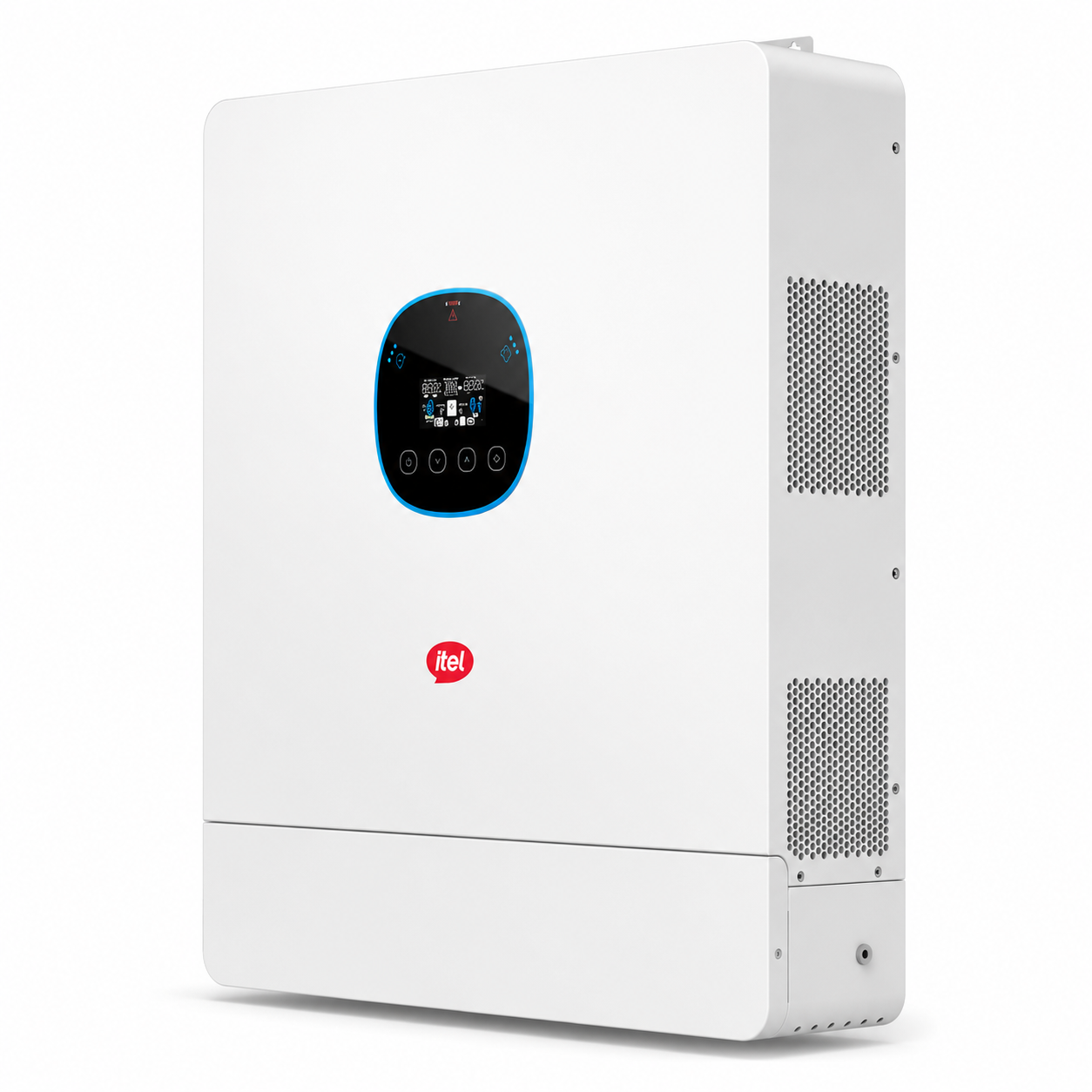

Itel 12KW IP54 Hybrid Inverter – Single Phase

itel 12KW 48V Hybrid Inverter Overview

The itel 12KW 48V Hybrid Inverter is built for solar systems where high AC output, battery storage and flexible PV input are important. Its 12kW rated output makes it suitable for larger single-phase residential systems, selected commercial applications and installations with substantial daytime and backup loads. The itel 12kw hybrid inverter single phase price in pakistan is an important consideration for buyers planning a high-capacity solar system with battery backup.

The inverter combines solar generation, battery storage and grid power management in a single system. Moreover, its 16kW maximum PV input provides room for a sizeable solar array, while the two MPPT trackers help manage PV strings independently. Each MPPT supports up to 27A input current, which is useful when designing systems around higher-current solar modules.

The 48V battery architecture supports lead-acid, lithium-ion and user-defined battery types. Its battery voltage range is 40–60V, while maximum charging current reaches 210A and maximum discharge current reaches 250A. Therefore, the system offers substantial battery-side current capability for backup applications.

Why This Hybrid Inverter Stands Out

16kW Maximum PV Input

A significant advantage of this model is its 16kW maximum PV input power, even though its AC output rating is 12kW. Therefore, system designers can choose a bigger DC solar array without exceeding the inverter’s specified PV limit.

However, the array should still be designed with reference to the panel’s Voc, Vmp, Isc and Imp, temperature conditions and MPPT current limits. Choosing panels only on the basis of their total wattage is not sufficient.

Dual MPPT with 27A + 27A Input Current

The inverter has two MPPT trackers, each supporting a maximum input current of 27A. This independent MPPT tracking is useful when PV strings have different orientations or operating conditions.

Furthermore, the per-MPPT current limit is especially important for installers working with modern high-current solar modules. Proper string planning helps keep the solar array within the inverter’s electrical limits.

Strong 48V Battery Current Capability

The 48V battery system operates across a 40–60V battery voltage range. Its maximum charging current is 210A, while maximum discharging current reaches 250A.

As a result, the inverter can be used in systems where battery-powered loads need a large amount of power. Nevertheless, the selected battery must safely handle the required charge and discharge current.

Generator and Smart Load Support

The inverter supports diesel generator integration and smart load support. These features give system designers additional flexibility where solar and battery power need to work alongside other energy sources.

For example, generator integration can provide another energy source when solar and battery power cannot meet demand under certain operating conditions. Meanwhile, smart load support can help manage selected loads according to available energy.

IP54 Protection

The inverter has an IP54 protection rating. Therefore, buyers searching for itel 12kw hybrid inverter ip54 price in pakistan should look for the actual IP54-rated configuration rather than assuming a higher protection class.

Best For

The itel 12KW Hybrid Inverter is a suitable option for:

• Large single-phase homes with significant electrical loads.
• Solar systems requiring battery backup.
• Installations using 48V lithium-ion or lead-acid batteries.
• Systems with a relatively large PV array.
• Buyers who need generator support.
• Installers working with high-current PV modules within the inverter’s input limits.
• Areas where load shedding makes battery backup important.
• Users who want solar generation, grid supply and battery storage managed through one hybrid inverter.

Not Ideal For

This model may not be the right choice when:

• The property requires a three-phase inverter output.
• The planned battery system does not operate within the 40–60V battery range.
• The PV array exceeds the inverter’s 16kW maximum PV input.
• The system needs a higher protection rating than IP54.
• The installation requires a battery brand or BMS protocol that has not been confirmed for this exact inverter.
• The buyer only needs a basic grid-tied inverter and has no requirement for battery storage or backup functionality.

Solar PV Input and MPPT Performance

The itel 12KW 48V Hybrid Inverter has a maximum PV input power of 16kW and a maximum PV input voltage of 500V. Its start-up voltage is 75V, while the MPPT operating voltage range extends from 85V to 450V.

Furthermore, the 12kW version has two MPPT trackers, a maximum PV input current of 27A + 27A and 99.5% MPPT tracking efficiency.

These specifications provide installers with useful flexibility when arranging PV strings. However, the final setup must stay within the inverter’s voltage and current limits. The panel’s Voc should be compared with the maximum DC voltage, taking temperature effects into account. Also, the total string current must remain within the applicable MPPT input limit.

For customers searching itel 12kw inverter specifications, these PV limits are among the most important figures to check before purchasing.

Battery Compatibility and Energy Storage

The itel 12KW 48V Hybrid Inverter uses a 48V battery architecture with an operating range of 40–60V.

Supported battery types include:

• Lead-acid
• Lithium-ion
• User Defined

The maximum MPPT charging current is 210A. Similarly, the maximum charging current from the mains or generator is also 210A, while the maximum battery discharge current is 250A.

This combination makes the inverter appropriate for systems where battery-backed loads require substantial power. However, the selected battery must safely manage the required charging and discharging current.

Before installing the battery, check the specific battery-brand compatibility, voltage requirements, BMS communication and relevant inverter settings. In addition, confirm the supported communication protocol rather than assuming that every lithium battery will communicate correctly with the inverter.

Backup Power and Load-Shedding Performance

Backup operation is an important part of this inverter’s design. The 12kW model provides 12kW nominal AC output power and 12kVA maximum apparent output power.

For UPS applications, the switching time is 10ms, while it is 20ms for other applications. Additionally, the surge power is rated at 24kVA for 5 seconds, providing extra short-term capacity for suitable starting or surge loads.

The overload specification is 105% to 150% for 10 seconds and 150% to 200% for 55 seconds, subject to the applicable operating conditions and configuration.

Therefore, this inverter is relevant for Pakistani households and businesses that need battery backup during load shedding. However, actual backup performance still depends on battery capacity, battery current capability and the connected load.

Generator Support and Smart Load Control

The itel 12KW Hybrid Inverter supports diesel generator operation and smart load support.

Generator integration is useful when the combined capacity of solar power and batteries cannot meet the required demand under certain operating conditions. Meanwhile, smart load support can assist systems where specific loads need to be managed according to available energy.

Installers should configure these functions in accordance with the actual installation and electrical design.

Parallel Operation and System Expansion

The target 12kW model supports single-phase parallel operation with up to 6 units. It also supports three-phase systems using up to 12 units in the parallel configuration.

Consequently, this capability provides an expansion path for projects that require greater overall system capacity. However, installers must follow the correct parallel-system design, configuration and installation requirements.

Monitoring and Communication

The inverter provides communication interfaces such as Wi-Fi, RS485, CAN/RS232 and dry contact.

These communication options can support monitoring, battery communication and system integration, depending on the selected configuration and connected equipment.

For installers, CAN and RS485 are particularly relevant when integrating batteries or other compatible system components. Nevertheless, battery communication should be checked before installation rather than assuming that every lithium battery will communicate correctly with the inverter.

Technical Specifications

Solar PV Input

Battery Specifications

AC/Grid Output

Backup and General Specifications

Recommended Solar System Size

The 12kW AC output and 16kW maximum PV input should not be treated as the same specification.

A PV system can be designed up to the inverter’s stated PV input limit. However, the final number and arrangement of solar panels depend on each panel’s electrical characteristics.

Before finalizing the system, check:

• Panel Voc
• Panel Vmp
• Panel Isc
• Panel Imp
• MPPT voltage range
• 27A + 27A MPPT current limits
• Maximum DC voltage
• Temperature-adjusted string voltage
• Local installation conditions

In short, the inverter’s 16kW maximum PV input is a design limit, not a universal recommendation that every installation should use exactly 16kW of panels.

Hybrid Inverter Use in Pakistan

For Pakistani solar users, a hybrid inverter becomes particularly useful when daytime solar generation needs to work alongside battery storage and grid electricity.

The itel 12KW Hybrid Inverter can be considered for installations where load shedding makes backup power important. During periods of strong sunlight, solar energy can supply the connected system. Meanwhile, battery storage can support the installation when solar production falls.

The 48V battery architecture also gives buyers a familiar low-voltage storage configuration. However, battery selection remains important because high-power loads can require substantial battery current.

Pakistan’s summer temperatures should also be considered during installation. The inverter’s operating temperature range extends from -10°C to 55°C, with power derating indicated at 45°C. Therefore, proper ventilation and installation clearances remain important for reliable operation in hot conditions.

itel 12KW 48V Hybrid Inverter Price in Pakistan

The current price of the itel 12KW 48V Hybrid Inverter in Pakistan is Rs. 272,000 per unit.

The final project cost can vary depending on battery selection, PV modules, protection equipment, mounting, installation requirements and other system components. In addition, dealers, installers and bulk buyers can contact Hajvery Solar for current availability and quantity-based enquiries.

Buyers searching itel 12kw price in pakistan, itel 12kw price, itel 12kw inverter price in pakistan, or itel 12kw single phase price in pakistan can use the current product price above as the relevant Hajvery Solar listing.

Search Clarification for Buyers

Customers searching itel 12kw ip66 inverter price in pakistan or itel 12kw hybrid inverter ip66 should be careful about the protection rating when comparing search results. The itel 12KW target model is IP54, so IP66 should not be treated as a feature of this model.

Similarly, buyers looking for an itel 12kw hybrid inverter datasheet, itel 12kw inverter datasheet pdf, itel 12kw single phase inverter datasheet, itel 12kw single phase datasheet, or itel 12kw single phase hybrid inverter datasheet should match the exact model IPV-12K48U before using specifications for system design.

For people searching itel 12kw review, the most useful points to evaluate are the 12kW output, 16kW PV input, 48V battery architecture, 2 MPPTs, 27A + 27A PV current, 250A maximum discharge current, backup switching time, generator support and IP54 protection.

Hajvery Verified Product Information

• Brand: itel
• Product Name: itel 12KW 48V Hybrid Inverter
• Exact Model: IPV-12K48U
• Product Type: Single-Phase Hybrid Inverter
• Rated Output: 12kW
• Battery Architecture: 48V
• PV Input: Up to 16kW
• MPPTs: 2
• Protection: IP54
• Battery Support: Lead-acid / Lithium-ion / User Defined

Hajvery Solar Energy is an itel Official Distributor, supplying genuine products and applicable warranty support.

As an itel authorized dealer, Hajvery Solar Energy can help buyers check the inverter configuration, battery requirements and system suitability before purchase.

For customers looking for an Official itel Distributor, Hajvery Solar Energy provides product guidance for residential, commercial and installer requirements.

Buying from Hajvery Solar Energy, an authorized itel dealer, also gives customers a clear route for product, compatibility and warranty guidance.

Warranty and After-Sales Support

The itel 12KW 48V Hybrid Inverter comes with a 3-Year Replacement Warranty and 5-Year Service Warranty. The product also has after-sales service coverage through authorized service centers in Pakistan.

The warranty types should be kept separate: replacement coverage applies for the stated replacement period, while service coverage extends for the stated service period. Therefore, buyers should confirm applicable claim requirements and product-specific warranty conditions with Hajvery Solar before purchase.

Before You Buy

Before purchasing the itel 12KW Hybrid Inverter, confirm:

• Is your property suitable for a single-phase 12kW system?
• Does your battery operate within the 40–60V range?
• Is the selected battery compatible with the inverter’s communication requirements?
• Does the planned PV array remain within the 16kW maximum PV input?
• Are panel string voltage and current within the MPPT limits?
• What loads need backup during load shedding?
• Can the battery safely provide the required discharge current?
• Is generator integration required?
• Is parallel expansion required?
• Is IP54 protection appropriate for the planned installation environment?

  For additional product information, visit the itel Official Website.

Frequently Asked Questions

What is the itel 12KW single-phase hybrid inverter?

The itel 12KW 48V Hybrid Inverter is a single-phase hybrid inverter with a 12kW nominal AC output, 48V battery architecture and up to 16kW PV input. It also supports battery storage, generator integration and smart load functionality.

What is the itel 12kw hybrid inverter single phase price in pakistan?

The current price of the itel 12KW 48V Hybrid Inverter in Pakistan is Rs. 272,000 per unit.

What battery does the itel 12KW inverter support?

It supports lead-acid, lithium-ion and user-defined battery types with a 48V rated battery voltage and 40–60V operating range. However, buyers should confirm the exact battery model and BMS communication compatibility before installation.

What is the maximum PV input of this inverter?

The inverter supports a maximum PV input power of 16kW, with a maximum PV voltage of 500V, an MPPT range of 85–450V and two MPPT trackers.

Is the itel 12KW single-phase hybrid inverter suitable for a large home?

It can be considered for a large single-phase home where the required loads, PV array and 48V battery system fit within the inverter’s electrical limits. Therefore, a proper load assessment and system design are important before installation.

What is the itel 12KW single-phase hybrid solar inverter switching time?

The switching time is 10ms for UPS applications and 20ms for other applications.

Is this inverter IP66?

No. The itel 12KW target model has IP54 protection. Buyers searching itel 12kw hybrid inverter ip66 should not assume that IP66 applies to this model.

What warranty does the itel 12KW Hybrid Inverter have?

It comes with a 3-Year Replacement Warranty and 5-Year Service Warranty. Buyers should confirm the applicable warranty claim requirements and conditions with Hajvery Solar.

Buy itel 12KW 48V Hybrid Inverter from Hajvery Solar

The itel 12KW 48V Hybrid Inverter is designed for buyers who need substantial single-phase output, a large PV input, 48V battery storage and backup functionality in one system.

Hajvery Solar Energy can assist with battery compatibility, PV sizing, inverter selection and buying guidance for residential and commercial solar installations. In addition, customers can contact Hajvery Solar for retail, dealer and bulk requirements.
