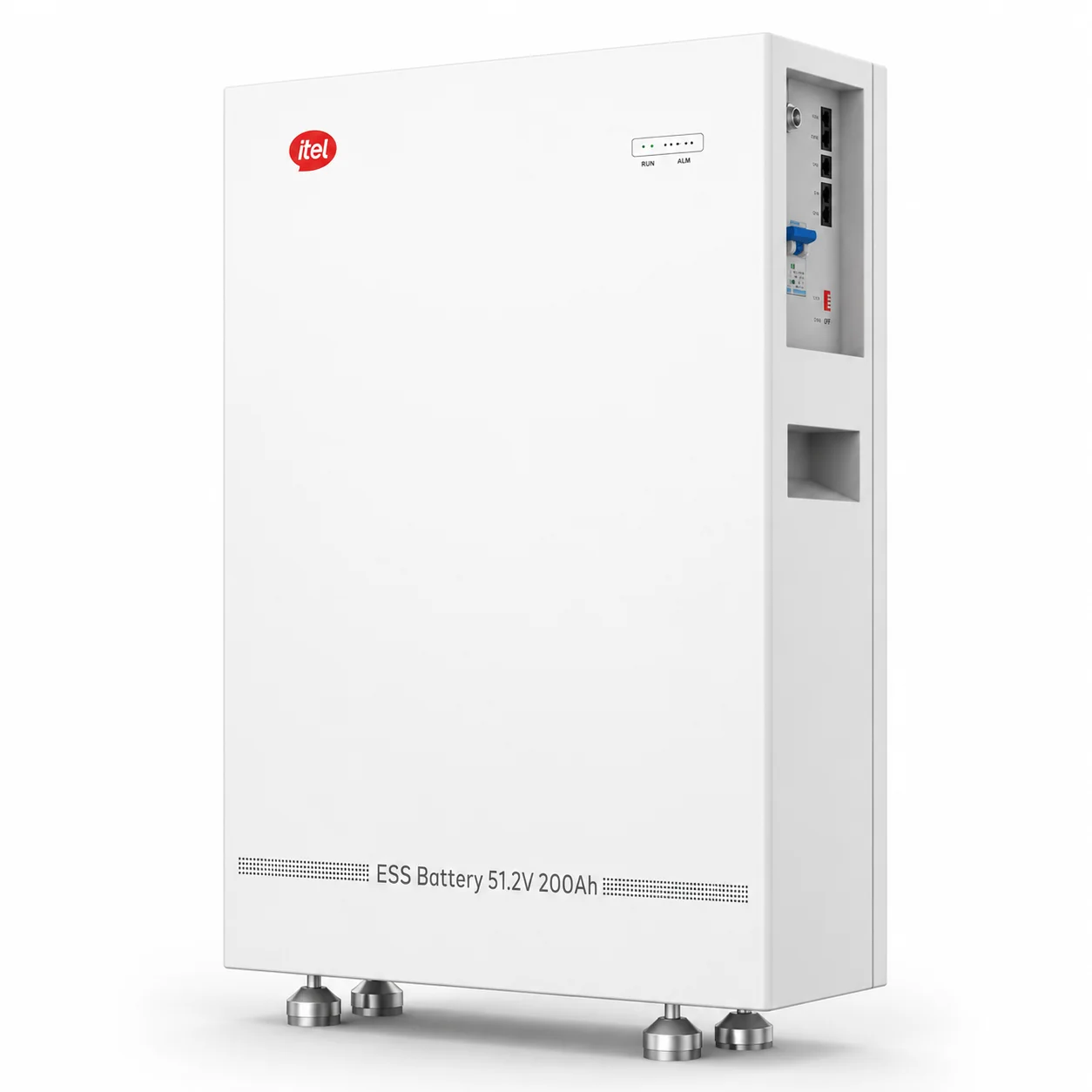

Itel 51.2V 200Ah Lithium Battery

itel 51.2V 200Ah Lithium Battery Overview

The itel lithium battery IPL-51200H is a high-capacity LiFePO4 lithium battery with a 51.2V nominal voltage and 200Ah capacity. Its 10.24kWh nominal energy makes it suitable for compatible solar energy-storage systems, home backup and commercial applications. If you are looking for the itel 51.2V 200Ah 10kWh lithium battery price in Pakistan, this model offeRs. 415,000kWh nominal energy for compatible solar storage and backup systems.

The battery uses Class-A LiFePO4 cells and an intelligent Battery Management System (BMS) with multiple protection functions. It supports CAN 2.0 and RS485 communication for compatible inverter systems. In addition, users can connect up to 32 battery units in parallel, subject to the requirements of the complete system.

For solar installations in Pakistan, this 51.2V battery can suit compatible low-voltage energy-storage systems. However, check the inverter’s battery voltage range, current limits and BMS communication requirements before installation.

Key Features and Buyer Benefits

Class-A LiFePO4 Battery Cells

The itel IPL-51200H uses Class-A LiFePO4 battery cells. This chemistry is commonly used in solar energy-storage applications that require regular charging and discharging.

The battery-cell cycle rating exceeds 6,000 cycles under the stated test conditions of 25°C, 0.5C charge/discharge, 80% depth of discharge (DOD) and 70% end-of-life capacity (EOL). Actual cycle life can vary with temperature, charging patterns, operating conditions and usage. Therefore, this rating should not be treated as a guaranteed cycle count for every installation.

Intelligent BMS and Battery Protection

The itel lithium battery includes an intelligent Battery Management System (BMS) that manages important operating and protection functions. These include voltage, current, temperature and short-circuit protection.

It also features a circuit breaker and multiple protection algorithms. Together, these functions help manage key battery operating conditions. For reliable operation, follow the installation requirements and use a compatible system.

10.24kWh Energy Storage

With a 51.2V nominal voltage and 200Ah capacity, the battery provides 10.24kWh nominal energy. This capacity can support compatible solar backup and energy-storage applications.

However, the energy available to connected appliances may be lower than the nominal capacity. Battery settings, discharge limits, inverter efficiency, temperature and system configuration all influence usable energy.

High Charge and Discharge Capability

The battery supports a maximum continuous charge current of 200A and a maximum continuous discharge current of 200A. Its peak charge current reaches 210A for 1 second, while its peak discharge current reaches 210A for 3 seconds.

The connected inverter must also support the required current. Therefore, check both devices’ electrical ratings before finalising the system design.

Parallel Battery Expansion

The itel IPL-51200H supports up to 32 parallel units. It also supports automatic primary and secondary unit assignment and automatic parallel addressing.

This arrangement can help expand energy storage when a single battery does not provide sufficient capacity. Nevertheless, the inverter, wiring, protection equipment and battery configuration must all support the planned parallel installation.

Best Applications for the itel Lithium Battery

The itel lithium battery can suit the following applications when the complete system meets its requirements:

• Home solar backup systems
• Hybrid solar energy storage
• Load-shedding backup applications
• Commercial energy-storage systems
• Compatible 51.2V low-voltage battery systems
• Installations requiring parallel battery expansion
• Systems that support CAN 2.0 or RS485 communication

The correct application depends on the connected load, inverter compatibility and required backup duration.

When to Check Compatibility Carefully

Before purchasing the battery, check the system requirements carefully if:

• The inverter requires a different battery voltage architecture.
• The inverter does not support the required BMS communication.
• The connected load exceeds the battery’s or inverter’s operating limits.
• The installation environment falls outside the specified temperature or humidity ranges.
• The installation requires a higher ingress-protection rating than IP20.

In particular, IP20 protection does not make the battery weatherproof. Install it in a suitable protected environment rather than exposing it directly to outdoor weather.

Battery Capacity: kWh, Ah and Usable Energy Explained

Ampere-hours (Ah) measure electrical capacity, while kilowatt-hours (kWh) measure energy capacity. Both values help buyers understand a battery’s storage capability.

For the IPL-51200H, the nominal energy calculation is:

51.2V × 200Ah ÷ 1,000 = 10.24kWh

The battery therefore provides 10.24kWh nominal energy. However, usable energy depends on the battery settings, discharge limits, inverter efficiency and operating conditions.

The recommended depth of discharge is 90%. For an accurate system estimate, consider the configured discharge limit and the energy required by the connected appliances.

Battery Chemistry and Cycle Life

The itel lithium battery IPL-51200H uses LiFePO4 chemistry with Class-A battery cells. Its battery-cell cycle rating exceeds 6,000 cycles under the stated laboratory test conditions.

These conditions include 25°C, a 0.5C charge/discharge rate, 80% depth of discharge and 70% end-of-life capacity. Actual service life can differ because of operating temperature, charging and discharging patterns, system configuration and usage.

For this reason, consider the cycle rating alongside the intended application and operating environment.

Battery Management System and Safety Features

The integrated BMS manages important battery protection functions. The IPL-51200H includes:

• Voltage protection
• Current protection
• Temperature protection
• Short-circuit protection
• Circuit breaker
• Intelligent BMS
• Multiple safety protection algorithms

The battery also uses natural cooling and a metal casing. Correct installation and inverter compatibility remain important for dependable system operation.

Charging and Discharging Performance

The main charging and discharging ratings are:

• Maximum continuous charge current: 200A
• Peak charge current: 210A for 1 second
• Maximum continuous discharge current: 200A
• Peak discharge current: 210A for 3 seconds
• Operating voltage range: 43.2V–57.6V

When pairing this battery with a hybrid inverter, compare these ratings with the inverter’s battery-current limits. The inverter may restrict overall charging or discharging performance, even when the battery supports a higher current.

Inverter Compatibility

The itel lithium battery IPL-51200H supports CAN 2.0 and RS485 communication for compatible inverter systems. It also supports self-adaptive communication with mainstream inverters. However, compatibility must be checked for the specific inverter model.

Before installation, confirm the following:

• Battery voltage compatibility
• Inverter charging-current limit
• Inverter discharging-current limit
• CAN/RS485 communication support
• BMS communication configuration
• Compatible communication cable and connection arrangement

Hajvery Solar Energy is an itel authorized dealer. Buyers can request assistance with battery-to-inverter compatibility checks before selecting the battery for a solar system.

Parallel Expansion

The IPL-51200H supports up to 32 parallel battery units, with automatic primary and secondary unit assignment and automatic parallel addressing.

Parallel expansion can increase total storage capacity when one battery is not sufficient. However, the complete installation must follow the inverter’s supported battery configuration and communication requirements. Installers should also consider wiring, electrical protection and the maximum supported parallel capacity.

Technical Specifications

Estimated Backup Time

The backup time of the itel lithium battery depends on the connected load and the amount of energy available for use. Inverter efficiency, battery settings, temperature and the overall system configuration also affect runtime.

For example, a 500W load uses energy at a much lower rate than a 5kW load. Consequently, the same 10.24kWh battery can provide different backup durations in different installations.

To estimate backup time for your system, calculate the connected load and account for usable battery energy and inverter efficiency. A suitable estimate should reflect the actual appliances and operating conditions rather than battery capacity alone.

Lithium Battery Use in Pakistan

The itel 51.2V 200Ah battery can be considered for compatible solar energy-storage systems in Pakistan. It can store energy for later use and support backup applications during grid interruptions.

Because installation conditions vary, pay attention to temperature limits and the battery’s operating environment. The listed charging temperature range is 0°C to +60°C, while the discharging range is -20°C to +60°C. The recommended operating temperature range is 15°C to +35°C.

Furthermore, the battery’s IP20 rating means installers should choose a suitable protected location. Do not treat the unit as an outdoor weatherproof enclosure.

itel Lithium Battery Price in Pakistan

The itel 51.2V 200Ah lithium battery provides 10.24kWh nominal energy in a LiFePO4 configuration. Buyers should check that the battery’s voltage, capacity and communication features suit their intended solar-storage system.

The current price of the itel IPL-51200H Lithium Battery in Pakistan is Rs. 415,000.

Before purchasing, confirm the exact model, inverter compatibility and applicable warranty details. These checks help you assess whether the battery meets your system requirements.

Hajvery Compatibility and Authenticity Check

Hajvery Solar Energy is an itel Official Distributor. Buyers can request assistance with checking the exact IPL-51200H model, battery voltage, inverter communication and applicable warranty details.

As an authorized itel dealer, Hajvery Solar Energy can help customers review whether the battery suits their intended system. Buyers should also check the product serial number and warranty details during the purchasing process.

For additional information, visit the itel Official Website.

Warranty and After-Sales Support

The itel IPL-51200H comes with a 5-year warranty. Confirm the applicable coverage terms and claim requirements with Hajvery Solar Energy at the time of purchase.

Buying through Hajvery Solar Energy, an authorized itel dealer, gives customers a point of contact for product and warranty enquiries. Keep the purchase record and product serial information for future reference.

Before You Buy

Before ordering the itel 51.2V 200Ah Lithium Battery, complete these checks:

• Confirm that your inverter supports a 51.2V battery architecture.
• Check whether the inverter supports CAN/RS485 BMS communication.
• Compare the battery’s current ratings with the inverter’s limits.
• Estimate the connected load and required backup duration.
• Confirm whether one battery provides sufficient storage capacity.
• For multiple batteries, check the inverter’s supported parallel configuration.
• Choose an installation location suitable for the battery’s IP20 protection rating.
• Confirm warranty coverage and serial information before purchase.

Frequently Asked Questions

What is the capacity of the itel IPL-51200H battery?

The battery has a 200Ah capacity, 51.2V nominal voltage and 10.24kWh nominal energy.

Is the itel IPL-51200H a LiFePO4 battery?

Yes. The battery uses LiFePO4 chemistry and Class-A LiFePO4 battery cells.

What is the itel lithium battery price in Pakistan?

The current price of the itel IPL-51200H Lithium Battery in Pakistan is Rs. 415,000.

How many batteries can be connected in parallel?

The IPL-51200H supports up to 32 parallel units, provided the complete system supports the required configuration.

Does the battery support CAN and RS485?

Yes. The battery supports CAN 2.0 and RS485 communication for compatible inverter systems.

What is the cycle life of this itel lithium battery?

The battery-cell cycle rating exceeds 6,000 cycles under the stated test conditions of 25°C, 0.5C charge/discharge, 80% depth of discharge and 70% end-of-life capacity.

What warranty does the itel IPL-51200H have?

The battery comes with a 5-year warranty. Confirm the applicable coverage terms and claim requirements before purchase.

Is the itel lithium battery compatible with every inverter?

No. Compatibility depends on the inverter’s battery voltage range, charging and discharging limits, BMS communication and supported configuration. Check these requirements before installation.

Buy itel 10.24kWh 51.2V 200Ah Lithium Battery from Hajvery Solar Energy

The itel IPL-51200H is a 51.2V, 200Ah LiFePO4 battery designed for compatible solar energy-storage and backup applications. Hajvery Solar Energy can assist with battery-to-inverter compatibility enquiries, product verification and warranty guidance.

Hajvery Solar Energy is the Official itel Distributor. Contact the team to discuss whether this battery matches your intended solar system.

To explore more options, visit the itel Lithium Batteries in Pakistan category.
