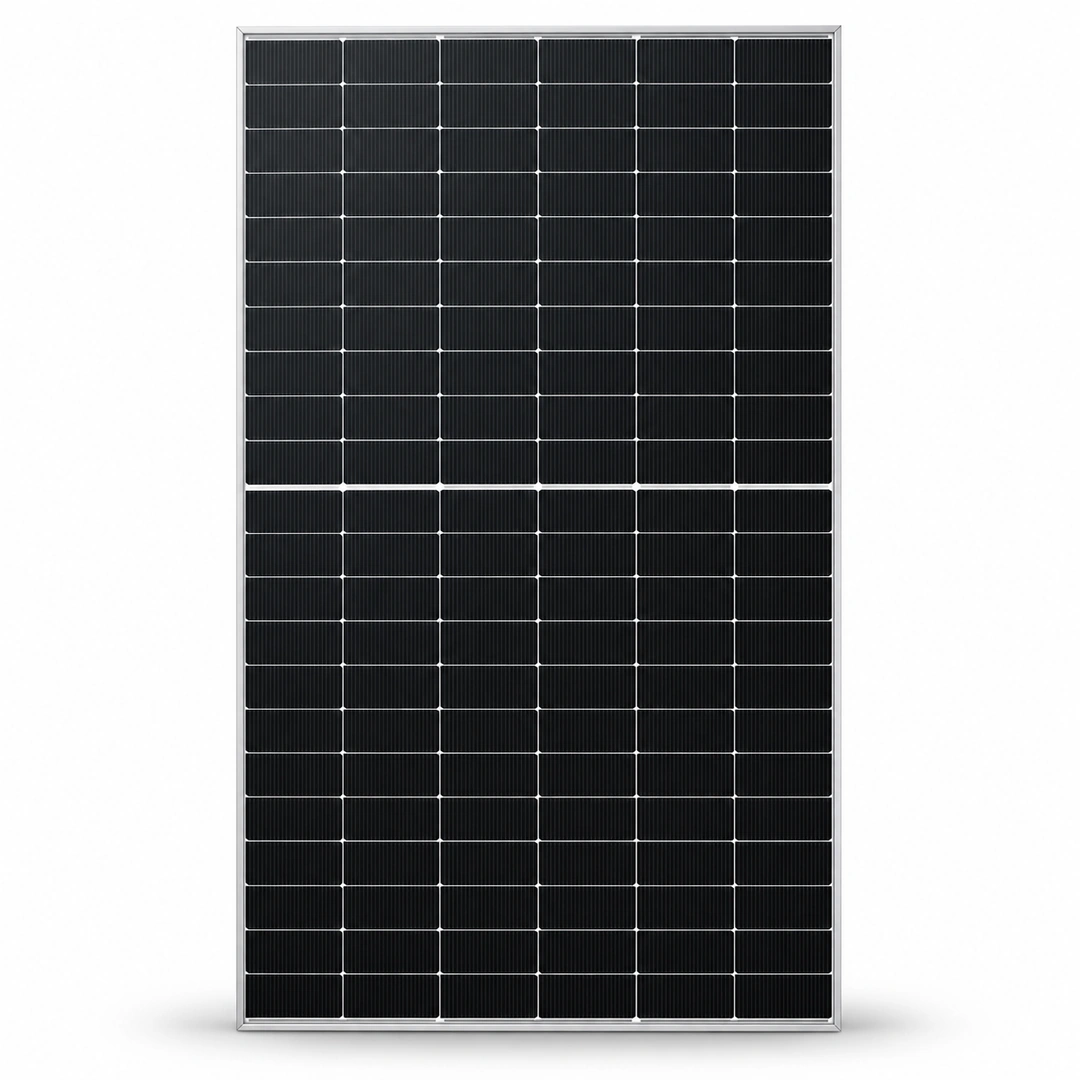

Jinko 615W Bifacial Solar Panel

Jinko 615W Bifacial Solar Panel Overview

The Jinko 615W Bifacial Solar Panel suits solar installations where high module output, long-term power performance and two-sided energy generation matter. Its N-Type TOPCon cell technology helps reduce light-induced degradation, while its bifacial design uses light that reaches the rear surface of the module. Therefore, before buying, check the Jinko 615W solar panel price in Pakistan along with its efficiency, dimensions, electrical specifications and warranty.

This Jinko 615W solar panel delivers a rated power output of 615 watts under standard test conditions and offers a module efficiency of 22.00%. Moreover, its high output and large module format can help solar installers plan systems with fewer panels than some lower-wattage options, depending on the project’s total capacity and available installation space.

The panel features dual-glass construction, an anti-reflective front surface and heat-strengthened rear glass. In addition, its aluminium alloy frame and IP68-rated junction box contribute to the module’s construction and electrical protection.

When comparing the Jinko 615W bifacial solar panel price in Pakistan, consider the panel’s rated output, electrical characteristics, installation dimensions, warranty coverage and compatibility with your selected inverter.

Key Features and Benefits

N-Type TOPCon Technology

The module uses N-Type monocrystalline cells with TOPCon technology. This cell architecture helps reduce light-induced degradation and light- and elevated-temperature-induced degradation compared with technologies that experience these effects more strongly. Consequently, lower degradation supports long-term power retention.

For more technical information and specifications, visit the link below:

Jinko Solar Panel Official Website.

For customers planning a solar system for many years, initial wattage represents only one part of the decision. Therefore, consider long-term power performance and correct system design as well.

Bifacial Energy Generation

A bifacial solar panel receives sunlight on both its front and rear surfaces. However, the amount of additional electricity it generates from the rear depends on the installation environment, ground reflectivity, panel elevation, mounting structure, shading and rear-side exposure.

For example, a suitable ground-mounted or elevated installation may allow the rear surface to contribute additional energy. Nevertheless, the extra generation is not a fixed percentage, so buyers should not treat it as guaranteed output.

Dual-Glass Construction

The module features 2.0 mm anti-reflective front glass and 2.0 mm heat-strengthened rear glass. This construction benefits projects where the mechanical design and protection of both module surfaces matter.

Furthermore, the anodized aluminium alloy frame provides structural support, while the IP68-rated junction box protects against dust and water ingress under its applicable rating conditions.

HOT 2.0 and SMBB Technology

The panel incorporates HOT 2.0 technology and SMBB technology. These design features contribute to the module’s reliability, light trapping and current collection.

However, actual energy production still depends on sunlight, module temperature, shading, dust, orientation, tilt and the performance of the complete solar system.

High Power Output

With 615W rated power, this module suits installations that favour higher-output panels. Before finalising the panel layout, string configuration and inverter selection, check the module’s physical dimensions and electrical values.

Best For

The Jinko 615W Bifacial Solar Panel can suit the following applications:

• Commercial solar installations that require high-output modules.
• Industrial solar projects with suitable mounting space and electrical design.
• Residential solar systems where the roof can accommodate the panel’s dimensions and weight.
• Ground-mounted solar arrays that provide useful rear-side light exposure.
• Solar installers and dealers looking for N-Type bifacial modules.
• Long-term solar projects where degradation and warranty coverage influence purchasing decisions.

When Another Panel May Be Better

This panel may not suit every installation. Therefore, consider these factors before ordering:

• A smaller module may prove easier to install where roof space, access routes or mounting dimensions are restricted.
• A different wattage may match the inverter’s voltage, current or string requirements more appropriately.
• A bifacial module may generate limited additional energy from the rear when installed close to an opaque surface or where heavy shading affects the rear side.
• The mounting structure must support the module’s dimensions and 34 kg weight.
• Do not select a panel on wattage alone. Instead, check the inverter input current, string voltage and maximum system limits.

Cell and Module Technology

The Jinko 615W N-Type bifacial solar panel uses monocrystalline cells with TOPCon technology and a bifacial dual-glass design. The module contains 156 cells arranged as 78 × 2.

The front surface captures direct sunlight, while the rear surface can contribute additional energy when suitable reflected or ambient light reaches it. Furthermore, the module has a reference bifacial factor of 80 ± 5%. However, this figure does not guarantee an 80% increase in total energy production.

Its 22.00% module efficiency describes how effectively the panel converts incident solar energy into electrical power under standard test conditions. In practice, installation and operating conditions affect field performance.

Technical Specifications

Electrical Performance Under NOCT Conditions

Standard test condition (STC) values use 1000 W/m² irradiance, 25°C cell temperature and AM 1.5. In contrast, NOCT values use different test conditions. Therefore, do not compare these two sets of electrical values as if they were measured under identical conditions.

Performance and Degradation

The panel has a 12-year product warranty and a 30-year linear power warranty. Its power warranty profile includes 1% first-year degradation and 0.4% annual degradation over the following period. In addition, the profile shows 87.4% warranted output at year 30.

These warranty figures describe the specified power-retention profile. However, they do not guarantee identical annual electricity production because sunlight, temperature, shading, cleaning, orientation and overall system design affect actual output.

The temperature coefficient of Pmax is -0.29%/°C. This means module power decreases as cell temperature rises above the reference temperature, all else being equal. Therefore, proper mounting ventilation and suitable installation design can help manage operating temperature.

Performance Considerations for Pakistan

Solar installations in Pakistan can experience high summer temperatures, dust accumulation and changing sunlight conditions. Consequently, correct panel placement and regular maintenance play an important role in keeping the system operating effectively.

• Heat management: Leave suitable ventilation space beneath the modules according to the mounting design.
• Dust and cleaning: Accumulated dust can reduce output. Therefore, clean the panel using appropriate methods and follow safe maintenance procedures.
• Bifacial installation: Rear-side clearance and the reflectivity of the surface below the panel affect additional generation.
• String design: Consider the panel’s Voc, Vmp, Isc and Imp when choosing the inverter and calculating the string configuration.
• Mechanical support: Ensure the structure supports the panel’s dimensions, weight and applicable wind and environmental loads.

Most importantly, do not finalise the number of panels in a string using wattage alone. The installer should check the inverter’s voltage and current limits, including cold-weather voltage calculations where applicable.

Jinko 615W Solar Panel Price in Pakistan

The Jinko 615w solar panel price in pakistan is Rs. 23,739 per panel at Hajvery Solar Energy.

This price covers one panel. However, the final purchasing decision should also consider quantity, delivery arrangements, installation requirements and current availability. If you are planning a larger project, contact Hajvery Solar Energy for a quotation based on your requirements.

For buyers searching for jinko 615w bifacial solar panel price in pakistan, reviewing the rated power, electrical specifications, module dimensions and warranty coverage alongside the selling price can help support an informed decision.

Tier 1, A-Grade and Product Authenticity

When choosing a solar module, verify the exact product identity, serial information, physical condition and applicable warranty. Remember that a product’s wattage or brand name alone does not establish its condition or authenticity.

Use the term A-Grade only when someone has verified the actual product condition. Similarly, support a Tier 1 claim with relevant, current evidence rather than assuming it from the brand name.

Before ordering, confirm that the delivered panel matches the agreed model and rated power. Also, keep the purchase invoice and applicable warranty information for future reference.

Hajvery Solar Product Verification

Hajvery Solar Energy helps buyers make informed solar purchasing decisions by checking product identity and discussing installation requirements. Before purchasing the Jinko 615W Bifacial Solar Panel, confirm the following:

• The exact panel model and 615W rated output.
• The physical condition and serial information of the supplied product.
• The applicable product and performance warranty.
• Compatibility with the selected inverter and solar system.
• Delivery arrangements and the required quantity.

For installations in Lahore and other parts of Pakistan, correct electrical design and suitable mounting remain essential for reliable system operation.

You can also verify your Jinko Solar Panel at Hajvery Solar Energy through the following product verification link.

Panel Verification Link: Jinko Solar Panel Verification

Warranty

The Jinko 615W Bifacial Solar Panel comes with a 12-year product warranty and a 30-year linear power warranty. These warranties cover different aspects of the module, so do not treat them as interchangeable.

The linear power warranty describes the warranted retention of module output over time. However, warranty claims remain subject to the applicable terms and conditions. Before purchasing, confirm the relevant claim procedure and coverage requirements with the seller. Also, retain the purchase documentation for future reference.

Frequently Asked Questions

1. What is the Jinko 615W solar panel price in Pakistan?

The current price of the Jinko 615W Bifacial Solar Panel in Pakistan is Rs. 23,739 per panel. However, contact Hajvery Solar Energy to confirm current availability and order quantity.

2. Is the Jinko 615W Bifacial Solar Panel an N-Type panel?

Yes. It uses N-Type monocrystalline cells with TOPCon technology.

3. How do Jinko bifacial solar panels work?

Bifacial panels generate electricity from their front and rear surfaces. However, additional rear-side generation depends on light exposure, surface reflectivity, mounting height and shading.

4. What is the efficiency of the Jinko 615W panel?

The module efficiency is 22.00% under standard test conditions.

5. What are the dimensions of the Jinko 615W panel?

The panel measures 2465 × 1134 × 30 mm and weighs 34 kg. Therefore, ensure the mounting structure has sufficient space and load capacity.

6. What warranty comes with the Jinko 615W Bifacial Solar Panel?

It has a 12-year product warranty and a 30-year linear power warranty. Before purchasing, check the applicable terms and claim requirements.

7. Is the Jinko 615W panel suitable for a home solar system?

It can suit a residential installation if the available space, mounting structure, inverter limits and string configuration meet the system requirements. Therefore, ask an installer to verify the electrical design before installation.

8. Where can I find Jinko 615W Bifacial Solar Panel specifications?

Review the technical specifications above, including rated power, voltage, current, dimensions and warranty details. If you are searching for jinko 615w bifacial datasheet pdf download, contact Hajvery Solar Energy to request the relevant technical information.

Buy Jinko 615W Bifacial Solar Panel from Hajvery Solar Energy

Looking for a Jinko 615W Bifacial Solar Panel in Pakistan? Hajvery Solar Energy serves solar buyers, installers and dealers from its store at 280K Block J-1, Johar Town, Lahore.

Contact the team to discuss product availability, order quantities and solar system compatibility before purchasing. You can also confirm nationwide delivery arrangements when placing an order.

Ultimately, choose solar panels based on verified specifications, correct system design and applicable warranty coverage—not wattage alone.
