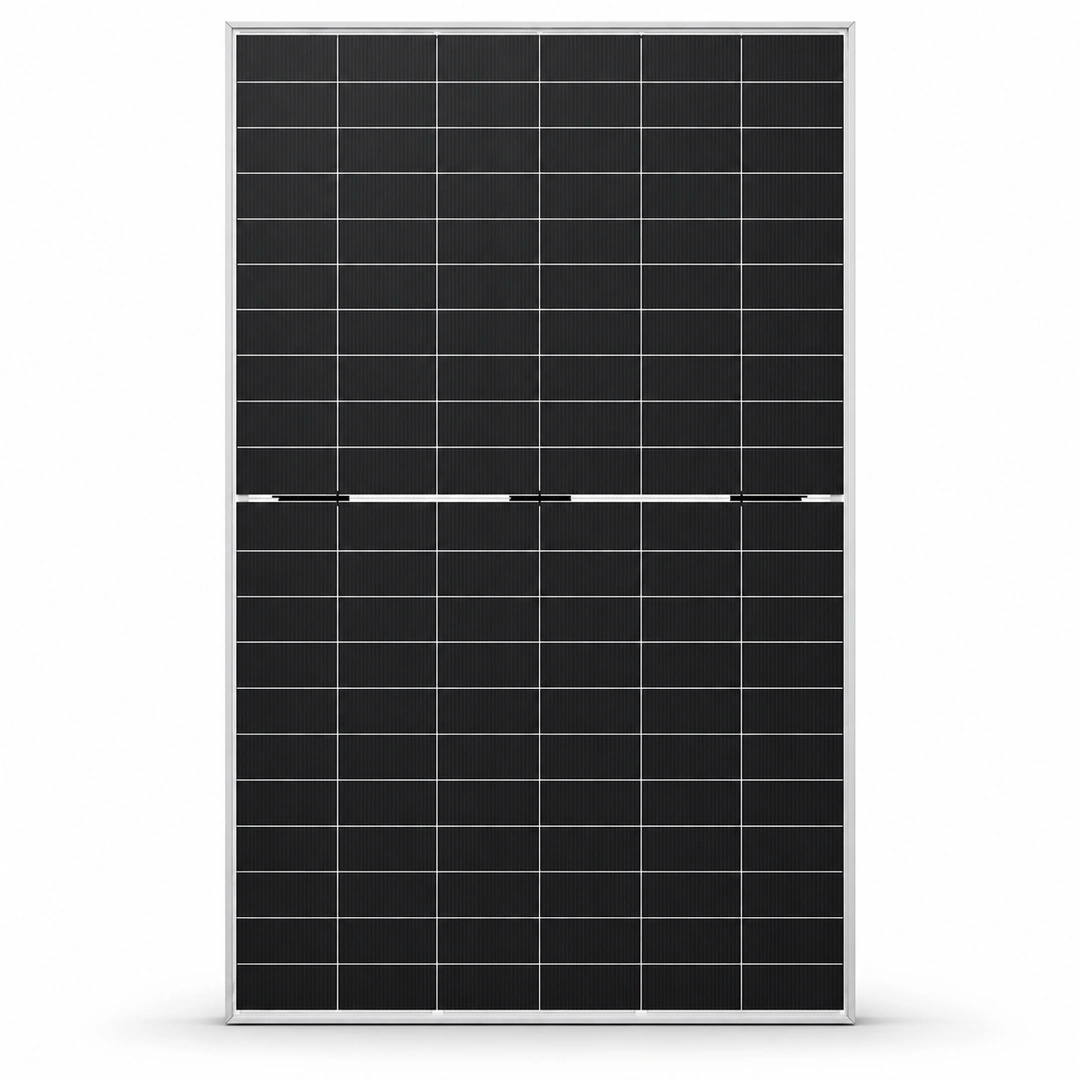

Jinko 715W Bifacial Solar Panel

Jinko 715W Bifacial Solar Panel Overview

The Jinko 715W Bifacial Solar Panel is designed for solar projects that require high module output and efficient use of installation space. It belongs to Jinko Solar’s Tiger Neo range and uses N-Type TOPCon cell technology with HOT 3.0 technology. Check the Jinko 715w solar panel price in pakistan and confirm the panel’s compatibility with your system design.

Its bifacial design allows the panel to generate electricity from direct sunlight on the front and reflected light reaching the rear side. The amount of additional rear-side generation depends on factors such as mounting height, ground reflectivity, row spacing and shading.

The dual-glass construction combines a 2.0 mm front glass with 2.0 mm heat-strengthened rear glass. Its N-Type cell technology is designed to reduce light-induced degradation and improve low-light performance.

For solar installers, commercial property owners and large-system buyers in Pakistan, this panel offers a combination of high rated output, bifacial generation and a long power warranty. Proper string design and installation remain essential to achieving reliable system performance.

Key Features and Benefits

N-Type TOPCon Cell Technology

The panel uses N-Type monocrystalline TOPCon cells. This technology helps reduce light-induced degradation and light- and elevated-temperature-induced degradation compared with relevant conventional cell designs. Better low-light performance can also support energy production when sunlight is less intense.

Bifacial Power Generation

The bifacial solar panel captures sunlight on both sides. Rear-side generation can improve total energy yield when the panel is installed above a suitable reflective surface with adequate clearance. The additional output is not fixed and should not be treated as a guaranteed percentage.

High Module Efficiency

With 23.02% module efficiency, the 715W panel converts a substantial portion of the sunlight reaching its active surface into electricity under standard test conditions. High-efficiency modules can help reduce the number of panels required for a target DC capacity, subject to system design.

HOT 3.0 Technology

Jinko’s HOT 3.0 technology is designed to improve module reliability and efficiency. Combined with N-Type cell technology, it supports the panel’s focus on long-term energy generation.

Dual-Glass Construction

The panel uses 2.0 mm anti-reflective front glass and 2.0 mm heat-strengthened rear glass. This construction is suited to bifacial applications where both sides of the module contribute to energy generation.

Enhanced Mechanical Load Resistance

The module is certified for a maximum static test load of 5400 Pa on the front side and 2400 Pa on the rear side. These test ratings do not replace the need for correct mounting, suitable clamps and compliance with installation requirements.

Anti-PID Protection

The panel incorporates technology intended to minimise degradation associated with potential-induced degradation (PID). Correct system design, earthing and installation practices remain important.

Best For

The Jinko 715W Bifacial Solar Panel can be considered for:

• Commercial solar installations requiring high-output modules.
• Industrial solar systems with suitable mounting space and electrical design.
• Ground-mounted solar projects where the rear side can receive reflected sunlight.
• Large rooftop installations where the module dimensions and weight are suitable.
• Solar installers and EPC contractors designing high-capacity PV systems.
• Projects seeking long-term power performance with a 30-year linear power warranty.

When Another Solar Panel May Be Better

This panel may not be the most suitable choice for every installation.

• Small roofs or structures with limited space for handling large modules may require a different physical format.
• Existing systems with restricted inverter input current must be checked carefully before using this high-output module.
• Installations with little rear-side light exposure may not gain the full benefit of bifacial generation.
• Projects with strict weight limitations must account for the module’s 37.5 kg weight.
• Systems with lower DC voltage limits or incompatible string configurations require a different module selection or revised design.

Cell and Module Technology

The Jinko 715W N-Type Bifacial Solar Panel combines monocrystalline N-Type cells with TOPCon technology. Its cell structure is designed to improve charge collection and reduce degradation-related losses.

The bifacial construction allows light to reach the rear side of the module. For ground-mounted systems, the surface beneath the panels and the spacing between rows can influence how much reflected light reaches the rear glass.

The module contains 132 half-cell positions arranged as 66 × 2. Its large format supports high rated output, but the installer must consider transport, handling, mounting and wind-loading requirements before installation.

Technical Specifications

Performance and Degradation

Long-term power performance is an important factor when selecting a solar module. The Jinko 715W panel has a stated first-year degradation figure of 1% and annual degradation of 0.40% over the following performance period.

The published linear power warranty indicates 87.4% power retention at year 30. This is a warranty-related performance figure, not a guarantee of the electricity a complete solar system will produce each year.

The panel’s -0.29%/°C power temperature coefficient indicates that its output decreases as cell temperature rises above the standard reference temperature, all else being equal. Adequate mounting ventilation and a suitable installation layout can help manage module operating temperature.

Actual energy generation depends on solar irradiance, temperature, dust, shading, orientation, tilt, inverter performance and other site conditions.

Performance Considerations for Pakistan

Pakistan’s high summer temperatures, dust and changing weather make proper module selection and installation important.

• Temperature management: Provide suitable ventilation beneath rooftop-mounted modules to limit excessive heat accumulation.
• Dust and cleaning: Dust can reduce energy production. Establish a safe cleaning routine based on local conditions.
• Bifacial installation: Maintain appropriate rear clearance and avoid unnecessary shading or obstruction behind the panel.
• Electrical design: Calculate string voltage using the panel’s open-circuit voltage and the lowest expected design temperature. Check inverter operating voltage and current limits.
• Mounting and safety: Use an appropriate mounting structure and follow installation requirements for wind loads, clamping positions, earthing and electrical protection.

The panel’s maximum system voltage of 1500V DC is a module rating, not a recommendation to operate every installation at that voltage. The final string configuration must comply with the inverter and system limits.

Jinko 715W Solar Panel Price in Pakistan

The Jinko 715w solar panel price in pakistan is an important consideration for buyers planning a residential, commercial or industrial solar installation.

The current price of the Jinko 715W Bifacial Solar Panel in Pakistan is Rs. 29,672.50 per panel.

The final project cost depends on the number of panels, mounting structure, inverter selection, cables, protection equipment, installation work and other system components. A panel price alone does not represent the total cost of a complete solar system.

Customers, installers and commercial buyers can contact Hajvery Solar Energy to confirm current availability and quantity-based pricing before placing an order.

Tier 1, A-Grade and Product Authenticity

When purchasing a high-wattage solar panel, buyers should verify the exact model, product condition and applicable warranty rather than relying on wattage alone.

Before ordering, check the product label, serial number and model identification. Confirm that the supplied panel matches the specifications required for the project. Any A-grade or stock-condition claim should be verified against the actual product being supplied.

Buyers comparing Jinko bifacial solar panels should also consider efficiency, dimensions, electrical characteristics, bifacial installation conditions and warranty coverage.

Hajvery Solar Product Verification

Hajvery Solar Energy helps buyers identify the correct solar panel for their project requirements. Before purchasing the Jinko 715W Bifacial Solar Panel, confirm:

• Exact model and rated wattage.
• Product condition and serial identification.
• Applicable product and performance warranty.
• Compatibility with the selected inverter.
• String voltage and current limits.
• Installation structure and mounting requirements.
• Current availability and delivery arrangements.

These checks help reduce the risk of selecting a module that does not match the planned solar system.

You can also verify your Jinko Solar Panel through Hajvery Solar Energy’s product verification link below.

Panel Verification Link:
Jinko Solar Panel Verification

Warranty

The Jinko 715W Bifacial Solar Panel comes with a 12-year product warranty and a 30-year linear power warranty.

The product warranty and linear power warranty cover different aspects of the module and should not be treated as interchangeable. The linear power warranty concerns the panel’s warranted power-retention performance over time.

Buyers should confirm the applicable warranty terms, claim procedure and coverage conditions before ordering. Correct installation and compliance with the relevant warranty requirements are important.

Before You Buy

Review the following points before purchasing the Jinko 715W Bifacial Solar Panel:

• Inverter compatibility: Check maximum PV voltage, MPPT operating range and current limits.
• String design: Calculate the number of modules per string using temperature-adjusted voltage and the inverter’s electrical limits.
• Roof or mounting capacity: Account for the panel’s dimensions and weight.
• Bifacial performance: Assess the mounting height, rear clearance and reflectivity of the surface beneath the modules.
• System voltage: Ensure that the complete array remains within the applicable inverter and system ratings.
• Warranty: Confirm the product and linear power warranty terms.
• Product identification: Verify the exact model and serial information before installation.

Frequently Asked Questions

1. What is the Jinko 715W solar panel price in Pakistan?

The current price of the Jinko 715W Bifacial Solar Panel in Pakistan is Rs. 29,672.50 per panel. Contact Hajvery Solar Energy to confirm current availability and quantity-based pricing.

2. Is the Jinko 715W panel a bifacial solar panel?

Yes. It is a bifacial, dual-glass solar panel that can generate electricity from the front and rear sides when sufficient light reaches both surfaces.

3. What is the efficiency of the Jinko 715W solar panel?

The module has a rated efficiency of 23.02% under standard test conditions.

4. What are the dimensions of the Jinko 715W panel?

Its dimensions are 2384 × 1303 × 33 mm, and it weighs 37.5 kg. Confirm that the available roof or mounting structure can accommodate its size and weight.

5. What is the voltage of the Jinko 715W solar panel?

Its maximum power voltage (Vmp) is 40.77V, while its open-circuit voltage (Voc) is 48.88V under standard test conditions. Actual operating voltage varies with temperature and sunlight conditions.

6. What warranty does the Jinko 715W Bifacial Solar Panel have?

It has a 12-year product warranty and a 30-year linear power warranty. Applicable terms and claim requirements should be confirmed before purchase.

7. Is the Jinko 715W panel suitable for residential solar systems?

It can be used in a residential system if the roof space, mounting structure, inverter electrical limits and string design are suitable. Its large dimensions and weight should be considered before installation.

8. Does the rear side of the Jinko 715W panel generate additional power?

Yes. Its bifacial design allows rear-side power generation when reflected or indirect light reaches the rear surface. The additional energy depends on installation conditions and is not a fixed guaranteed output.

Buy Jinko 715W Bifacial Solar Panel from Hajvery Solar Energy

Choose the Jinko 715W Bifacial Solar Panel for projects requiring high module output, N-Type TOPCon technology and dual-sided energy generation.

Hajvery Solar Energy serves customers, solar installers and commercial buyers from 280K Block J-1, Johar Town, Lahore. Contact the team to confirm current availability, product details and delivery arrangements.
