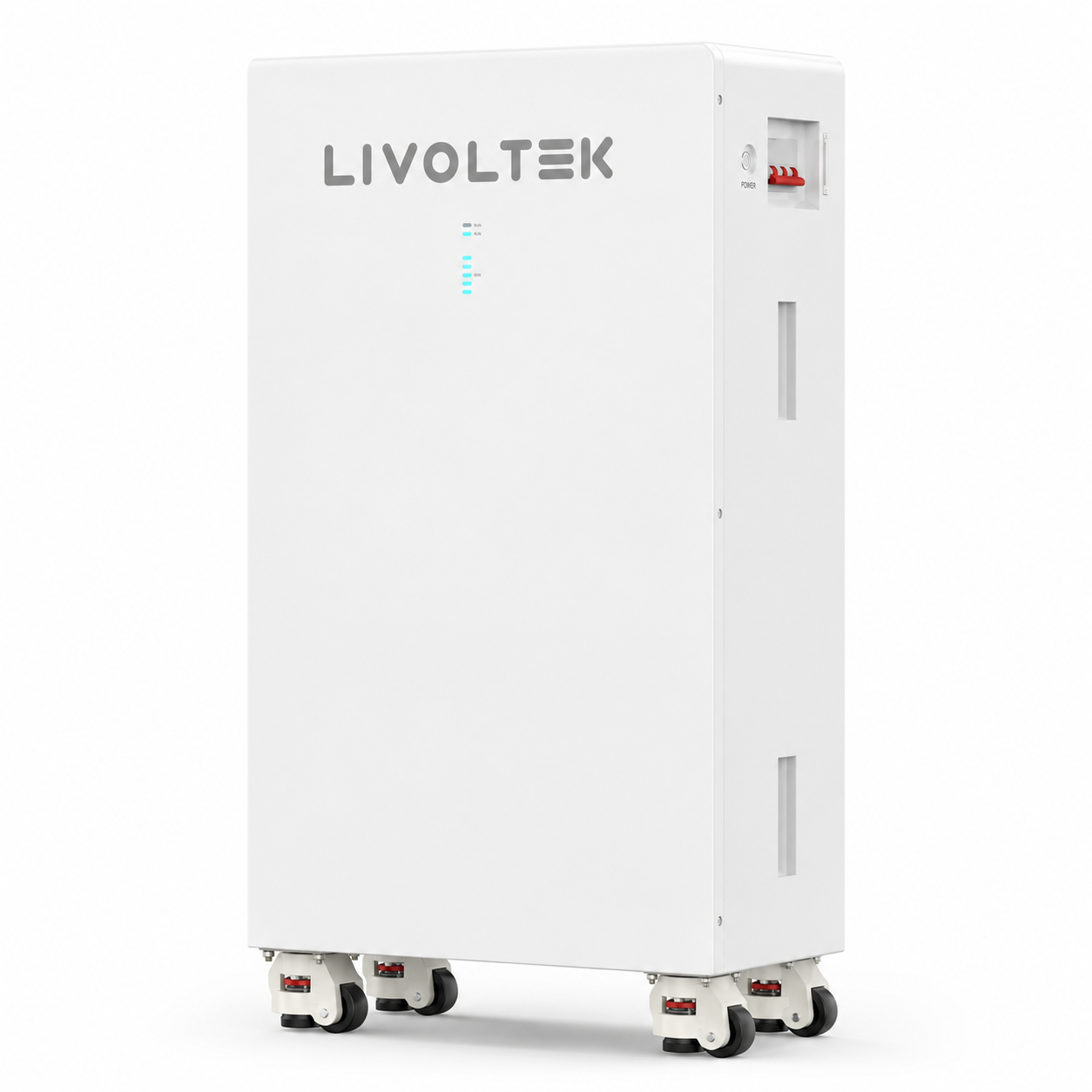

Livoltek 16KWh 51.2V 314Ah Lithium Battery Overview

The Livoltek HomCellar-16kWh-E1 is a 16kWh low-voltage residential battery designed to store solar energy for use when solar generation is unavailable. Its 51.2V nominal voltage and 314Ah capacity make it suitable for larger residential energy-storage requirements where more stored energy is needed.

The battery uses iron phosphate lithium technology and includes an intelligent Battery Management System (BMS) for controlled and reliable operation. It also supports CAN and RS485 communication, allowing communication with compatible energy-storage equipment.

For homeowners looking for a Livoltek lithium battery for solar backup, the HomCellar-16kWh-E1 provides a substantial energy-storage capacity while maintaining a relatively compact floor-standing form factor.

Key Features and Buyer Benefits

16kWh Energy Storage Capacity

With 16kWh nominal energy, this battery provides a large energy-storage capacity for residential solar systems. The stored energy can be used for backup loads and for increasing the use of solar energy generated during the day.

51.2V Low-Voltage Architecture

The battery operates at a 51.2V nominal voltage, placing it in the low-voltage residential battery category. The nominal operating voltage range is 43.2–57.6V.

It is therefore important to carry out correct voltage and inverter compatibility checks before installation.

314Ah Battery Capacity

The battery has a 314Ah rated capacity. Ah and kWh describe different aspects of a battery: Ah represents electrical charge capacity, while kWh represents stored energy.

For buyers searching for Livoltek 51.2V 314Ah 16KWh Lithium Battery, these three specifications describe the battery’s core electrical capacity.

Iron Phosphate Lithium Battery Technology

The battery employs iron phosphate-lithium technology, a type of chemistry developed for use in energy storage. It has a specified life of 6,000 cycles under the stated test conditions.

Smart Battery Management System

A unified BMS is useful for managing the way batteries operate and enables safe and controlled energy storage. It is especially important to ensure adequate battery protection and proper communication when connecting a lithium battery to a compatible hybrid inverter.

High Charge and Discharge Current

The battery has a maximum charge and discharge current specification of 160A or 200A. When using it, the charge and discharge limits in question must always be matched to the inverter and the system design.

Expandable Energy Storage

The HomCellar-16kWh-E1 can be scaled up to include 16 units working in parallel. It is thus possible to design larger storage systems provided that the necessary equipment, the communication setup, and the installation conditions are suitable for parallel operation.

Best For

The Livoltek 16KWh battery is suitable for:

• Residential solar energy storage
• Home backup power systems
• Homes with relatively high electricity-storage requirements
• Solar self-consumption
• Selected small-business backup applications
• Systems requiring expandable battery capacity
• Off-grid or backup applications where the complete system is designed accordingly

The fact that its capacity is 16kWh means that it is better suited to people who need a great deal of energy storage rather than those who require a residential battery with a small capacity.

Not Ideal For

This battery should not be selected without further compatibility checking when:

• The inverter requires a high-voltage battery
• The inverter is not compatible with the battery’s 51.2V low-voltage system.
• The inverter cannot work with the required charge/discharge current limits
• Required BMS communication is not supported
• The installation environment does not meet the battery’s operating requirements
• The required load exceeds the practical battery and inverter limits

If you need to check about exact compatibility, you should contact Hajvery Solar and provide them with the inverter model and all of the system requirements.

Battery Capacity: kWh, Ah and Usable Energy Explained

A common mistake when comparing lithium batteries is treating Ah and kWh as the same measurement.

The 314Ah figure represents the battery’s rated electrical capacity, while 16kWh represents its nominal energy capacity. The manufacturer’s stated 16kWh nominal energy remains the primary capacity specification for this model.

The battery also has a 90% depth of discharge (DoD) specification. Actual usable energy in a complete solar system can vary with operating conditions, inverter efficiency, battery limits and system settings.

Battery Chemistry and Cycle Life

The HomCellar-16kWh-E1 uses iron phosphate-lithium battery technology and has a stated 6,000-cycle life.

The conditions under which the cycle-life test was carried out are 0.5C charging and 0.5C discharging at 25°C, with a depth of discharge of 90% and a state of end-of-life of 70%. It therefore follows that the figure of 6,000 cycles should be understood in the light of these test conditions and not regarded as a guarantee of identical real-world performance for all possible modes of operation.

Battery Management System and Safety

The integrated Battery Management System (BMS) is an important part of the battery’s operating system. It helps manage battery operation and supports controlled charging and discharging.

The battery also uses natural cooling, while its ingress protection rating is IP21.

The installation environment must be carefully chosen since the unit has an IP21 enclosure rating. It should not be assumed that this battery is suitable for direct outdoor exposure unless suitable installation arrangements have been made.

Charging and Discharging Performance

The battery has a maximum 160A / 200A charge/discharge current specification.

The way in which the system functions will depend on the inverter being used, the battery setup and the operating conditions. Before installing the system the battery-current limits of the inverter should be checked against the battery.

The operating temperature range is:

• Charging: 0°C to +55°C
• Discharging: -20°C to +55°C

The operating humidity should be between 5% and 95% RH, without condensation occurring, and the operating altitude must be below 4,000 metres.

Inverter Compatibility

The Livoltek 51.2V 314Ah 16KWh Lithium Battery should be matched with an inverter that supports its low-voltage battery architecture, voltage range, charge/discharge limits and required BMS communication.

The battery provides CAN and RS485 communication.

You should not choose an inverter simply on the basis of battery voltage; the entire system must be examined for its voltage range, current limits, communication protocol, and installation requirements.

For exact inverter matching, Hajvery Solar Energy is an authorized Livoltek authorized dealer and can help buyers confirm the appropriate compatibility requirements.

Parallel Expansion

The battery can have up to 16 units connected in parallel.

Parallel expansion is useful in the case where one 16kWh battery is not sufficient to give the required storage capacity. The entire system has to be designed taking into account the supported battery configuration, the communication requirements, the inverter’s capability and the installation conditions.

The fact that the maximum parallel capability is available does not mean that it is advisable to install multiple units without first checking system-level compatibility.

Technical Specifications

Estimated Backup Time

It is not possible to state the backup duration responsibly as a single fixed figure for this battery since the actual running time will vary according to the connected load, the usable battery energy, the efficiency of the inverter, the operating limits, the temperature, and the condition of the battery.

For instance, a house that has only a number of essential appliances will have a different backup time than one which is operating air conditioners, pumps or other high-power equipment.

For an accurate backup assessment, provide your inverter model and expected load in watts/kW to Hajvery Solar.

Livoltek Lithium Battery Use in Pakistan

A 16kWh lithium battery can be useful in Pakistan for residential solar systems where users want to store more daytime solar energy and use it during periods of low solar generation or grid unavailability.

For Pakistani installations, particular attention should be given to battery temperature, ventilation, inverter compatibility, BMS communication and correct charging/discharging settings.

The specified temperature range for charging the battery starts at 0°C, and for discharging it is given as being from -20°C to +55°C. When carrying out installation, one should adhere to the required environmental conditions rather than assuming that all locations are appropriate.

Livoltek 16KWh Price in Pakistan

The livoltek 16kwh price in pakistan depends on the current seller offer and market conditions.

The current price of Livoltek 16KWh 51.2V 314Ah Lithium Battery in Pakistan is Rs. 557,000 per unit.

For buyers searching for livoltek 16kwh price, livoltek 16kwh battery price or livoltek battery price in pakistan, Hajvery Solar can provide the latest product and availability information.

Hajvery Solar Energy is a Livoltek Official Distributor, providing customers with a direct route for product enquiries and purchasing guidance.

Hajvery Compatibility and Authenticity Check

Before purchasing the Livoltek 16KWh lithium battery, confirm the exact HomCellar-16kWh-E1 model, battery voltage requirements, inverter compatibility and BMS communication requirements.

Buyers searching for livoltek 51 2v 314ah 16kwh lithium battery specifications can use the key specifications above to identify the required battery configuration.

For questions about livoltek 51 2v 314ah 16kwh lithium battery pakistan, product availability, inverter matching or installation requirements, contact Hajvery Solar Energy.

As an Official Livoltek Distributor, Hajvery Solar can help customers with product-related purchasing and compatibility guidance.

Warranty and After-Sales Support

This battery comes with a 5-year warranty.

For warranty coverage details, claim requirements, applicable conditions and after-sales information, contact Hajvery Solar before purchase.

Hajvery Solar Energy is an authorized Livoltek dealer for this product category and can guide buyers regarding product and warranty-related enquiries.

Before You Buy

Before you buy the Livoltek 16KWh 51.2V 314Ah Lithium Battery, make sure to:

• The inverter has battery support for 51.2 volts low voltage.
• The inverter has a rated operating voltage range of 43.2 to 57.6 volts.
• Required battery charge/discharge current is compatible
• CAN or RS485 BMS communication is supported
• Your required storage capacity matches 16kWh nominal energy
• The installation location meets the battery’s environmental requirements
• Parallel expansion requirements are compatible if multiple batteries are planned
• The applicable 5-year warranty and claim requirements are understood

FAQs

What is the capacity of the Livoltek 16KWh battery?

The Livoltek HomCellar-16kWh-E1 has 16kWh nominal energy and a 314Ah rated capacity.

What is the voltage of this Livoltek lithium battery?

It has a 51.2V nominal voltage with a specified nominal voltage range of 43.2–57.6V.

Is the Livoltek 16KWh battery suitable for home solar systems?

Yes. It is a low-voltage residential battery designed for home solar energy storage, backup power and related applications.

How many batteries can be connected in parallel?

The system supports scalability of up to 16 units in parallel, subject to compatible system design and equipment requirements.

What communication does the battery support?

The battery supports CAN and RS485 communication.

What is the cycle life of the Livoltek 16KWh battery?

It has a specified 6,000-cycle life under the stated test conditions of 0.5C charge/discharge, 25°C, 90% DoD and 70% EOL.

What is the current price of the Livoltek 16KWh battery in Pakistan?

The current price is Rs. 557,000 per unit.

For the latest availability and other purchasing details, contact Hajvery Solar.

What warranty does the Livoltek 16KWh battery have?

The battery comes with a 5-year warranty. For complete warranty details and applicable conditions, contact Hajvery Solar.

Buy Livoltek 16KWh 51.2V 314Ah Lithium Battery from Hajvery Solar

The Livoltek HomCellar-16kWh-E1 is designed for users who need substantial low-voltage lithium energy storage for residential solar and backup applications.

For livoltek lithium battery, Livoltek 16KWh and related product enquiries, contact Hajvery Solar Energy for current availability, inverter compatibility and purchasing information.
