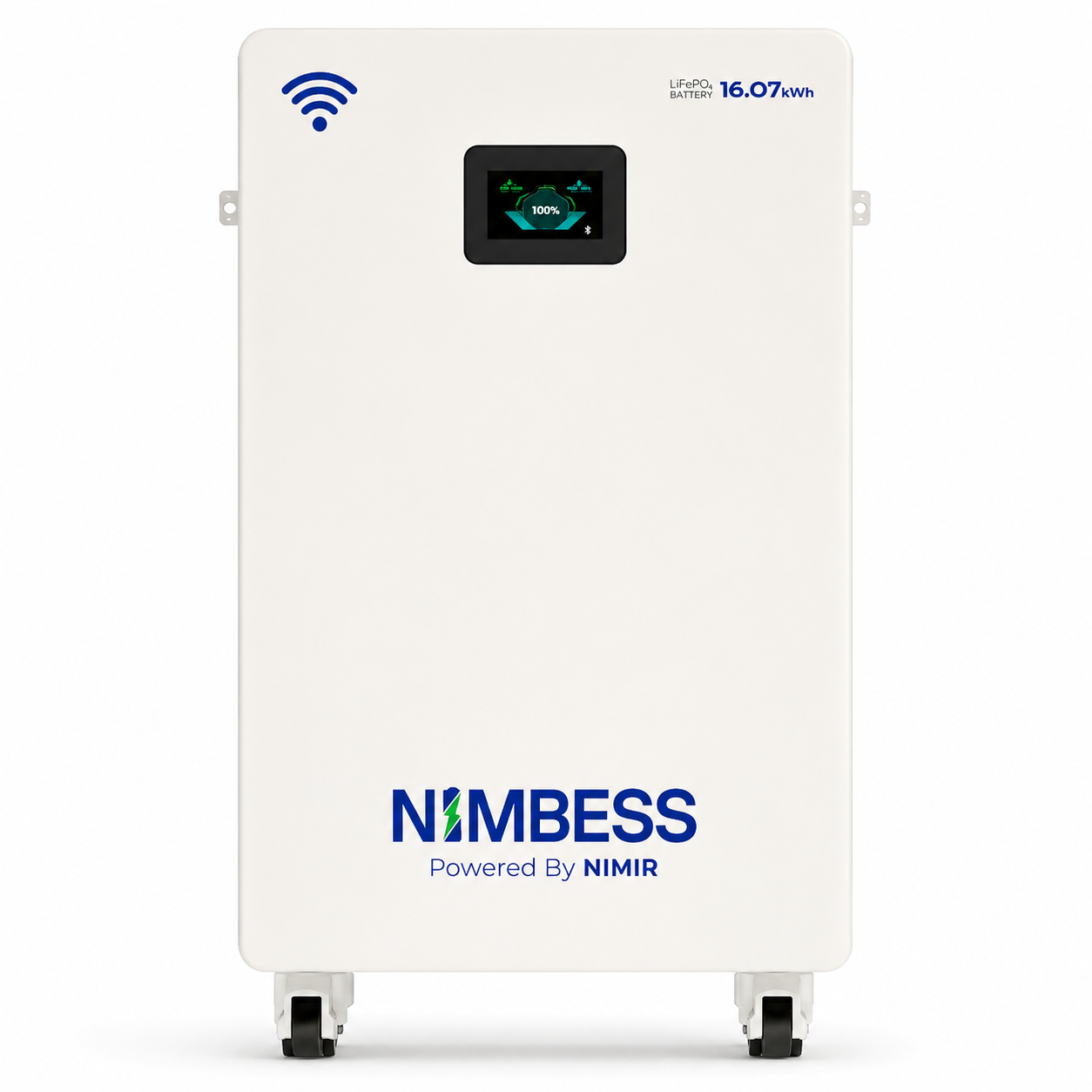

Nimbess 16.07kWh LiFePO4 Lithium Battery

For Price Updates
WhatsApp Us

Nimbess 16.07kWh LiFePO4 Lithium Battery is a powerful floor standing solar energy storage solution designed for homes, commercial backup systems, and inverter-based power setups. With 51.2V nominal voltage, 314Ah capacity, 10,000 cycle life, 80% DOD, WiFi monitoring, touchscreen control, and support for up to 16 units in parallel, it delivers reliable, safe, and long-lasting energy storage performance.

The Nimbess 16.07kWh LiFePO4 Battery is a high-capacity lithium energy storage battery designed for reliable solar backup and inverter applications. Built with advanced LFP / LiFePO4 cell technology, this battery offers excellent safety, long cycle life, and stable power performance for residential and commercial energy systems.

With a nominal voltage of 51.2V and 314Ah capacity, this battery provides strong backup support for solar systems, household loads, grid backup, and hybrid inverter setups. Its 16.07kWh nominal energy capacity makes it suitable for users who need extended backup time and dependable power storage.

The battery supports 0.6C maximum charging and discharging rate, helping deliver consistent energy flow during daily use. It also supports up to 16 units in parallel, making it flexible for larger energy storage requirements. Through RS485, USB/RS232, and CAN communication interfaces, the battery can communicate with multiple inverter brands and BMS-supported systems.

For smart monitoring, the Nimbess 16.07kWh battery includes WiFi app support, touchscreen control, and breaker function. Users can monitor battery performance remotely through WiFi cloud services, making energy management easier and more efficient.

The battery is designed for wall mounted or floor standing installation, giving flexibility according to site requirements. Its safety-focused LiFePO4 chemistry, low voltage connection, and certifications such as CE, IEC 62619, UL 1973 by Intertek, MSDS, and UN38.3 make it a dependable option for modern solar energy storage systems.

Key Features

Specification	Details
Brand	Nimbess
Product Type	Floor LiFePO4 Lithium Battery
Product Model	ES-BOX12 MAX+(LCD)
Nominal Energy	16.07kWh
Nominal Voltage	51.2V
Nominal Capacity	314Ah
Cell Type	LFP / LiFePO4
Standard Charge Voltage	56.8V
Max. Discharge Current	200A
Discharge Cut-off Voltage	44.8V
Max Charging & Discharging Rate	0.6C
Depth of Discharge — DOD	80%
IP Rating	IP20
Parallel Function	Supports up to 16 units in parallel
Communication Interface	RS485, USB/RS232, CAN
Cycle Life	10,000 cycles at 25°C±2°C, 0.35C, 80% DOD @ 65% EOL
Charge Temperature Range	0°C to 55°C
Discharge Temperature Range	-20°C to 55°C
Dimensions — W x H x D	490 x 840 x 242 mm
Net Weight	140kg
Installation Method	Wall Mounted / Floor Standing
Warranty	5 Years under warranty terms
Functions	WiFi App, Touchscreen, Breaker
Certifications	CEI 0-21, CE, IEC 62619, UL 1973 by Intertek, MSDS, UN38.3
Compatible Use	Solar inverter, household load, grid backup, diesel generator backup

Nimbess 16.07kWh LiFePO4 Lithium Battery 51.2V 314Ah

Click to enlarge

DATA SHEET

Add to wishlist

Categories: LITHIUM BATTERIES, Nimbess

Description

Specification	Details
Brand	Nimbess
Product Type	Floor LiFePO4 Lithium Battery
Product Model	ES-BOX12 MAX+(LCD)
Nominal Energy	16.07kWh
Nominal Voltage	51.2V
Nominal Capacity	314Ah
Cell Type	LFP / LiFePO4
Standard Charge Voltage	56.8V
Max. Discharge Current	200A
Discharge Cut-off Voltage	44.8V
Max Charging & Discharging Rate	0.6C
Depth of Discharge — DOD	80%
IP Rating	IP20
Parallel Function	Supports up to 16 units in parallel
Communication Interface	RS485, USB/RS232, CAN
Cycle Life	10,000 cycles at 25°C±2°C, 0.35C, 80% DOD @ 65% EOL
Charge Temperature Range	0°C to 55°C
Discharge Temperature Range	-20°C to 55°C
Dimensions — W x H x D	490 x 840 x 242 mm
Net Weight	140kg
Installation Method	Wall Mounted / Floor Standing
Warranty	5 Years under warranty terms
Functions	WiFi App, Touchscreen, Breaker
Certifications	CEI 0-21, CE, IEC 62619, UL 1973 by Intertek, MSDS, UN38.3
Compatible Use	Solar inverter, household load, grid backup, diesel generator backup
