Nimbess ES-BOX12 MAX LCD is a premium 14.3kWh floor standing LiFePO4 lithium battery designed for reliable solar energy storage. With 51.2V nominal voltage, 280Ah capacity, WiFi app monitoring, touchscreen control, 0.7C charge/discharge rate, and support for up to 16 units in parallel, it is an excellent choice for residential and commercial backup power systems.

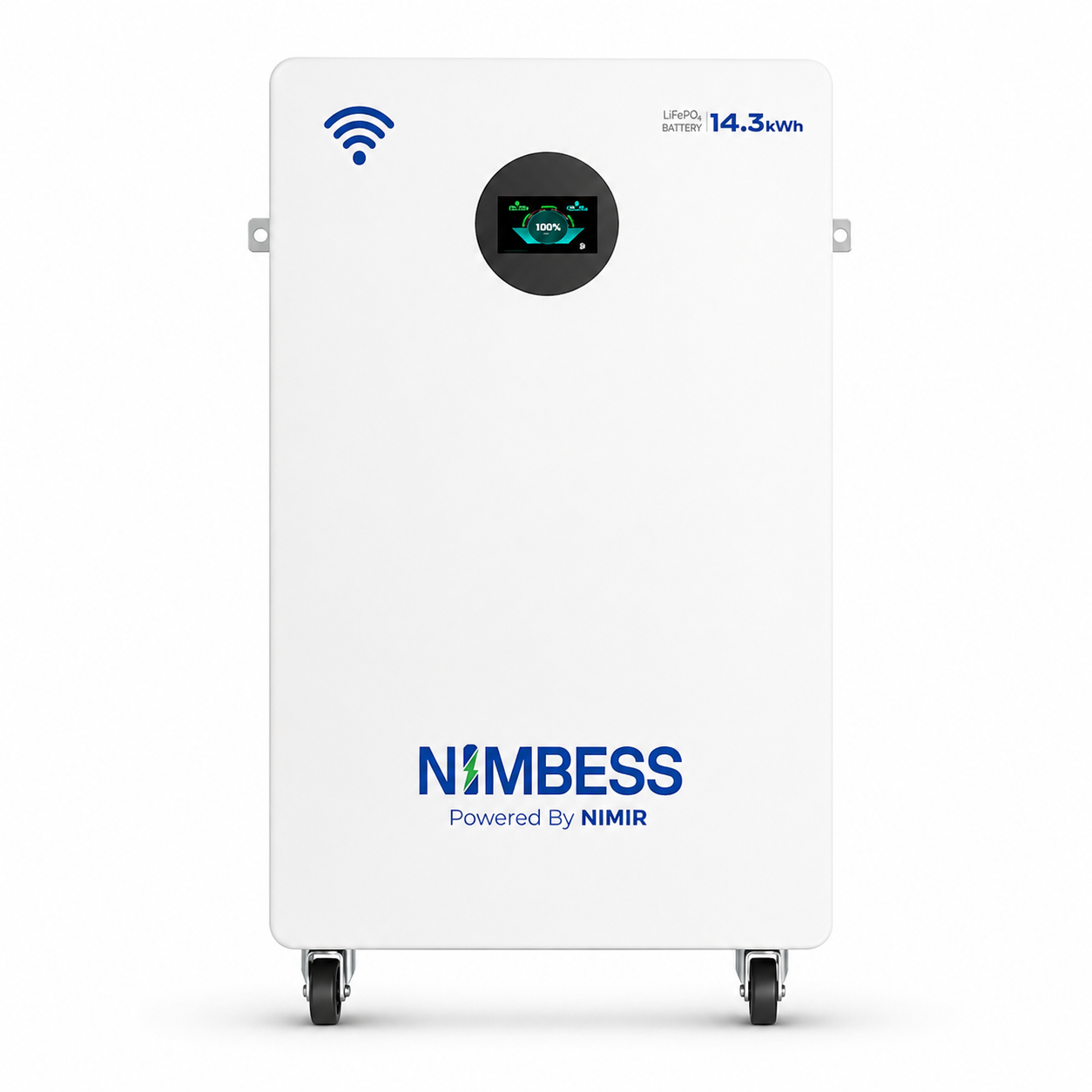

Nimbess ES-BOX12 MAX LCD 14.3kWh LiFePO4 Lithium Battery

The Nimbess ES-BOX12 MAX LCD 14.3kWh LiFePO4 Lithium Battery is a high-performance energy storage solution built for modern solar power systems, backup power setups, and hybrid inverter applications. With a powerful 14.3kWh nominal energy capacity, 51.2V nominal voltage, and 280Ah battery capacity, this lithium battery delivers stable and efficient power for homes, offices, and commercial energy storage needs.

Designed with advanced LiFePO4 battery technology, the Nimbess 14.3kWh battery offers superior safety, long cycle life, and dependable performance. It supports a maximum charge and discharge rate of 0.7C, making it suitable for continuous energy usage. The battery also supports up to 16 units in parallel, allowing users to expand their energy storage capacity according to system requirements.

The battery includes smart features such as WiFi app monitoring, cloud management, touchscreen display, and breaker protection. Its BMS supports simultaneous communication and compatibility with multiple inverter brands through RS485, CAN, USB/RS232 communication interfaces. This makes it highly flexible for solar inverter systems and renewable energy storage projects.

With more than 10,000 cycles under standard testing conditions, 80% depth of discharge, and a 5-year standard warranty, the Nimbess ES-BOX12 MAX LCD is a reliable and future-ready lithium battery for solar energy backup. It can be installed as a wall-mounted or floor-standing battery, offering flexible installation for different site conditions.

Key Features

Specification	Details
Brand	Nimbess
Product Type	Floor / Wall Mounted LiFePO4 Lithium Battery
Product Model	ES-BOX12 MAX LCD
Nominal Energy	14.3kWh
Nominal Voltage	51.2V
Nominal Capacity	280Ah
Cell Type	LFP / LiFePO4
Standard Charge Voltage	56.8V
Max. Discharge Current	200A
Discharge Cut-off Voltage	44.8V
Max Charging & Discharging Rate	0.7C
Depth of Discharge — DOD	80%
Cycle Life	>10,000 Cycles
IP Rating	IP20
Parallel Function	Supports up to 16 units in parallel
Communication Interface	RS485, CAN, USB/RS232
Charge Temperature Range	0°C ~ 55°C
Discharge Temperature Range	-20°C ~ 55°C
Installation Method	Wall Mounted / Floor Standing
Functions	WiFi App, Touchscreen, Breaker
Dimension — W x H x D	490 × 840 × 242mm
Net Weight	130kg
Warranty	5 Years, under warranty terms
Certifications	CEI 0-21, CE, IEC 62619, UL 1973 by Intertek, MSDS, UN38.3, Cell UL 1642, CE, EMC, ROHS

Click to enlarge

DATA SHEET

Add to wishlist

Categories: LITHIUM BATTERIES, Nimbess

Description

Specification	Details
Brand	Nimbess
Product Type	Floor / Wall Mounted LiFePO4 Lithium Battery
Product Model	ES-BOX12 MAX LCD
Nominal Energy	14.3kWh
Nominal Voltage	51.2V
Nominal Capacity	280Ah
Cell Type	LFP / LiFePO4
Standard Charge Voltage	56.8V
Max. Discharge Current	200A
Discharge Cut-off Voltage	44.8V
Max Charging & Discharging Rate	0.7C
Depth of Discharge — DOD	80%
Cycle Life	>10,000 Cycles
IP Rating	IP20
Parallel Function	Supports up to 16 units in parallel
Communication Interface	RS485, CAN, USB/RS232
Charge Temperature Range	0°C ~ 55°C
Discharge Temperature Range	-20°C ~ 55°C
Installation Method	Wall Mounted / Floor Standing
Functions	WiFi App, Touchscreen, Breaker
Dimension — W x H x D	490 × 840 × 242mm
Net Weight	130kg
Warranty	5 Years, under warranty terms
Certifications	CEI 0-21, CE, IEC 62619, UL 1973 by Intertek, MSDS, UN38.3, Cell UL 1642, CE, EMC, ROHS
