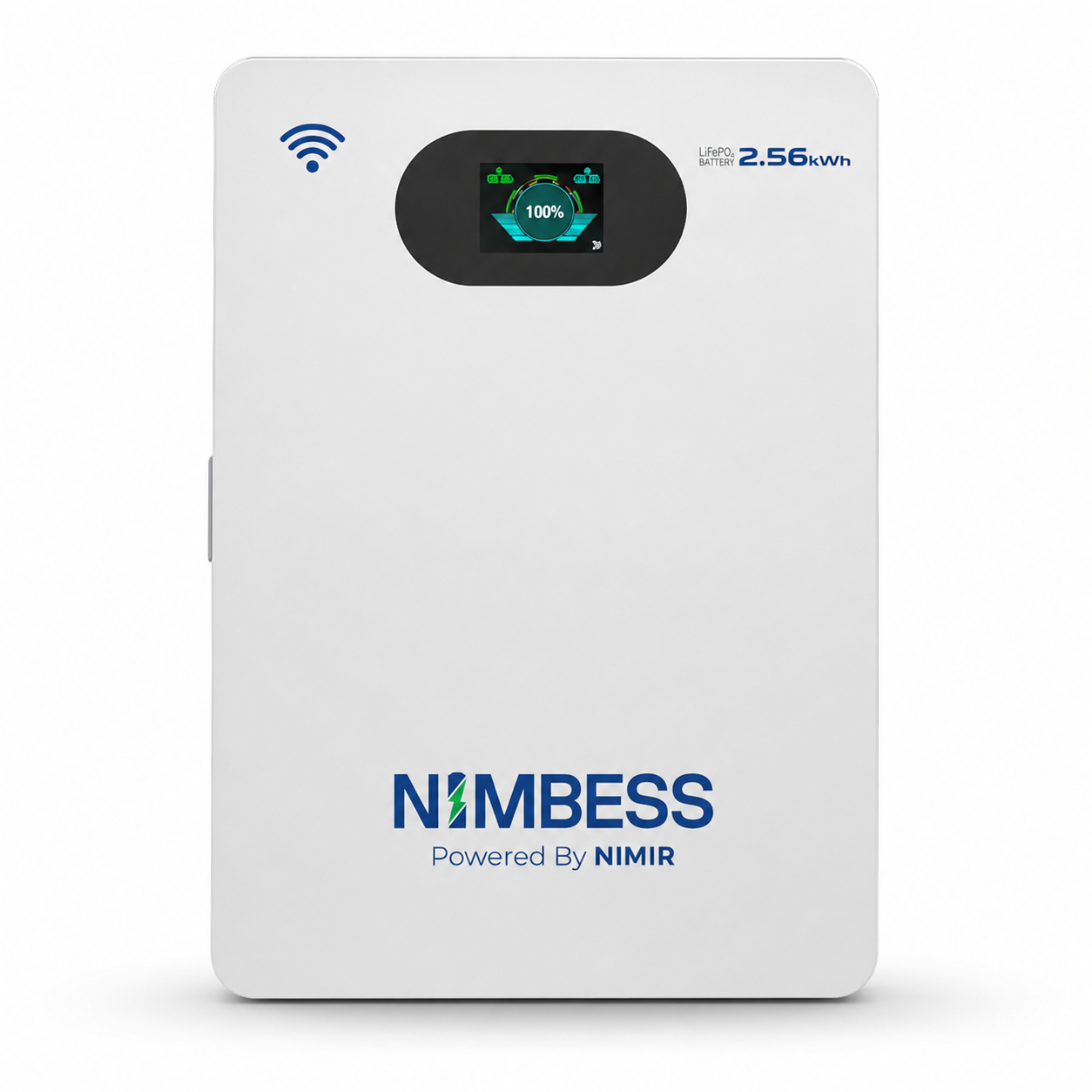

Nimbess ES-BOX12S 2.56kWh LiFePO4 Lithium Battery

For Price Updates
WhatsApp Us

Nimbess ES-BOX12S 2.56kWh LiFePO4 Lithium Battery is a compact 25.6V 100Ah wall mounted solar battery designed for residential energy storage and backup power. It supports up to 16 units in parallel, offers >8000 cycles, 80% DOD, WiFi App monitoring, touchscreen control, and reliable LiFePO4 safety performance.

Nimbess ES-BOX12S 2.56kWh LiFePO4 Lithium Battery is a compact, reliable, and safe energy storage solution designed for residential solar power systems, backup power, and low-voltage battery applications. With a 25.6V nominal voltage, 100Ah nominal capacity, and advanced LFP / LiFePO4 cell technology, this lithium battery provides stable performance, long service life, and enhanced safety for daily energy storage needs.

This 2.56kWh wall mounted lithium battery supports both wall-mounted and floor-standing installation, making it flexible and easy to install in different home and solar system setups. It features RS485, CAN, and USB/RS232 communication interfaces, allowing smooth communication with compatible inverter systems. The battery also supports up to 16 units in parallel, making it suitable for users who want to expand their energy storage capacity over time.

For durability and performance, the Nimbess 2.56kWh battery offers more than 8000 cycles under specified conditions, 80% depth of discharge, and 1C charging and discharging rate. It also includes useful smart functions such as WiFi App monitoring, touchscreen display, and breaker protection, giving users better control and visibility of their battery system.

With multiple certifications including CE, IEC 62619, UL 1973, MSDS, and UN38.3, the Nimbess ES-BOX12S is a dependable choice for solar battery backup, renewable energy storage, and household power applications

Key Features

Specification	Details
Brand	Nimbess
Product Model	ES-BOX12S(LCD)
Battery Type	LiFePO4 / LFP Lithium Battery
Nominal Energy	2.56kWh
Nominal Voltage	25.6V
Nominal Capacity	100Ah
Standard Charge Voltage	28.4V
Max. Discharge Current	100A
Discharge Cut-off Voltage	22.4V
Max Charging & Discharging Rate	1C
Depth of Discharge	80%
Cycle Life	>8000 Cycles
Parallel Function	Supports up to 16 units in parallel
Communication Interface	RS485, CAN, USB/RS232
Charge Temperature Range	0°C to 55°C
Discharge Temperature Range	-20°C to 55°C
IP Rating	IP20
Installation Method	Wall Mounted / Floor Standing
Dimensions	350 × 470 × 150 mm
Net Weight	28 kg
Functions	WiFi App, Touchscreen, Breaker
Warranty	5 Years under warranty terms
Certifications	CE, IEC 62619, UL 1973, MSDS, UN38.3

Nimbess ES-BOX12S 2.56kWh LiFePO4 Lithium Battery 25.6V 100Ah

Click to enlarge

DATA SHEET

Add to wishlist

Categories: LITHIUM BATTERIES, Nimbess

Description

Specification	Details
Brand	Nimbess
Product Model	ES-BOX12S(LCD)
Battery Type	LiFePO4 / LFP Lithium Battery
Nominal Energy	2.56kWh
Nominal Voltage	25.6V
Nominal Capacity	100Ah
Standard Charge Voltage	28.4V
Max. Discharge Current	100A
Discharge Cut-off Voltage	22.4V
Max Charging & Discharging Rate	1C
Depth of Discharge	80%
Cycle Life	>8000 Cycles
Parallel Function	Supports up to 16 units in parallel
Communication Interface	RS485, CAN, USB/RS232
Charge Temperature Range	0°C to 55°C
Discharge Temperature Range	-20°C to 55°C
IP Rating	IP20
Installation Method	Wall Mounted / Floor Standing
Dimensions	350 × 470 × 150 mm
Net Weight	28 kg
Functions	WiFi App, Touchscreen, Breaker
Warranty	5 Years under warranty terms
Certifications	CE, IEC 62619, UL 1973, MSDS, UN38.3
