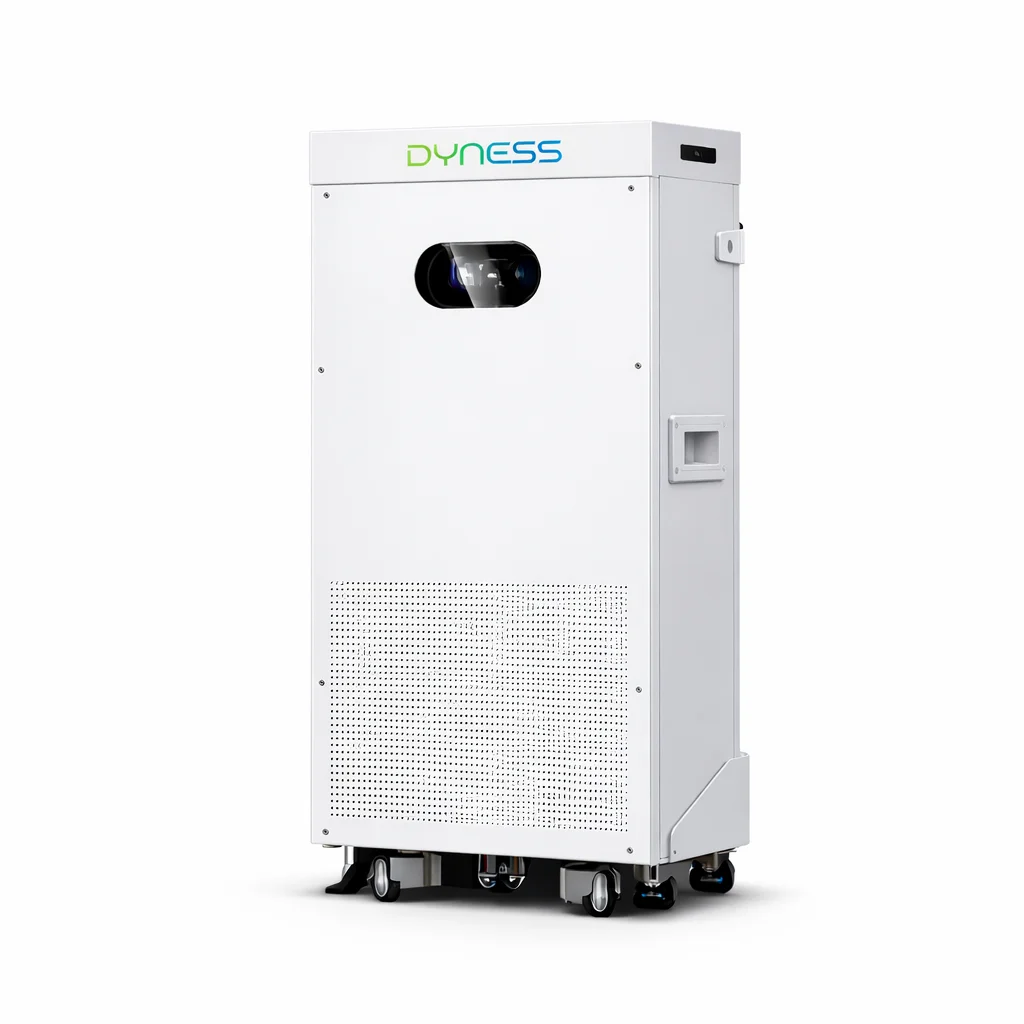

Dyness PowerBrick SC 16.076kWh 51.2V 314Ah Lithium Battery Overview

The Dyness PowerBrick SC is a large-capacity low-voltage lithium battery developed for household energy-storage applications. Its 16.076kWh nominal energy and 15.272kWh usable energy provide substantial storage capacity for solar energy and backup requirements.

The battery uses LiFePO₄ (LFP) chemistry, with a nominal voltage of 51.2V and a capacity of 314Ah; the recommended charge and discharge power is 7.168kW, and the maximum charge and discharge power is 10.24kW.

The PowerBrick SC supports up to 50 units connected in parallel, allowing you to increase storage capacity to meet system requirements. Moreover, the LCD screen, along with Wi-Fi and app features, makes it easier to monitor battery status.

Key Features and Buyer Benefits

16.076kWh High-Capacity Energy Storage

With 16.076kWh nominal battery energy and 15.272kWh usable energy, the PowerBrick SC provides substantial energy storage for residential solar systems and backup applications.

When planning a system, usable energy matters because it shows the energy available under the specified operating conditions, not just the battery’s nominal capacity.

LiFePO₄ Battery Chemistry

The battery uses LiFePO₄ (LFP) cells, a lithium chemistry commonly used for stationary energy storage.

The specified cycle life of the PowerBrick SC is ≥8000 cycles, based on the stated test conditions.

95% Depth of Discharge

The battery can achieve a depth of discharge of 95 percent. This ensures that a large part of the battery’s nominal energy is available without exceeding the stated operating limits.

High Charge and Discharge Capability

The suggested charge and discharge power is 7.168kW, with a maximum of 10.24kW.

The highest charge and discharge current is 200 amperes, and the peak discharge current is 300 amperes for a period of two minutes when the temperature is 25°C.

Therefore, it is important to size the inverter correctly and match the battery current when designing the entire solar-storage system.

Flexible Installation

The PowerBrick SC supports both floor-mounted and wall-mounted installation. It also uses wheels, allowing the unit to be moved more easily during installation where the site arrangement permits.

Expandable Energy Storage

The battery can support a maximum of 50 units connected in parallel, which allows system designers to increase the total storage capacity whenever a single battery is not enough for the intended application.

Best For

The Dyness PowerBrick SC is suitable for:

• Home solar energy storage
• Residential backup power systems
• Solar systems requiring substantial battery storage
• Users looking for a 16kWh-class lithium battery
• Energy-storage systems requiring expandable capacity
• Installations requiring wall-mounted or floor-mounted battery options
• Solar projects using supported low-voltage battery architecture

Not Ideal For

Don’t choose the PowerBrick SC based solely on its energy capacity. Before installing it, make sure that:

• The inverter is compatible with the battery’s 51.2V low-voltage system.
• The inverter supports the required charge and discharge current
• The inverter supports the required CAN/RS485 communication
• The physical installation area can accommodate the battery’s dimensions and weight
• The complete system is designed within the battery’s electrical and temperature limits

Battery Capacity: kWh, Ah and Usable Energy Explained

Battery capacity can be expressed in Ah or kWh, but the two figures refer to different aspects of the battery.

The PowerBrick SC has a nominal voltage of 51.2V and a capacity of 314Ah, and the manufacturer states its nominal energy is 16.076kWh.

The basic relationship is:

Voltage × Ah ÷ 1000 = nominal kWh

When planning a system, use the stated nominal energy as the main figure; the 15.272kWh of usable energy is separate from the nominal capacity and is more appropriate when considering the energy available within the specified operating limits.

Battery Chemistry and Cycle Life

The Dyness PowerBrick SC uses LiFePO₄ (LFP) chemistry and has a specified cycle life of ≥8000 cycles.

The stated test conditions include 0.2C charging and discharging, 25°C, 95% DoD and 70% EOL. Actual battery life can vary with operating temperature, charging and discharging patterns, installation conditions and system settings.

Battery Management and Safety

The PowerBrick SC has an internal battery management and safety system which is designed to enable controlled energy-storage operation.

Key safety features include a built-in aerosol fire extinguisher and intelligent monitoring functions.

It also includes a built-in display to check battery status, and Wi-Fi and app connectivity offer additional monitoring options.

Charging and Discharging Performance

The battery operates within a 44.8V–57.6V operating-voltage range.

Its key electrical limits include:

• The recommended charge and discharge current is 0.45C (140A).
• The maximum charge current is 0.64C (200A).
• The maximum discharge current is 0.64C (200A).
• Peak Discharge Current: 300A for 2 minutes at 25°C
• The recommended charge and discharge power is 7.168 kW.
• Maximum Charge Power: 10.24kW
• Maximum Discharge Power: 10.24kW
• Depth of Discharge: 95%

Before installing the battery, match its charge and discharge limits to the selected inverter.

Inverter Compatibility

The PowerBrick SC can communicate via CAN and RS485.

The battery can be used with inverters from the following brands: SMA, Victron Energy, Ingeteam, Solis, GoodWe, Growatt, Solplanet, Luxpower and Deye, together with others.

Before carrying out the installation, it is necessary to check the actual system compatibility against the battery voltage requirements, the communication protocol and the configuration of the inverter that has been selected.

Hajvery Solar Energy can help buyers to check whether the battery and inverter are compatible before they make a purchase.

Parallel Expansion

The PowerBrick SC supports up to 50 units in parallel.

This enables the overall energy-storage capacity to be increased when more battery capacity is needed than a single unit can provide.

When designing a parallel system, it is necessary to take into consideration the required method of communication, the compatibility with inverters, the way it is to be installed, and the electrical limits.

Technical Specifications

Lithium Battery Use in Pakistan

For Pakistani solar installations, battery selection should consider the expected backup requirement, inverter compatibility, installation environment, and operating temperature.

The PowerBrick SC has a specified charge temperature range of 0°C–55°C and discharge temperature range of −20°C–55°C. Proper ventilation and installation according to the battery’s environmental limits remain important, particularly in hot conditions.

For load-shedding applications, the required battery size should be based on the actual backup load and expected backup duration rather than battery capacity alone.

Dyness PowerBrick SC Price in Pakistan

The current price of Dyness PowerBrick SC 16.076kWh 51.2V 314Ah Lithium Battery in Pakistan is Rs. 570,000 per unit.

The dyness powerbrick sc 16kwh lithium battery price in Pakistan can vary with market conditions, quantity and supply. Dealers and bulk buyers can contact Hajvery Solar Energy for current availability and quantity-based pricing.

For buyers searching for the Dyness Powerbrick SC 16kWh battery price, confirm the purchase price before placing an order.

Hajvery Compatibility and Authenticity Check

Hajvery Solar Energy is a Dyness Official Distributor supplying genuine Dyness energy-storage products.

As a Dyness authorized dealer, Hajvery Solar Energy can help buyers check the correct battery model, inverter compatibility and applicable warranty before purchase.

Customers looking for Official Dyness Distributor support can contact Hajvery Solar Energy for product and dealer enquiries.

Buying through Hajvery Solar Energy, an authorized Dyness dealer, provides a direct route for product selection, compatibility guidance and warranty-related assistance.

Warranty

The Dyness PowerBrick SC comes with a 10-year warranty.

When buy the item, it is necessary to check that warranty coverage applies to both the particular product and the way in which it is installed, including the relevant warranty terms and the requirements for making a claim.

Before You Buy

Before purchasing the Dyness PowerBrick SC, confirm:

• The battery voltage is 51.2 volts with a low-voltage design.
• The required storage capacity is 16.076kWh nominal or 15.272kWh usable.
• Inverter compatibility: Supported voltage and battery communication
• Maximum current: Up to 200A charge/discharge
• Communication: CAN / RS485
• Installation: Floor-mounted or wall-mounted
• Available space: 435 × 233 × 857mm
• Battery weight: 116kg
• Expansion requirement: Up to 50 units in parallel
• Operating temperature: Suitable site conditions within specified limits

Frequently Asked Questions

How much capacity does the Dyness PowerBrick SC have?

The Dyness PowerBrick SC has a nominal energy capacity of 16.076kWh and 15.272kWh usable energy, with a 314Ah capacity and 51.2V nominal voltage.

Is the Dyness PowerBrick SC equipped with a LiFePO₄ battery?

Yes. The PowerBrick SC uses LiFePO₄ (LFP) battery chemistry.

How much does the Dyness PowerBrick SC 16KWh Lithium Battery cost in Pakistan?

The current price is Rs. 570,000 per unit. Contact Hajvery Solar Energy for the latest availability and quantity-based pricing.

How many times can the Dyness PowerBrick SC be used?

The battery has a specified cycle life of ≥8000 cycles under its stated test conditions.

Can the Dyness PowerBrick SC be made any larger?

Yes. The system supports up to 50 units in parallel, allowing total energy-storage capacity to be expanded.

What kind of communication ports does the PowerBrick SC have?

The battery supports CAN and RS485 communication for compatible energy-storage systems.

What ought a review of the Dyness PowerBrick SC 16kwh lithium battery to consider?

A useful Dyness PowerBrick SC 16kWh lithium battery review should cover its 16.076kWh nominal energy, 15.272kWh usable energy, 51.2V architecture, 314Ah capacity, 95% DoD, 200A maximum charge/discharge current, ≥8000-cycle specification, and parallel expansion capability.

Is there a manual and datasheet for the Dyness PowerBrick SC?

Yes. Buyers searching for the Dyness PowerBrick SC 16kwh manual, Dyness PowerBrick SC manual, or Dyness PowerBrick SC datasheet should use the documentation for the exact PowerBrick SC model.

Buy Dyness PowerBrick SC from Hajvery Solar

The Dyness PowerBrick SC 16.076kWh Lithium Battery is available for residential solar-storage applications requiring substantial low-voltage energy storage. Hajvery Solar Energy can help buyers confirm the exact model, inverter compatibility and applicable warranty before purchase.

For customers comparing Dyness lithium battery price in Pakistan, Dyness lithium battery Pakistan, Dyness battery price in Pakistan, or Dyness battery Pakistan, the PowerBrick SC provides a 16.076kWh nominal storage option with expandable parallel capacity.
