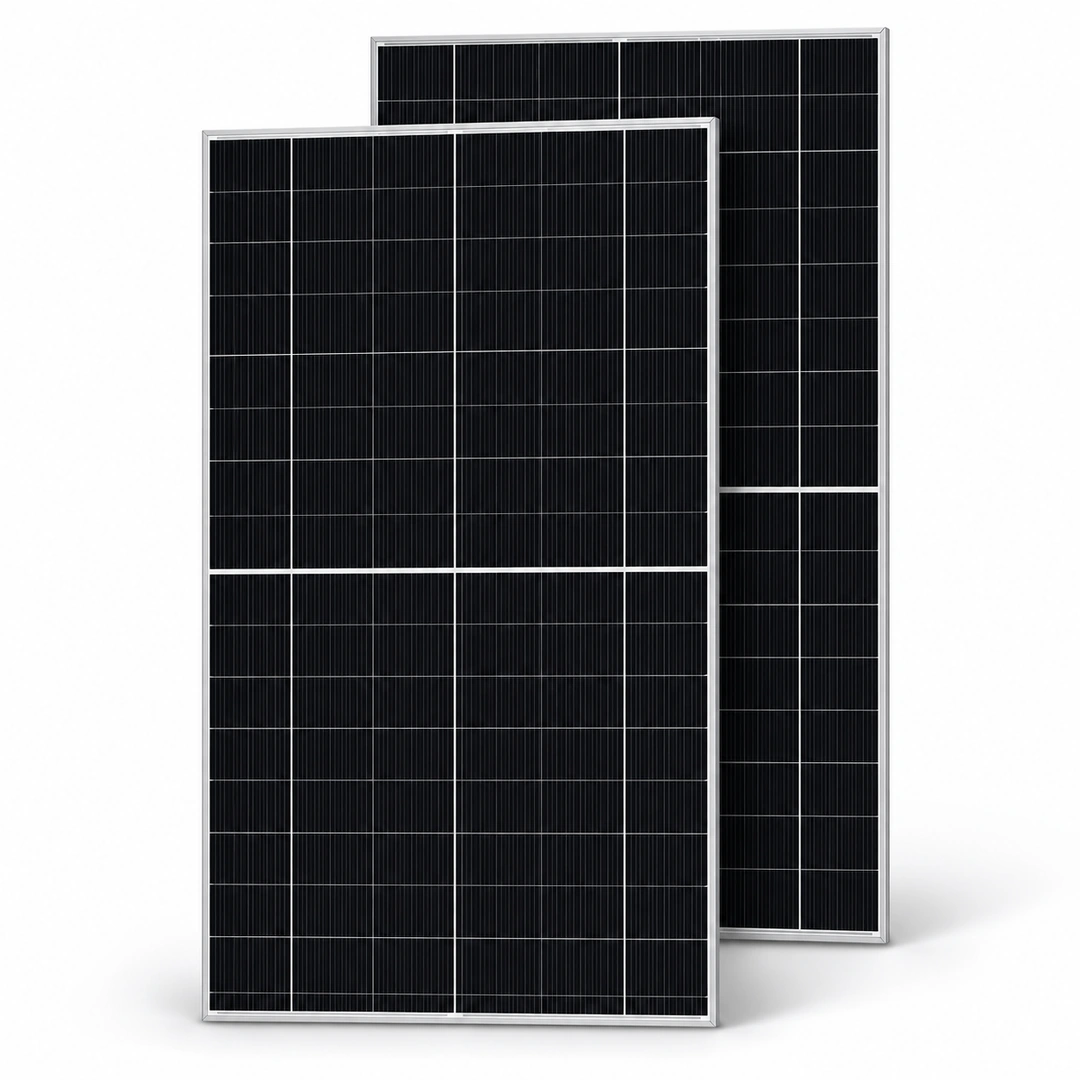

TCL 720W Bifacial Solar Panel

TCL 720W Bifacial Solar Panel Overview

The TCL 720W Bifacial Solar Panel combines N-Type TOPCon cell technology with a double-glass design to deliver high power output for modern solar installations. Its 720W rated capacity makes it a practical option for projects where fewer high-wattage modules can help simplify panel layout, subject to the available installation area and electrical design. Get details about the TCL 720W solar panel price in Pakistan, module efficiency, electrical specifications and warranty.

The bifacial design can capture sunlight from the rear side as well as the front. The additional energy depends on ground reflectivity, panel height, tilt angle, mounting structure and the amount of light reaching the rear surface.

With a 23.2% module efficiency, this panel can convert a substantial amount of incident sunlight into electricity within its installed area. Its large physical dimensions and electrical characteristics should be checked before finalising the mounting arrangement and inverter string configuration.

For buyers comparing the TCL 720W solar panel price in Pakistan, it is important to consider more than the wattage alone. Efficiency, temperature performance, installation space, inverter compatibility and warranty coverage also matter when selecting a solar module.

Key Features and Benefits

N-Type TOPCon Cell Technology

The panel uses N-Type TOPCon cells, a cell technology designed for efficient solar energy conversion. Combined with the module’s high rated power, this technology makes the panel suitable for installations where power generation from the available module area is an important consideration.

Actual energy production will depend on sunlight, temperature, shading, orientation, dust and the overall system design.

Bifacial Double-Glass Construction

The bifacial solar panel design can produce additional electricity through its rear side when reflected sunlight reaches the back of the module. This can be useful in appropriately designed rooftop or ground-mounted installations.

The rear-side contribution is not fixed. A suitable mounting height, favourable ground surface and adequate rear clearance can help improve bifacial energy capture.

High Module Efficiency

With 23.2% module efficiency, the panel makes effective use of its surface area to convert sunlight into electricity. This is useful for commercial projects and installations where available space must be used carefully.

The final number of panels required depends on the desired system capacity, site layout, inverter limits and electrical design.

Temperature Performance

The module has a maximum power temperature coefficient of -0.28%/°C. Solar panels generally produce less power as their cell temperature rises above the reference test temperature.

Adequate ventilation beneath the panels, correct mounting and regular cleaning can help maintain system performance during Pakistan’s hot weather.

Durable Glass and Frame Design

The module uses 2.0mm heat-strengthened front glass with an anti-reflective coating, 2.0mm heat-strengthened rear glass and an anodized aluminium alloy frame.

Its stated static load ratings are 5400Pa on the front and 2400Pa on the rear. Correct mounting and installation remain necessary to meet the applicable structural requirements.

Best For

The TCL 720W Bifacial Solar Panel is worth considering for:

• Commercial solar installations requiring high-wattage modules.
• Large residential solar systems where module dimensions and electrical limits suit the roof.
• Ground-mounted solar projects designed to take advantage of rear-side light.
• Industrial and commercial rooftops with sufficient space and suitable mounting arrangements.
• Solar installers and dealers designing systems around high-power bifacial modules.
• Projects where a high DC module rating is useful, provided the selected inverter supports the electrical characteristics.

When Another Solar Panel May Be Better

This panel may not be the right choice for every installation.

• Small roofs: Its large dimensions may make it difficult to fit around roof edges, skylights or other obstructions.
• Low-clearance mounting: A mounting arrangement that blocks most rear-side light may reduce the practical benefit of bifacial generation.
• Electrical limitations: An inverter or string design that cannot accommodate the panel’s voltage and current characteristics may require a different module or system configuration.
• Weight restrictions: Each panel weighs approximately 38.2kg, so the installer should assess the supporting structure and mounting hardware.
• Special installation requirements: Projects needing a particular module size, electrical rating or mounting arrangement should be evaluated before ordering.

Cell and Module Technology

The panel combines N-Type TOPCon technology, bifacial energy generation and double-glass construction.

N-Type TOPCon refers to the cell architecture used to convert sunlight into electrical energy. Bifacial construction allows the rear surface to contribute to generation when suitable light reaches it. The double-glass design encloses the cells between front and rear glass, supported by an aluminium alloy frame.

The module contains 132 cells arranged in a 6 × 22 configuration. Its large format and electrical characteristics make correct handling, mounting and string planning important during installation.

Technical Specifications

Performance and Bifacial Energy Generation

The panel’s rated output is 720W under Standard Test Conditions (STC). Under the stated Bifacial Nameplate Irradiance (BNPI) test conditions, its power rating is 795W. These values use different test conditions and should not be treated as identical operating ratings.

The module’s bifacial performance can increase total energy generation when the rear side receives sufficient reflected sunlight. For this model, the specified bifaciality is 80±5%.

The actual additional energy from the rear side depends on the installation. Ground colour and reflectivity, mounting height, panel tilt, rear clearance and shading can all affect the result. A quoted bifacial gain should therefore not be treated as a guaranteed percentage of additional electricity in every installation.

The temperature coefficient of maximum power is -0.28%/°C. This is an important consideration when estimating performance during hot weather. Real-world energy production also depends on sunlight availability, dust, shading, orientation, wiring losses and inverter operation.

Performance Considerations for Pakistan

Pakistan’s strong solar resource can support productive solar installations, but module selection and installation quality remain important.

Heat management: Leave suitable ventilation space beneath the modules to help limit excessive operating temperatures.

Dust and cleaning: Dust accumulation can reduce the sunlight reaching the cells. Establish a suitable cleaning routine based on the site’s environment and water quality.

Bifacial mounting: Consider the surface below the panels, rear-side clearance and mounting height. A shaded or obstructed rear surface may reduce the additional energy available from bifacial generation.

Electrical design: Check module voltage and current against the inverter’s maximum DC voltage, MPPT range and input-current limits. The maximum system voltage and maximum series fuse rating must also be respected.

Structural support: The module’s size and weight require suitable mounting rails, clamps and roof or ground support. Installation should be assessed by a qualified solar professional.

TCL 720W Bifacial Solar Panel Price in Pakistan

The current price of the TCL 720W Bifacial Solar Panel in Pakistan is Rs. 25,920 per panel.

The TCL 720W Bifacial Solar Panel price in Pakistan may be considered alongside module efficiency, bifacial design, installation requirements and the electrical characteristics needed for the project. Total project cost will also depend on the number of panels, mounting structure, inverter, cables, protection equipment and installation work.

For dealers, installers and bulk buyers, contact Hajvery Solar Energy to discuss quantity requirements and current availability. Buyers should confirm the applicable warranty and product details before ordering.

Tier 1, A-Grade and Product Authenticity

When evaluating TCL solar panels, buyers should distinguish between the brand’s product specifications and the condition or authenticity of the individual module being purchased.

Before accepting delivery, check the product label, model code, serial number and physical condition. Confirm that the supplied module matches the ordered specification and that the applicable warranty can be verified through the appropriate channel.

Do not assume that a panel is A-grade solely because of its brand or rated power. Product condition and authenticity should be assessed through appropriate checks.

Hajvery Solar Product Verification

Hajvery Solar Energy helps buyers make informed decisions when selecting solar equipment. Before purchasing this panel, confirm the exact model, rated output, electrical specifications, applicable warranty and compatibility with the intended inverter.

For system planning, the installer should review the panel’s Voc, Vmp, Isc and Imp values against the selected inverter and the proposed string arrangement. Temperature-related voltage changes and the inverter’s input-current limits must be considered before installation.

Buyers can also confirm product identification and warranty requirements with Hajvery Solar before finalising an order.

Verify your TCL solar panel with Hajvery Solar Energy to check its authenticity and get greater confidence in your purchase.

Panel verification link:
TCL Solar Panel Verification

Warranty

The TCL 720W Bifacial Solar Panel carries a 15-year product warranty and a 30-year linear performance warranty.

These are separate forms of coverage. The product warranty concerns the module itself, while the linear performance warranty concerns its warranted power output over time. The stated performance warranty graph indicates 87.4% output at year 30.

Applicable coverage, exclusions and claim requirements should be confirmed before purchase. Keep the purchase documentation and module identification details available for warranty enquiries.

Before You Buy

Before ordering the TCL 720W Bifacial Solar Panel, check the following:

• Required system capacity: Calculate the number of modules needed for the intended installation.
• Roof or ground space: Allow for the panel’s dimensions and required maintenance access.
• Inverter compatibility: Verify maximum DC voltage, MPPT voltage range and input-current limits.
• String configuration: Account for module Voc, temperature conditions, Isc and the permitted series arrangement.
• Bifacial installation: Consider rear-side clearance and ground reflectivity.
• Mounting structure: Confirm that the roof or support structure can accommodate the panel’s size and weight.
• Warranty: Confirm applicable product and performance warranty conditions.
• Product identification: Check the model label and serial number before installation.

Frequently Asked Questions

Is the TCL 720W Bifacial Solar Panel an N-Type panel?

Yes. It uses N-Type TOPCon cell technology.

What is the efficiency of the TCL 720W solar panel?

The module efficiency is 23.2%.

Is the TCL 720W panel bifacial?

Yes. Its bifacial double-glass design allows the rear side to contribute to electricity generation when installation conditions provide sufficient reflected light.

What are the voltage and current ratings?

The maximum power voltage is 41.08V, and the maximum power current is 17.53A. The open-circuit voltage is 49.14V, while the short-circuit current is 18.56A.

What is the TCL 720W solar panel price in Pakistan?

The current price is Rs. 25,920 per panel. Confirm current availability and any applicable quantity-based pricing with Hajvery Solar Energy.

What is the size and weight of this solar panel?

The panel measures 2384 × 1303 × 33 mm and weighs approximately 38.2kg ±3%.

What warranty does the TCL 720W Bifacial Solar Panel have?

It carries a 15-year product warranty and a 30-year linear performance warranty, subject to the applicable warranty terms.
