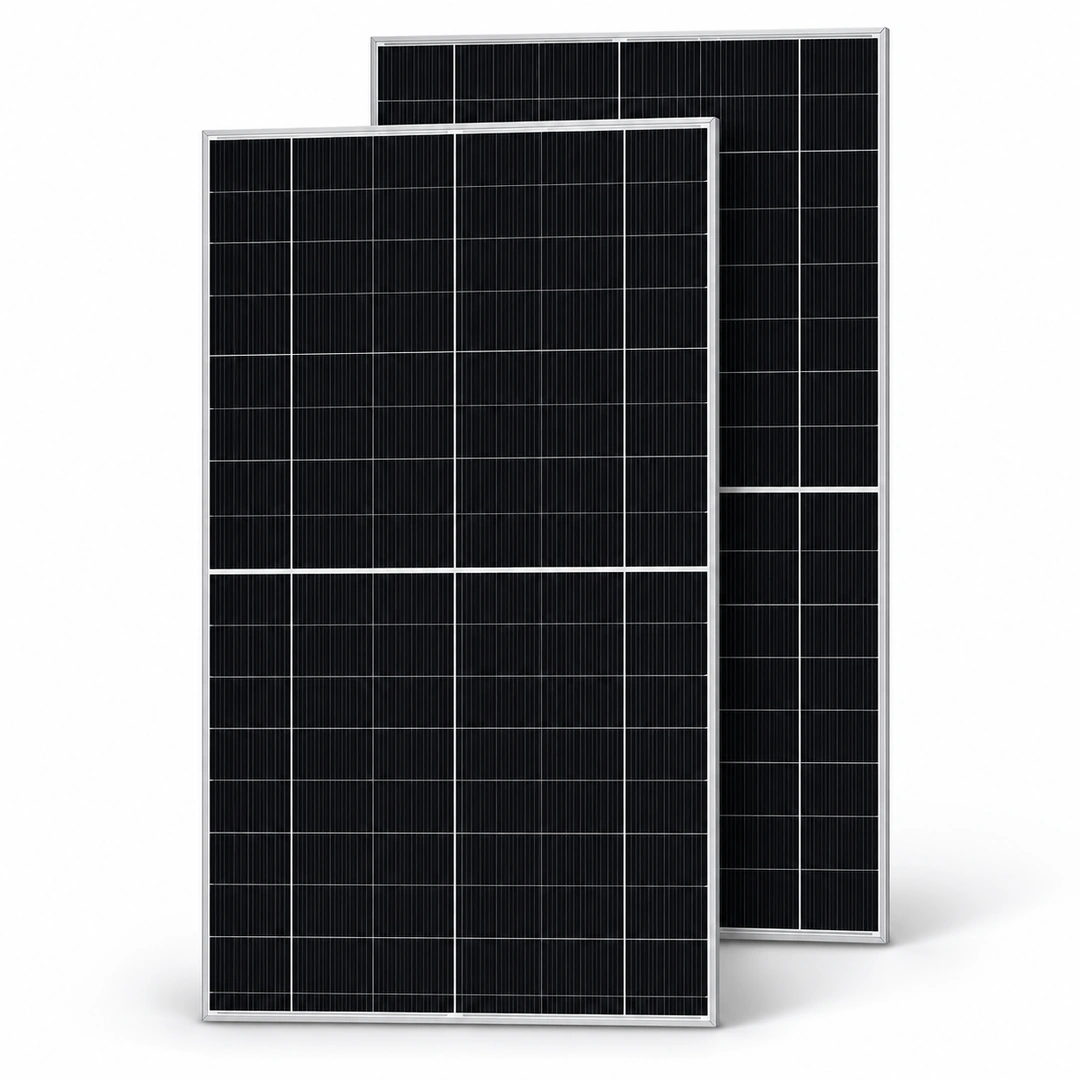

TCL 715W Bifacial Solar Panel

TCL 715W Bifacial Solar Panel Overview

The TCL 715W Bifacial Solar Panel is designed for solar projects that need high power output from each module. It combines N-Type TOPCon cells, bifacial energy generation and double-glass construction. As a result, it can suit installations where power output and long-term performance matter. If you are checking the TCL 715W solar panel price in Pakistan, explore its technology, performance and key features below.

The bifacial design captures sunlight from the front and can also use reflected light reaching the rear side. However, the extra energy depends on ground reflectivity, mounting height, panel tilt, shading and site conditions.

With 715W rated power and 23.0% module efficiency, this panel can help reduce the number of modules needed for a target system capacity compared with lower-wattage modules. However, the final number depends on the electrical design and available space.

For installers and project owners, it is also important to check the module’s voltage, current, dimensions, weight and compatibility with the selected solar inverter.

3. Key Features and Benefits

N-Type TOPCon Technology

The panel uses N-Type TOPCon solar cells in a 132-cell configuration. This technology supports efficient solar energy conversion and helps deliver high power output.

Moreover, the combination of cell technology and rated power can help commercial and industrial projects make better use of available installation space.

Bifacial Solar Energy Generation

The bifacial design allows the panel to receive sunlight from both sides. In addition, the rear side can generate extra energy when reflected sunlight reaches the cells.

However, the actual rear-side gain depends on the installation surface, mounting height, tilt angle and shading. The 80 ± 5% power bifaciality rating describes rear-side power capability compared with the front side under the relevant test conditions. It does not guarantee the same percentage increase in total system generation.

High 715W Power Output

A 715W solar panel can reduce the number of modules needed for a particular DC capacity compared with lower-wattage panels. Therefore, it can be useful for large rooftop installations and ground-mounted solar projects.

However, installers must determine panel quantity and string configuration according to inverter limits, array voltage, current, installation space and site conditions.

Double-Glass Construction

The panel features 2.0mm heat-strengthened front glass with an anti-reflective coating and 2.0mm heat-strengthened rear glass. Meanwhile, an anodized aluminium alloy frame provides structural support.

The junction box has an IP68 rating and includes three bypass diodes. For safe outdoor operation, installers must also follow the correct mounting and installation requirements.

Temperature Performance

The module has a maximum-power temperature coefficient of −0.28%/°C. In other words, its power output changes as cell temperature rises or falls. Therefore, installers should consider mounting clearance and ventilation when planning the system.

The panel also has a 0 to +3% power tolerance. This means its rated power can fall within the stated positive tolerance range.

4. Best For

The TCL 715W Bifacial Solar Panel can be a suitable option for:

• Commercial solar systems that need high output per module.
• Industrial solar installations with a suitable inverter and mounting structure.
• Ground-mounted solar projects where reflected light can reach the rear side.
• Large rooftop systems with enough space and structural support.
• Solar installers and project developers designing high-capacity PV arrays.
• Bifacial installations where ground reflectivity and mounting arrangements support rear-side generation.

However, final suitability depends on the electrical design, mounting arrangement and conditions at the installation site.

5. When Another Panel May Be Better

Although this panel offers high rated power, it may not suit every installation.

• Limited roof space: First, check the module dimensions and available mounting area before ordering.
• Poor rear-side exposure: If the rear surface remains shaded or receives little reflected sunlight, bifacial generation may be limited.
• Inverter current limitations: Make sure the inverter supports the module’s operating and short-circuit currents.
• String voltage restrictions: Also check the temperature-adjusted open-circuit voltage against the inverter’s maximum DC voltage.
• Structural limitations: Each module weighs approximately 38.2kg. Therefore, the mounting structure must support the module’s weight and the applicable site loads.

For these reasons, choose a solar panel according to the complete system design rather than wattage alone.

6. Cell and Module Technology

The TCL 715W Bifacial Solar Panel combines N-Type TOPCon cell technology with a bifacial double-glass structure.

Its 132 cells follow a 6 × 22 configuration. In addition, the front glass has an anti-reflective coating, while the rear glass uses heat-strengthened glass. This design supports light collection from both sides when the installation provides enough rear-side exposure.

The aluminium alloy frame provides structural support, while the junction box includes three bypass diodes.

Overall, the combination of high rated power, bifacial operation and double-glass construction makes this panel worth considering for suitable projects. However, actual energy production still depends on sunlight, temperature, shading, mounting and system configuration.

7. Technical Specifications

8. Performance and Degradation

The TCL 715W Bifacial Solar Panel has separate product warranty and linear performance warranty periods. These warranties cover different aspects of the panel, so buyers should not treat them as interchangeable.

The linear performance warranty includes these reference points:

• After the first year: 99.0% warranted power output.
• At year 30: 87.4% warranted power output.

However, these figures describe warranty reference points rather than the exact electricity production of every installed panel.

Actual energy production depends on sunlight, temperature, orientation, tilt, shading, dust, inverter efficiency and installation quality. Therefore, regular inspection and suitable cleaning can help maintain system performance.

9. Performance Considerations for Pakistan

Solar panels in Pakistan can face high summer temperatures, dust accumulation and changing sunlight conditions. Therefore, buyers and installers should consider these factors when planning a system around a high-output module.

Temperature: The panel’s maximum-power temperature coefficient is −0.28%/°C. As cell temperature rises, instantaneous power output generally falls. For this reason, suitable ventilation and mounting clearance are important.

Dust and cleaning: Dust and other deposits can block sunlight from reaching the cells. Therefore, set the cleaning frequency according to local dust levels, rainfall and site conditions.

Bifacial installation: Rear-side energy generation depends on ground reflectivity, mounting height, tilt angle and shading. Consequently, the mounting arrangement should allow reflected sunlight to reach the rear side.

Electrical design: Check the module’s Voc, Vmp, Isc and Imp against the selected inverter’s voltage and current limits. In addition, account for the effect of low temperatures on open-circuit voltage when designing strings.

10. TCL 715W Bifacial Solar Panel Price in Pakistan

The TCL 715W Bifacial Solar Panel price in Pakistan is an important consideration for buyers planning commercial, industrial or large-scale solar installations.

The current price of the TCL 715W Bifacial Solar Panel in Pakistan is Rs. 26,455 per panel.

However, the overall cost of a solar installation also depends on the number of panels, inverter capacity, mounting structure, wiring, protection equipment and installation requirements. Therefore, dealers, installers and bulk buyers can contact Hajvery Solar Energy to confirm current availability and quantity-based pricing.

11. Tier 1, A-Grade and Product Authenticity

When comparing solar panels, buyers should check product identity, electrical specifications, warranty coverage and the condition of the actual product. This approach is more useful than relying on wattage alone.

Tier 1: Check current, reliable evidence for any Tier 1 designation and make sure it meets the relevant criteria.

A-Grade: Confirm the product grade and physical condition of the actual stock before purchase.

TCL solar panel verification: Check the exact model identification, serial information and applicable warranty details before installation. You can also confirm the available verification procedure with the seller.

Hajvery Solar Energy can assist with product identification and compatibility checks where applicable. However, confirm the availability of any specific verification service before ordering.

12. Hajvery Solar Product Verification

Before purchasing the TCL 715W Bifacial Solar Panel, confirm the exact product identification, physical condition and applicable warranty coverage.

For system compatibility, make sure the selected module fits the inverter’s DC voltage and current limits. Installers should calculate string voltage across the expected temperature range and check current limits for the selected MPPT inputs.

In addition, buyers should confirm module dimensions, mounting requirements and the suitability of the installation structure. These checks can help reduce the risk of electrical incompatibility and installation problems.

Verify your TCL solar panel with Hajvery Solar Energy to check its authenticity and gain greater confidence in your purchase.

Panel verification link: TCL Solar Panel Verification

13. Warranty

The TCL 715W Bifacial Solar Panel comes with a 15-year product warranty and a 30-year linear performance warranty.

These warranties serve different purposes. The product warranty covers the product under its applicable terms, while the performance warranty concerns the warranted power output over time.

Furthermore, the linear performance warranty provides a reference of 99.0% power output after the first year and 87.4% at year 30.

Before purchase, confirm the warranty provider, claim procedure and applicable conditions with Hajvery Solar Energy.

14. Frequently Asked Questions

What is the TCL 715W Bifacial Solar Panel?

The TCL 715W Bifacial Solar Panel is an N-Type TOPCon double-glass solar module with 715W rated power and 23.0% module efficiency.

What is the TCL 715W Bifacial Solar Panel price in Pakistan?

The current price of the TCL 715W Bifacial Solar Panel in Pakistan is Rs. 26,455 per panel. However, contact Hajvery Solar Energy to confirm availability and bulk-order pricing.

What are the TCL 715W Bifacial Solar Panel specifications?

Key specifications include 715W rated power, 23.0% module efficiency, 40.89V maximum power voltage, 17.49A maximum power current, 48.92V open-circuit voltage and 18.52A short-circuit current. You can review the full specifications table above for more details.

How does a bifacial solar panel generate electricity?

A bifacial panel receives sunlight on its front side and can also capture reflected sunlight on its rear side. However, additional generation depends on ground reflectivity, mounting height, tilt and shading.

Is the TCL 715W panel suitable for commercial solar systems?

It can suit commercial and industrial projects when its dimensions and electrical characteristics match the installation requirements. Nevertheless, installers must check compatibility with the inverter and complete system design.

What is the warranty of the TCL 715W Bifacial Solar Panel?

The panel has a 15-year product warranty and a 30-year linear performance warranty. Before purchase, confirm the applicable warranty terms and claim procedure.

How can I find a TCL 715W solar panel review?

A useful tcl 715w solar panel review should cover rated power, efficiency, electrical compatibility, installation requirements and warranty coverage. In addition, real-world energy production depends on site conditions and system design.

How can I check TCL solar panel prices in Pakistan?

To check current TCL solar panel prices, contact Hajvery Solar Energy with the required wattage and quantity. Remember that total project cost also depends on the inverter, mounting equipment and installation requirements.

15. Buy TCL 715W Bifacial Solar Panel from Hajvery Solar Energy

Hajvery Solar Energy supplies solar products for customers, installers and dealers in Pakistan. If you are considering the TCL 715W Bifacial Solar Panel, confirm current availability, warranty details and inverter compatibility before finalising your project.

Visit Hajvery Solar Energy at 280K Block J-1, Johar Town, Lahore, or contact the team for product and order enquiries.

For more options, visit TCL Solar Panels in Pakistan.
