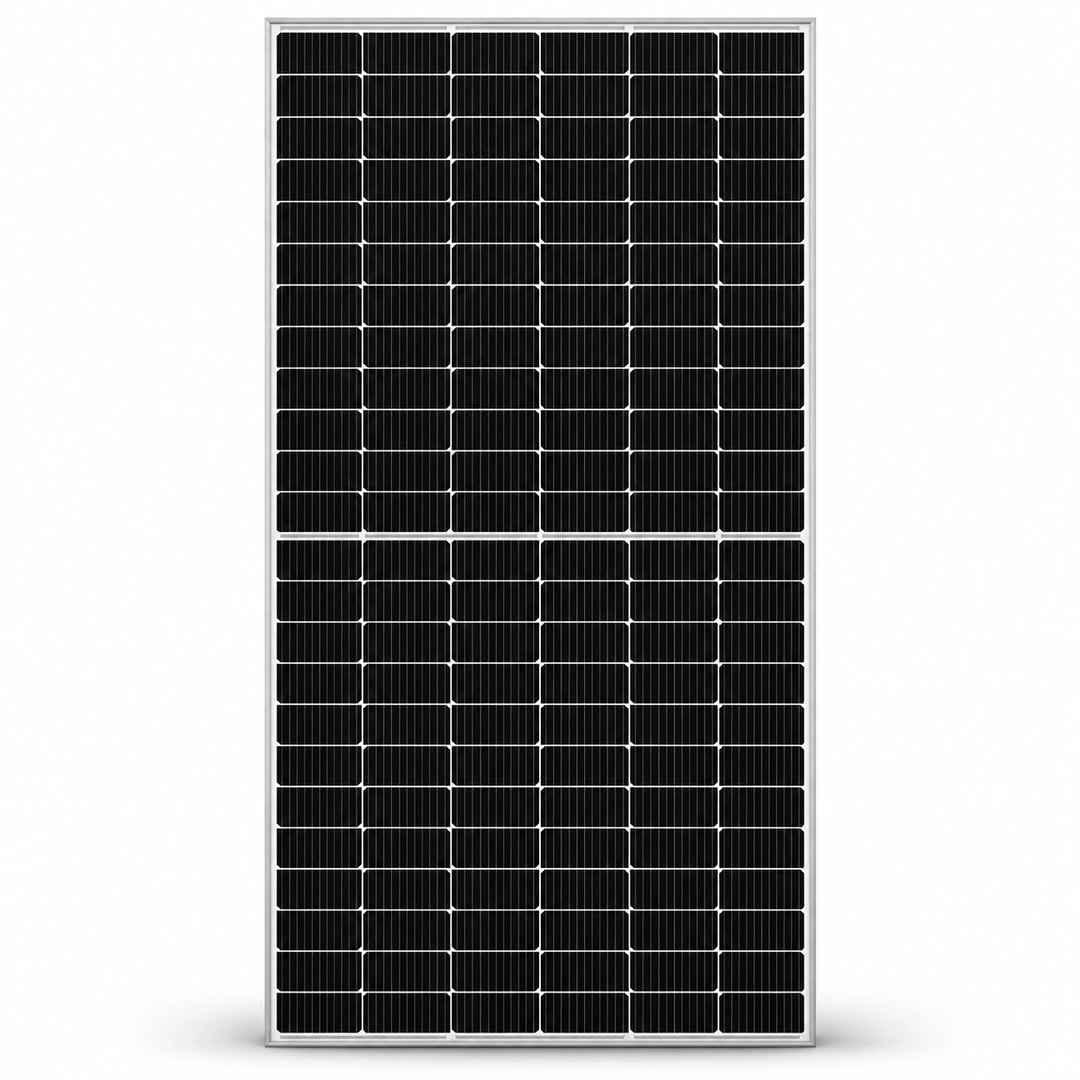

Canadian 620W Bifacial Solar Panel

Canadian 620W Bifacial Solar Panel Overview

The Canadian 620W Bifacial Solar Panel is designed for solar projects that require high output from each installed module. It combines N-Type TOPCon technology, bifacial energy generation and a dual-glass construction to support long-term solar power production. The canadian 620w solar panel price in pakistan is an important factor to consider when planning a residential or commercial solar installation.

With a rated power of 620W and module efficiency of 23.0%, it is a practical option for commercial rooftops, industrial installations and ground-mounted solar systems. Its large module format can help reduce the number of panels required to reach a target DC capacity, although the final quantity depends on the project’s total power requirement and available installation area.

The bifacial design is particularly useful where reflected sunlight can reach the rear surface. Ground reflectivity, panel height, mounting structure and the surrounding environment affect the additional energy produced from the rear side.

For buyers comparing Canadian 620W solar panels in Pakistan, electrical compatibility, dimensions, warranty coverage and installation conditions should be considered alongside the rated wattage.

Key Features and Benefits

N-Type TOPCon Cell Technology

The panel uses N-Type TOPCon cells with a 132-cell arrangement. This cell technology supports the module’s high rated output and efficient conversion of sunlight into electricity.

For buyers planning a larger solar system, the combination of high wattage and module efficiency helps make better use of the available installation area. Actual system output still depends on sunlight, temperature, orientation, shading and installation quality.

For more technical information click the link given below:
Canadian Solar Panel Official Website.

Bifacial Energy Generation

The Canadian 620W bifacial solar panel can generate electricity from both its front and rear surfaces. Its power bifaciality is rated at 80%, with a stated tolerance of ±5%.

Rear-side energy gain is not a fixed percentage of daily production. It depends on factors such as ground reflectivity, mounting height, panel tilt and the amount of light reaching the rear glass. A properly planned installation can help make better use of this feature.

23.0% Module Efficiency

A module efficiency of 23.0% allows the panel to convert a substantial proportion of the sunlight falling on its active area into electricity under standard test conditions. This is useful for commercial rooftops and other projects where installation space is an important consideration.

Performance in Hot Weather

The panel has a maximum power temperature coefficient of -0.29%/°C. This indicates how its rated power changes as cell temperature rises above the reference test temperature.

For solar installations in Pakistan, correct mounting clearance and ventilation are important because elevated module temperatures can reduce power output. Actual performance varies with site conditions.

Dual-Glass Construction

The module features 2.0 mm heat-strengthened glass on both the front and rear, with an anti-reflective coating on the front glass. An anodized aluminium alloy frame provides structural support.

The junction box has an IP68 rating and includes three bypass diodes. These construction features are relevant when evaluating durability and installation requirements.

Low Power Degradation

The panel’s power warranty specifies first-year degradation of no more than 1%, followed by annual degradation of no more than 0.4%. This warranty structure helps buyers assess long-term power-performance expectations.

Best For

The Canadian 620W Bifacial Solar Panel is suitable for:

• Commercial solar rooftops where higher module output is useful.
• Industrial solar installations with suitable structural and electrical design.
• Ground-mounted solar systems where rear-side light exposure can support bifacial generation.
• Large solar projects that require high-wattage modules.
• Solar installers and dealers seeking N-Type TOPCon technology and bifacial construction.

The final design should account for the installation area, mounting arrangement, inverter input limits and required system capacity.

When Another Panel May Be Better

A different module may be more appropriate when the available roof space cannot accommodate the panel’s dimensions of 2382 × 1134 mm, when the mounting structure cannot support its weight, or when the selected inverter’s voltage and current limits do not match the panel’s electrical characteristics.

A monofacial installation may also be more economical where the rear side receives very little useful light. Buyers should compare the complete system design rather than selecting a module by wattage alone.

Cell and Module Technology

The Canadian 620W Bifacial Solar Panel belongs to the TOPBiHiKu6 series and uses N-Type TOPCon technology.

Its bifacial construction enables the rear surface to capture reflected and scattered sunlight. The amount of additional electricity produced depends on the site’s ground surface, mounting height, tilt angle and rear-side shading.

The module uses 132 cells arranged in a 2 × (11 × 6) configuration. Its dual-glass construction and aluminium frame are intended for use in properly engineered solar installations.

Technical Specifications

Electrical values are rated under Standard Test Conditions (STC), unless otherwise noted.

Performance and Degradation

The panel’s long-term performance warranty specifies a maximum power reduction of 1% during the first year and no more than 0.4% for each subsequent year. These figures describe the stated degradation limits rather than a guarantee of the electricity a complete solar system will generate.

Actual production depends on sunlight availability, module temperature, dust accumulation, shading, orientation, inverter efficiency and system maintenance.

The -0.29%/°C temperature coefficient is especially relevant when planning installations exposed to high summer temperatures. Good ventilation and appropriate mounting clearance help manage operating temperature.

Performance Considerations for Pakistan

Solar panels installed in Pakistan can experience high temperatures, dust accumulation and seasonal changes in sunlight. These conditions affect actual energy production.

For the Canadian 620W module, installers should consider:

• Maintaining appropriate clearance beneath the modules for ventilation.
• Cleaning accumulated dust according to site conditions and safe maintenance procedures.
• Using a mounting arrangement that allows useful light to reach the rear surface for bifacial generation.
• Checking the roof or mounting structure against the panel’s weight and dimensions.
• Designing the string configuration around the panel’s voltage and current characteristics.
• Applying temperature corrections when calculating maximum string voltage.

These measures help ensure that the selected panel is used within the limits of the complete solar system.

Canadian 620W Bifacial Solar Panel Price in Pakistan

The Canadian 620W solar panel price in Pakistan is an important consideration for homeowners, businesses, installers and solar dealers comparing high-wattage modules.

The current price of the Canadian 620W Bifacial Solar Panel in Pakistan is Rs. 24,924 per panel.

For bulk orders, commercial projects and dealer enquiries, contact Hajvery Solar Energy to confirm current availability and applicable quantity-based pricing. The final system cost also depends on the number of panels, mounting structure, inverter, protection equipment, cabling and installation requirements.

Tier 1, A-Grade and Product Authenticity

Solar panel buyers should evaluate the exact model, product condition, serial information and applicable warranty before purchase. Claims such as Tier 1 status and A-grade condition should be supported by relevant verification rather than assumed from the brand name alone.

Hajvery Solar Energy can help buyers with product identification and applicable purchasing checks. Confirm the panel’s condition and warranty eligibility before finalising an order.

Hajvery Solar Product Verification

Before purchasing the Canadian 620W Bifacial Solar Panel, confirm the exact model CS6.2-66TB-620, the physical condition of the module and the applicable warranty terms.

Installers should also check electrical compatibility with the intended inverter. The panel’s open-circuit voltage, short-circuit current, operating current and temperature characteristics must be considered when designing the strings.

For bifacial installations, mounting height, ground reflectivity and rear-side clearance should be evaluated as part of the system design.

You can verify your Canadian Solar Panel through Hajvery Solar Energy’s solar panel verification link given below:

Canadian Solar Panel Verification Link.

Warranty

The Canadian 620W Bifacial Solar Panel comes with a 12-year enhanced product warranty covering materials and workmanship and a 30-year linear power performance warranty.

The power warranty specifies no more than 1% degradation during the first year and no more than 0.4% annual degradation in subsequent years. Product and performance warranties cover different aspects of the module and should be understood separately.

Applicable coverage, exclusions, claim procedures and eligibility are governed by the relevant Canadian Solar Limited Warranty Statement. Confirm the terms applicable to the purchased product before ordering.

Frequently Asked Questions

1. What is the Canadian 620W solar panel price in Pakistan?

The current price of the Canadian 620W Bifacial Solar Panel in Pakistan is Rs. 24,924 per panel. Contact Hajvery Solar Energy to confirm current availability and bulk-order pricing.

2. Is the Canadian 620W solar panel bifacial?

Yes. The module has a bifacial design that allows it to generate electricity from both sides. The additional rear-side energy depends on the installation conditions.

3. What is the efficiency of the Canadian 620W Bifacial Solar Panel?

Its rated module efficiency is 23.0% under standard test conditions.

4. What are the Canadian 620W solar panel dimensions?

The module measures 2382 × 1134 × 30 mm and weighs 33.6 kg. Check the available installation space and mounting structure before purchase.

5. What is the Canadian Solar 620W model number?

The exact model is CS6.2-66TB-620, part of the TOPBiHiKu6 series.

6. What warranty does the Canadian 620W Bifacial Solar Panel have?

It has a 12-year product warranty covering materials and workmanship and a 30-year linear power performance warranty. Applicable warranty conditions should be confirmed before purchase.

7. Is the Canadian 620W panel suitable for a home solar system?

It can be used in a residential solar system if the available space, mounting structure, inverter limits and string design are suitable. A qualified installer should check electrical compatibility before installation.

8. Where can I find the Canadian 620W solar panel size and technical specifications?

The panel measures 2382 × 1134 × 30 mm. Its key electrical specifications include 41.2V maximum power voltage, 15.06A maximum power current and 48.4V open-circuit voltage. These values are important when checking inverter compatibility and string configuration.

Buy Canadian 620W Bifacial Solar Panel from Hajvery Solar

Choose Hajvery Solar Energy for solar product enquiries, panel selection guidance and assistance with applicable warranty and compatibility checks.

Visit our store at 280K Block J-1, Johar Town, Lahore, or contact our team to discuss your residential, commercial or industrial solar project. Nationwide delivery arrangements and current product availability should be confirmed before placing your order.
