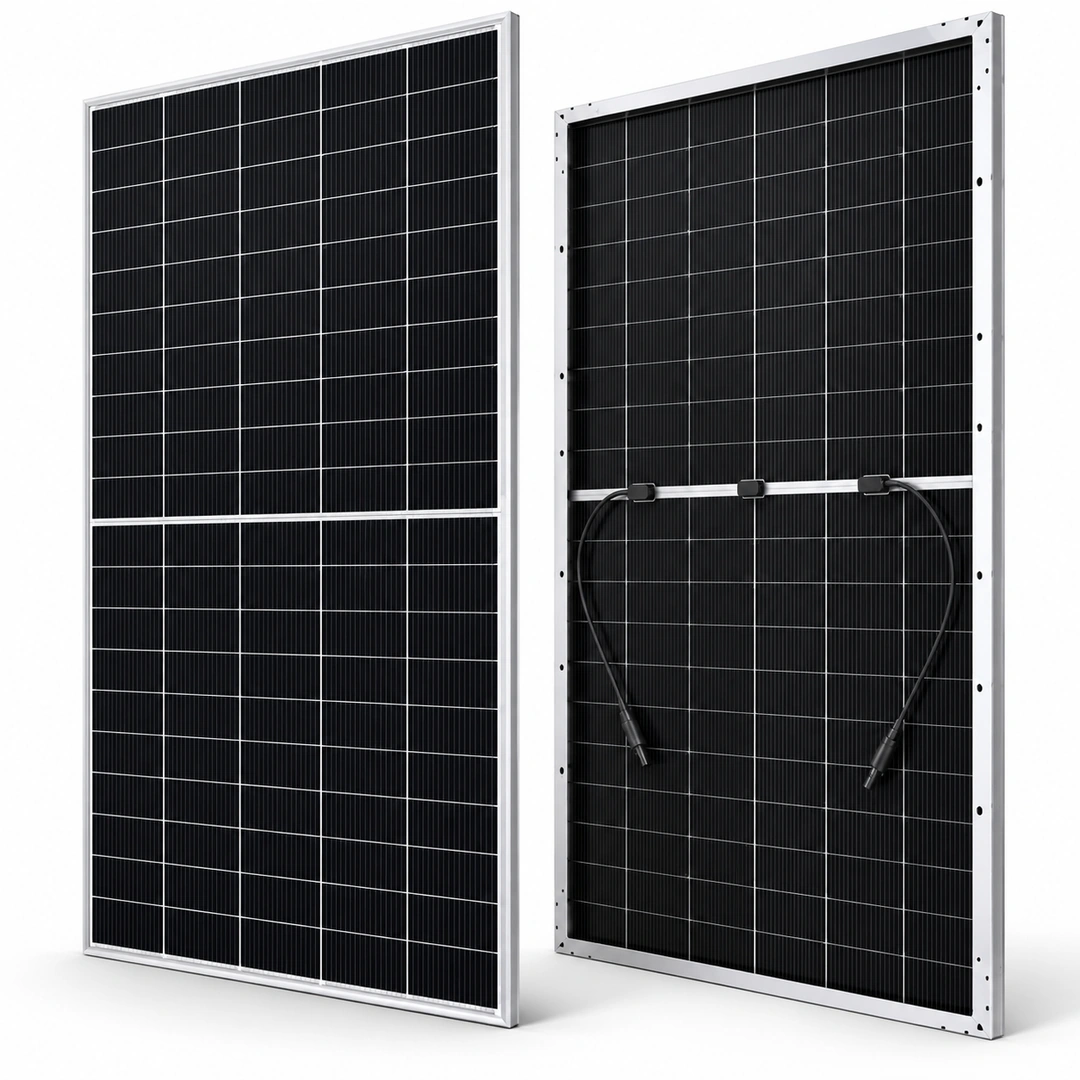

Canadian 650W X20 Bifacial Solar Panel

Canadian 650W X20 Bifacial Solar Panel Overview

The Canadian 650W X20 Bifacial Solar Panel is designed for solar installations that require high power output, efficient use of installation space and long-term energy production. Its N-Type TOPCon cells and bifacial construction allow the module to capture sunlight from both the front and rear sides. The Canadian 650W X20 Bifacial Solar Panel price in Pakistan is an important factor when planning a residential or commercial solar system.

With a front-side rated output of 650W, this panel is suitable for projects where installers want to generate substantial solar power from each module. Its 24.1% efficiency helps make productive use of available roof or ground-mounted installation space.

The double-glass construction combines heat-strengthened glass on both sides with an anodized aluminium frame. An IP68-rated junction box provides protection against dust and water ingress under its applicable rating conditions.

For solar projects in Pakistan, the panel’s temperature coefficient of -0.29%/°C is an important consideration during system planning. Actual energy production depends on sunlight, panel temperature, shading, installation angle, cleaning and the design of the complete solar system.

Key Features and Benefits

N-Type TOPCon Cell Technology

The panel uses N-Type TOPCon solar cells arranged in a 132-cell configuration. This cell technology supports the module’s high rated output and efficient conversion of sunlight into electricity.

For buyers, the combination of cell technology and high module efficiency can help reduce the number of panels required for a specified DC capacity, depending on the project design and available installation area.

For more technical information click the link given below:
Canadian Solar Panel Official Website.

Bifacial Solar Generation

The bifacial design allows the panel to receive sunlight from both sides. In addition to direct sunlight on the front, the rear side can capture reflected light from the ground or surrounding surfaces.

Rear-side generation varies with the mounting structure, panel height, tilt angle, ground reflectivity and the amount of shading behind the module. A suitable installation arrangement is important to benefit from bifacial technology.

650W High Power Output

A rated output of 650 watts per panel makes this module suitable for residential, commercial and larger solar systems. Higher wattage can help reduce the number of modules needed for a given array capacity, although the final quantity depends on inverter limits, available space and electrical string design.

Efficient Performance in Warm Conditions

The module has a maximum-power temperature coefficient of -0.29%/°C. This indicates how its maximum power changes with cell temperature relative to the standard reference temperature.

Since solar modules can become considerably hotter than the surrounding air, correct mounting clearance and ventilation are important for managing operating temperature.

Double-Glass Construction

The front and rear both use 2.0 mm heat-strengthened glass. An anodized aluminium alloy frame provides structural support, while the glass-glass design forms the module’s protective outer construction.

The panel is designed for demanding installation environments, but proper handling, mounting and compliance with the installation requirements remain essential.

Low Power Degradation

The panel’s stated power degradation limits are no more than 1% in the first year and no more than 0.4% annually thereafter. These figures are important when evaluating long-term energy production and the applicable performance warranty.

Best For

The Canadian 650W bifacial solar panel can be considered for:

• Residential solar systems requiring substantial installed DC capacity.
• Commercial rooftops where available space and structural loading have been assessed.
• Industrial solar projects requiring high-output modules.
• Ground-mounted solar installations with suitable rear-side clearance for bifacial generation.
• Solar installers and dealers planning high-capacity arrays.
• Projects where module efficiency, temperature behaviour and long-term power performance are important selection criteria.

When Another Panel Configuration May Be Better

This panel may not be the right fit for every installation. Consider the following before purchasing:

• Limited installation space: Confirm the large module dimensions and available mounting area.
• Roof load restrictions: Each panel weighs 32.8 kg, excluding mounting hardware. The roof structure must be assessed for the complete installed system.
• Low-clearance installations: A bifacial module may deliver less additional rear-side generation if the rear surface receives little reflected light.
• Inverter current limitations: The module’s operating current must remain within the selected inverter’s MPPT and input-current limits.
• String voltage restrictions: The number of panels connected in series must be calculated using the inverter’s voltage limits and temperature-adjusted open-circuit voltage.

Cell and Module Technology

The module combines N-Type TOPCon cells, a bifacial configuration and double-glass construction.

Its 132-cell arrangement uses the configuration 2 × (11 × 6). The bifacial design provides an opportunity to capture reflected sunlight from the rear, while the N-Type cell architecture supports the module’s rated electrical performance.

The panel has a nominal bifaciality of 80% ± 5%. Bifaciality describes the relationship between rear-side and front-side maximum power under the specified test conditions. It is not a guarantee of a fixed additional energy yield in an installed system.

Technical Specifications

Bifacial Power Gain

The panel’s front-side rated output remains 650W under standard test conditions. Rear-side light can increase total module power under suitable conditions.

These figures are illustrative calculations based on the rated front-side output and the stated percentage gain. They are not guaranteed operating outputs. Actual rear-side contribution depends on the installation environment and irradiance.

Performance and Degradation

Long-term power performance is an important factor when choosing a solar panel for a residential or commercial installation.

The panel has a maximum first-year power degradation limit of 1%, followed by a maximum annual degradation limit of 0.4% in subsequent years. These limits are associated with the applicable linear power performance warranty.

Its maximum-power temperature coefficient of -0.29%/°C is relevant to installations exposed to high summer temperatures. Actual output will vary with cell temperature, irradiance, shading, dust and other operating conditions.

The 30-year performance warranty should be considered separately from the 12-year product warranty, as each covers a different aspect of the module.

Performance Considerations for Pakistan

Pakistan’s hot summers, dust and seasonal changes in sunlight make correct solar system design particularly important.

• Heat management: Install the panels with appropriate ventilation behind the modules.
• Dust and cleaning: Dust accumulation can reduce energy production. Establish a suitable cleaning schedule based on local conditions.
• Bifacial installation: Allow suitable rear-side clearance and avoid unnecessary shading or obstruction behind the panel.
• Mounting strength: The structure must support the panel weight and the loads applicable to the installation site.
• Electrical design: Verify voltage and current limits before connecting modules to an inverter.
• Orientation and tilt: Select an appropriate mounting angle and orientation for the project’s energy-generation requirements.

These installation considerations help buyers evaluate the panel as part of a complete solar system rather than relying on wattage alone.

Canadian 650W X20 Bifacial Solar Panel Price in Pakistan

The Canadian 650W X20 Bifacial Solar Panel price in Pakistan is an important consideration for homeowners, installers, dealers and commercial solar buyers.

The total panel cost depends on the number of modules required for the project. Buyers should also account for mounting structures, wiring, protection equipment, inverter selection, installation and other system components when preparing a complete solar budget.

For bulk orders or commercial installations, contact Hajvery Solar Energy to confirm current availability and quantity-based pricing.

Tier 1, A-Grade and Product Authenticity

When selecting a solar panel, buyers should distinguish between manufacturer specifications, product condition and independent supplier verification.

• Exact model identification: Check the model code and product label before purchase.
• Product condition: Confirm the physical condition of the panels and inspect for visible damage.
• Serial verification: Use the available manufacturer verification process where applicable.
• Warranty eligibility: Confirm the applicable warranty terms for the purchased product and market.
• Electrical compatibility: Check the panel’s current and voltage against the inverter and system design.

Terms such as A-Grade and Tier 1 should not be treated as automatic proof of an individual panel’s condition, authenticity or warranty eligibility.

Hajvery Solar Product Verification

Hajvery Solar Energy can help buyers identify the correct panel model and understand the checks needed before purchasing a solar module.

Before placing an order, confirm the product label, model identification, physical condition and applicable warranty. For a complete installation, the selected modules must also match the inverter’s electrical limits and the planned string configuration.

Customers in Lahore and other parts of Pakistan should confirm availability, order quantity and delivery arrangements before finalising their purchase.

You can verify your Canadian Solar Panel through Hajvery Solar Energy’s solar panel verification link given below:

Canadian Solar Panel Verification Link.

Warranty

The Canadian 650W X20 Bifacial Solar Panel has a 12-year product warranty covering materials and workmanship and a separate 30-year linear power performance warranty.

The product warranty and performance warranty serve different purposes. The first concerns covered product defects in materials and workmanship, while the second relates to the panel’s warranted long-term power performance.

The applicable Canadian Solar warranty terms and conditions govern coverage, eligibility and claims. Buyers should confirm the relevant warranty statement and claim requirements for their purchase.

Frequently Asked Questions

1. What is the Canadian 650W X20 Bifacial Solar Panel price in Pakistan?

The current price of the Canadian 650W X20 Bifacial Solar Panel in Pakistan is Rs. 27,625 per panel. Contact Hajvery Solar Energy to confirm availability and bulk-order pricing.

2. What is the rated power of this Canadian Solar panel?

The panel has a 650W rated maximum power output under standard test conditions.

3. Is the Canadian 650W X20 a bifacial solar panel?

Yes. Its bifacial construction allows it to capture sunlight from the front and rear sides. Additional rear-side generation depends on mounting height, ground reflectivity, tilt and shading.

4. What is the efficiency of the Canadian 650W solar panel?

The 650W variant has a 24.1% module efficiency.

5. What are the dimensions and weight of the panel?

The module measures 2382 × 1134 × 30 mm and weighs 32.8 kg.

6. What is the warranty on the Canadian 650W X20 Bifacial Solar Panel?

It carries a 12-year product warranty covering materials and workmanship, along with a 30-year linear power performance warranty, subject to the applicable warranty terms.

7. Is this panel suitable for solar systems in Pakistan?

It can be considered for residential, commercial and large-scale installations. Suitability depends on the available space, mounting structure, local operating conditions and compatibility with the selected inverter.

8. How can I check inverter compatibility before buying?

Compare the panel’s Vmp, Voc, Imp and Isc with the inverter’s MPPT voltage range, maximum DC voltage and current limits. The final string design should also account for temperature-related voltage changes and applicable installation requirements.

Buy Canadian 650W X20 Bifacial Solar Panel from Hajvery Solar Energy

Hajvery Solar Energy provides solar product purchasing assistance for customers, installers and dealers in Pakistan. Before ordering the Canadian 650W X20 Bifacial Solar Panel, confirm the required quantity, current availability, warranty eligibility and system compatibility.

Visit Hajvery Solar Energy at 280K Block J-1, Johar Town, Lahore, or contact the team for product and order enquiries.
