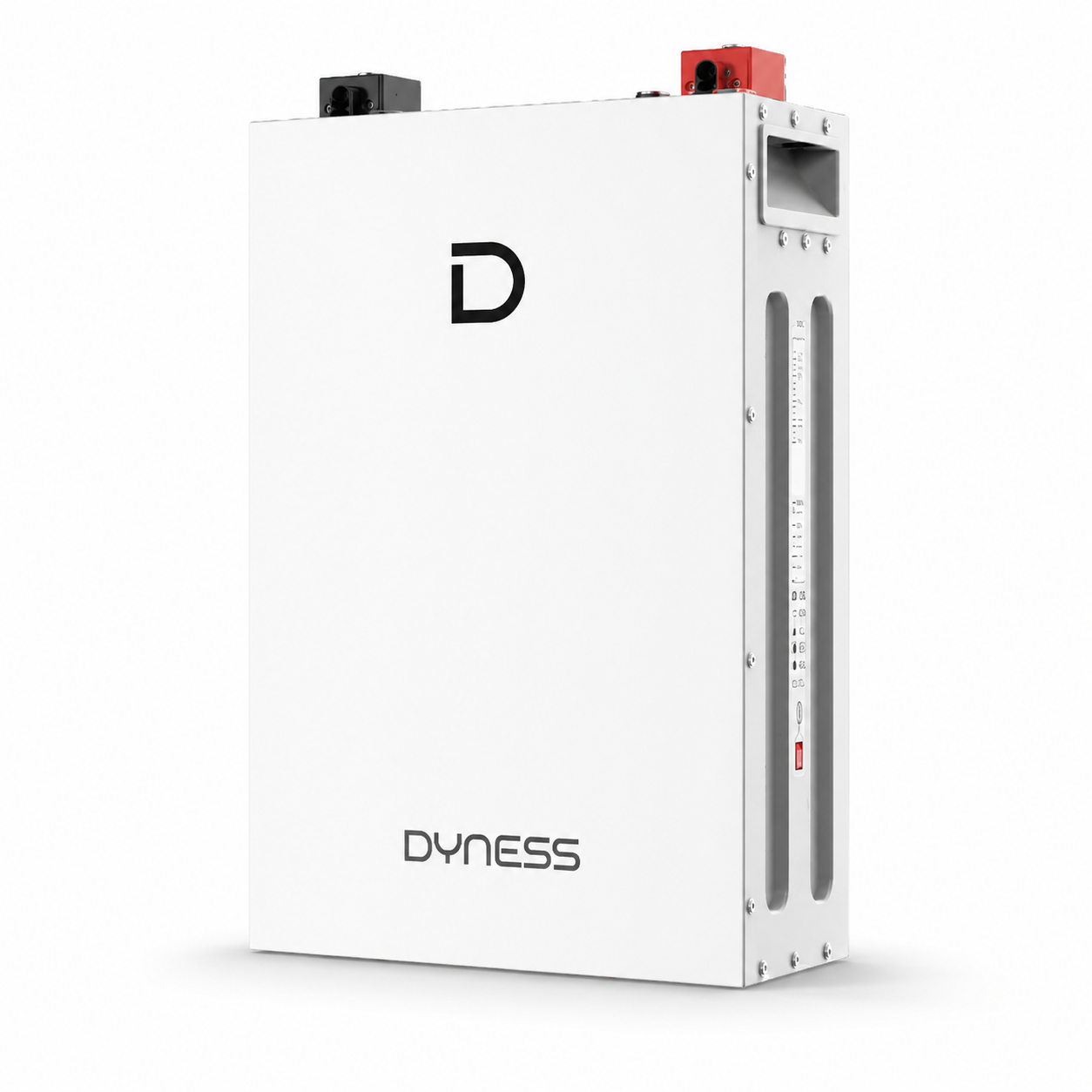

Dyness DL5.0F 51.2V 100Ah LiFePO₄ Lithium Battery
₨235,000.00
The Dyness DL5.0F 51.2V 100Ah Lithium Battery delivers 5.12kWh energy storage, 95% depth of discharge and more than 8,000 cycles. Featuring safe LiFePO₄ cells, 100A discharge capability, CAN/RS485 communication and flexible wall, rack or floor installation, it is an efficient and expandable battery solution for residential solar and backup power systems.
The Dyness DL5.0F is a compact, high-performance low-voltage lithium battery designed for residential solar energy storage and backup power systems. It uses safe and durable LiFePO₄ battery technology, providing a nominal capacity of 100Ah and total energy storage of 5.12kWh, with 4.864kWh usable energy.
With a maximum discharge current of 100A and maximum discharge power of 5.12kW, the DL5.0F can efficiently support household appliances and essential electrical loads. Its 95% depth of discharge allows users to access more stored energy while maintaining reliable battery performance.
The battery supports wall-mounted, rack-mounted and floor-mounted installation, making it suitable for different residential and commercial setups. Up to 50 battery units can be connected in parallel, allowing the storage system to expand from 5.12kWh up to 256kWh.
Built-in CAN and RS485 communication ensures compatibility with a wide range of popular solar inverter brands. Optional Wi-Fi, mobile app and web-based monitoring provide convenient access to battery performance and system status. The compact Cell-to-Pack design saves installation space, while optional built-in aerosol fire protection provides enhanced system safety.
| Specification | Details |
|---|---|
| Model | Dyness DL5.0F |
| Battery Type | LiFePO₄ – Lithium Iron Phosphate |
| Nominal Battery Energy | 5.12kWh |
| Usable Battery Energy | 4.864kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage Range | 44.8V–57.6V |
| Recommended Charge/Discharge Rate | 0.5C – 50A |
| Maximum Charge Rate | 0.75C – 75A |
| Maximum Discharge Rate | 1C – 100A |
| Peak Discharge Current | 110A for 15 seconds |
| Recommended Charge/Discharge Power | 2.56kW |
| Maximum Charge Power | 3.84kW |
| Maximum Discharge Power | 5.12kW |
| Depth of Discharge | 95% |
| Charging Temperature Range | 0°C to 55°C / Optional: -20°C to 55°C |
| Discharging Temperature Range | -20°C to 55°C |
| Net Weight | 41kg |
| Dimensions – W × H × D | 345 × 548 × 146mm |
| Protection Level | IP20 |
| Communication Ports | CAN / RS485 |
| Cycle Life | ≥8,000 cycles |
| User Interface | Wi-Fi and App – Optional |
| Safety Protection | Built-in aerosol fire extinguisher – Optional |
| Installation Options | Wall-mounted, rack-mounted or floor-mounted |
| Scalability | Up to 50 units connected in parallel |
| Maximum Storage Capacity | Up to 256kWh |
| Certifications | UN38.3, CE-EMC, CE-RED, IEC 62619, IEC 63056, RoHS, REACH |
| Compatible Inverters | SMA, Victron Energy, Ingeteam, Solis, GoodWe, Growatt, Solplanet, Luxpower, Deye, Sungrow and others |
