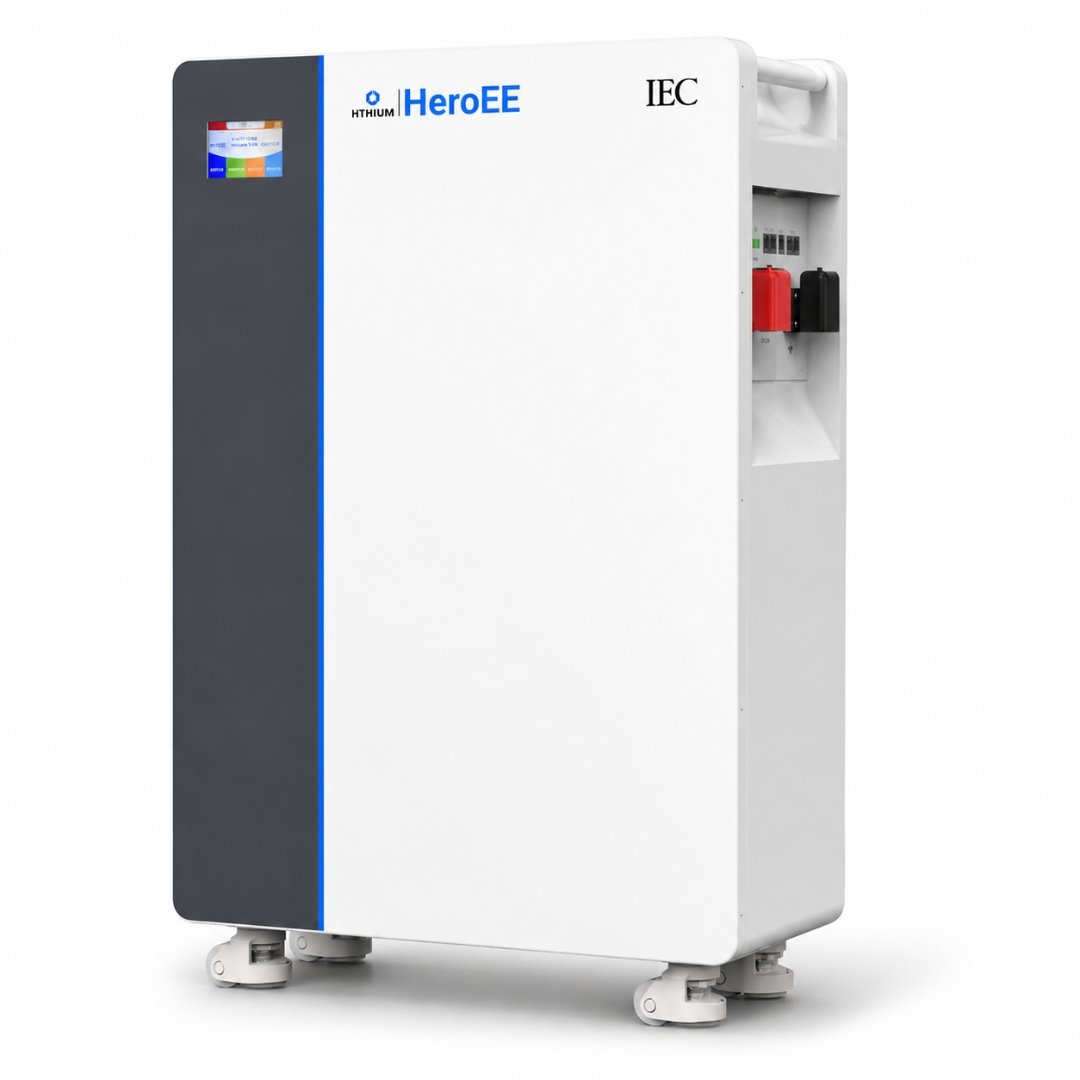

Hithium HeroEE 16 16KWh Lithium Battery Overview

The Hithium 16KWh 51.2V 314Ah Lithium Battery is a high-capacity LiFePO₄ solar battery for energy storage and backup applications. Its exact model is HeroEE 16.

The battery provides 16.0768kWh nominal energy from a 51.2V, 314Ah configuration. It is designed around a low-voltage architecture and includes an integrated battery management system for monitoring and protection.

The HeroEE 16 also supports parallel expansion, with up to 16 batteries connected in parallel for a maximum stated system capacity of 256kWh.

For customers searching for a Hithium 16KW Lithium Battery, the important distinction is that 16KW and 16KWh are not the same thing. This battery’s verified energy capacity is 16.0768kWh. The 16 in HeroEE 16 is the model designation, while kWh represents stored energy.

Key Features and Buyer Benefits

LiFePO₄ Battery Chemistry

The HeroEE 16 uses LiFePO₄ lithium battery chemistry, making it suitable for repeated energy-storage and solar backup applications.

LiFePO₄ technology is commonly used in stationary energy-storage systems where long service life and stable cycling performance are important.

16.0768kWh Nominal Energy

The battery has a 16.0768kWh nominal energy capacity.

This provides a substantial energy-storage reserve for compatible solar systems, helping store energy for use when solar generation is unavailable or when backup power is required.

51.2V Low-Voltage Architecture

The HeroEE 16 uses a 51.2V rated voltage, placing it in the low-voltage battery category.

Its specified charge and discharge voltage range is 43.2–58.4V. The connected inverter should therefore support the required low-voltage battery range before installation.

314Ah Battery Capacity

The battery provides 314Ah capacity at a 51.2V rated voltage.

Ah and kWh describe different characteristics of a battery. Ah represents electrical charge capacity, while kWh represents stored energy.

100A Recommended Current

The recommended charge and discharge current is 100A, while the maximum charge and discharge current is 200A.

This gives the battery substantial current capability for appropriately designed low-voltage energy-storage systems.

Built-In BMS

The battery incorporates a Battery Management System (BMS) for battery monitoring and protection.

The specified protection functions include overtemperature, undertemperature, overcharge, overcurrent, short circuit and undervoltage protection.

CAN, RS485 and RS232 Communication

The HeroEE 16 provides CAN, RS485 and RS232 communication ports.

These interfaces allow the battery to communicate with compatible energy-storage equipment. Compatibility should always be checked against the inverter’s supported battery protocol and communication requirements.

LCD Touchscreen

A built-in LCD touchscreen provides a local interface for accessing battery information.

Expandable Battery System

The HeroEE 16 supports up to 16 batteries in parallel, with a stated maximum combined capacity of 256kWh.

This allows the storage system to be expanded when the inverter, battery configuration and installation design support parallel operation.

Best For

The Hithium HeroEE 16 is suitable for:

• Residential solar backup
• Hybrid solar energy storage
• Low-voltage solar systems
• Commercial backup applications
• Larger energy-storage installations
• Systems requiring expandable battery capacity
• Solar installations using compatible CAN / RS485 / RS232 communication

Not Ideal For

The HeroEE 16 should not be selected without compatibility checking when:

• The inverter requires a high-voltage battery
• The inverter does not support the 51.2V battery architecture
• The inverter does not support the required 43.2–58.4V voltage range
• Required charge/discharge current exceeds the battery limits
• The inverter does not support the required BMS communication
• Installation conditions exceed the specified operating environment

Battery Capacity: kWh, Ah and Usable Energy Explained

A common source of confusion is the difference between kW, kWh and Ah.

kW

kW measures power — how much electrical power a system can deliver at a particular time.

kWh

kWh measures energy — how much energy is stored or used over time.

Ah

Ah represents electrical charge capacity.

For the HeroEE 16:

51.2V × 314Ah ÷ 1000 = approximately 16.08kWh

The product’s stated nominal energy is 16.0768kWh.

Important 16KW Clarification

Some customers search for Hithium HeroEE 16KW Lithium Battery, Hithium 16KW Lithium Battery or Hithium 16KW Lithium Battery Price in Pakistan.

For technical accuracy, the HeroEE 16 should be identified by its 16.0768kWh nominal energy, not as a battery with a verified 16kW power rating.

The HeroEE 16 is the model designation, while 16KWh refers to its approximate energy class.

Battery Chemistry and Cycle Life

The HeroEE 16 uses LiFePO₄ chemistry.

Its stated cell lifespan is 11,000 cycles under the specified test conditions of 25°C, 100% DoD, 0.5P and 70% SOH.

Actual battery service life can vary depending on operating temperature, charging and discharging conditions, cycling pattern, system configuration and installation environment.

Battery Management System and Safety

The built-in battery protection system includes:

• Overtemperature protection
• Undertemperature protection
• Overcharge protection
• Overcurrent protection
• Short-circuit protection
• Undervoltage protection

These functions help protect the battery during normal operation and abnormal electrical or temperature conditions.

Charging and Discharging Performance

The HeroEE 16 uses CC-CV charging mode.

Charging and Discharging Specifications

• Charge Voltage Range: 43.2–58.4V
• Discharge Voltage Range: 43.2–58.4V
• Recommended Charge Current: 100A
• Recommended Discharge Current: 100A
• Maximum Charge Current: 200A
• Maximum Discharge Current: 200A

These limits should be considered when selecting and configuring the connected inverter.

Inverter Compatibility

The Hithium HeroEE 16 should be paired with an inverter that supports a 51.2V low-voltage lithium battery system.

Before installation, check:

• Battery voltage compatibility
• Charge voltage range
• Discharge voltage range
• Maximum charge current
• Maximum discharge current
• BMS communication protocol
• CAN/RS485 communication requirements
• Inverter battery settings

Having a CAN or RS485 port does not automatically mean that every inverter is compatible. The exact communication protocol and battery profile should be confirmed before installation.

Hajvery Solar Energy can assist with battery and inverter compatibility checking.

Parallel Expansion

The HeroEE 16 supports up to 16 batteries in parallel.

With the maximum supported configuration, the stated total system capacity can reach 256kWh.

Parallel installation should be designed according to the battery configuration, inverter capability, communication requirements and applicable installation instructions.

Technical Specifications

The HeroEE 16 datasheet provides these product specifications, including the 110kg weight, 1520 × 240 × 781.2mm dimensions, IP20 rating and certification information.

Estimated Backup Time

Backup time depends on usable battery energy, inverter efficiency and actual connected load.

Using the nominal 16.0768kWh energy figure as a simple theoretical calculation:

These are theoretical estimates, not guaranteed backup times. Actual backup time will vary according to usable energy, inverter efficiency, battery operating limits and load conditions.

Lithium Battery Use in Pakistan

The Hithium HeroEE 16 can be used in compatible solar-storage systems for storing solar energy and providing backup power.

The battery’s specified charging temperature is 0°C to 40°C, while its discharging temperature range is -20°C to 40°C.

For installations in Pakistan’s warmer climate, appropriate installation conditions, ventilation and temperature management should be considered.

The inverter should also be configured according to the battery’s voltage, current and BMS communication requirements.

Hithium HeroEE 16 Price in Pakistan

The current price of Hithium 16KWh 51.2V 314Ah Lithium Battery in Pakistan is Rs. 570,000 per unit.

For customers searching hithium heroee 16kw lithium battery price in pakistan, the product is the HeroEE 16, with a verified nominal energy capacity of 16.0768kWh.

The current price of Hithium 16KWh 51.2V 314Ah Lithium Battery in Pakistan is Rs. 570,000 per unit.

For bulk, dealer and project requirements, contact Hajvery Solar Energy for current availability and compatibility guidance.

Hithium Battery Availability and Buying Guidance

Customers searching for hithium heroee 16kw lithium battery near me can check availability with Hajvery Solar Energy.

The HeroEE 16 provides 16.0768kWh nominal energy, 51.2V rated voltage and 314Ah capacity, making it important to match the battery with a compatible low-voltage inverter.

For buyers looking for hithium battery price, hithium heroee battery price in pakistan or hithium 16kwh battery, the exact model and capacity should be confirmed before purchase.

Warranty and After-Sales Support

The Hithium HeroEE 16 comes with a 5-year replacement warranty.

Warranty terms should be retained with the purchase documentation and checked at the time of purchase.

Hajvery Solar Energy is an Hithium authorized dealer and can provide product-related guidance and warranty support.

Before You Buy

Before purchasing the Hithium HeroEE 16, check the following:

• Model: HeroEE 16
• Energy: 16.0768kWh
• Voltage: 51.2V
• Capacity: 314Ah
• Chemistry: LiFePO₄
• Maximum Current: 200A
• Communication: CAN / RS485 / RS232
• Parallel Expansion: Up to 16 batteries
• Inverter Compatibility: Must be confirmed
• Installation Environment: Must remain within specified limits
• Warranty: 5-year replacement warranty

Frequently Asked Questions

What is the Hithium HeroEE 16 battery capacity?

The Hithium HeroEE 16 has 16.0768kWh nominal energy, 51.2V rated voltage and 314Ah capacity.

Is Hithium HeroEE 16 a 16KW battery?

No. 16KW and 16KWh are different measurements. The HeroEE 16 has a verified 16.0768kWh nominal energy capacity. The product model is HeroEE 16.

What is the Hithium HeroEE 16KW Lithium Battery Price in Pakistan?

If you are searching for hithium heroee 16kw lithium battery price in pakistan, the product being referred to is the Hithium HeroEE 16 16KWh 51.2V 314Ah Lithium Battery.

The current price of Hithium HeroEE 16 in Pakistan is Rs. 570,000 per unit.

What is the Hithium 16KW Lithium Battery Price?

For searches such as hithium 16kw lithium battery price, the correct product specification is 16.0768kWh nominal energy, not a 16kW battery power rating.

What are the Hithium HeroEE 16KW Lithium Battery Specifications?

The hithium heroee 16kw lithium battery specifications correspond to the HeroEE 16 model, which has 51.2V rated voltage, 314Ah capacity and 16.0768kWh nominal energy.

What is the Hithium HeroEE 16KW Lithium Battery Manual?

Customers searching hithium heroee 16kw lithium battery manual should identify the battery by its exact model, HeroEE 16, before using installation or operating documentation.

What is the Hithium HeroEE 16 User Manual?

The hithium heroee 16 user manual should be matched to the exact HeroEE 16 model and its system configuration.

What is the Hithium 16KW Lithium Battery Price in Pakistan?

The current price of Hithium 16KWh 51.2V 314Ah Lithium Battery in Pakistan is Rs. 570,000 per unit.

What is the Hithium 16KW Lithium Battery Specification?

The search term hithium 16kw lithium battery specifications refers to the HeroEE 16 product, whose verified nominal energy is 16.0768kWh.

What is the Hithium 16KW Lithium Battery Price?

The search phrase hithium 16kw lithium battery price is commonly used for this product, but the technical energy specification is 16.0768kWh.

What is the HeroEE Hithium Battery Price in Pakistan?

The current price of HeroEE Hithium battery in Pakistan is Rs. 570,000 per unit.

What is the Hithium Lithium Battery Price in Pakistan?

The current price of Hithium lithium battery in Pakistan for this HeroEE 16 model is Rs. 570,000 per unit.

What is the Hithium Lithium Battery Price List?

For the hithium lithium battery price list, product prices depend on the exact model and configuration. The supplied price for the HeroEE 16 is Rs. 570,000 per unit.

What is the Hithium Battery Datasheet?

Customers looking for a hithium battery datasheet should use the exact HeroEE 16 specification for this product. The key values are 16.0768kWh, 51.2V and 314Ah.

Is Hithium available in Pakistan?

Customers searching for hithium pakistan can contact Hajvery Solar Energy for product availability and buying guidance.

What is the Hithium 16KWh Battery?

The hithium 16kwh battery is the HeroEE 16, with 16.0768kWh nominal energy, 51.2V rated voltage and 314Ah capacity.

Does the Hithium HeroEE 16 support parallel batteries?

Yes. The HeroEE 16 supports up to 16 batteries in parallel, with a stated maximum combined capacity of 256kWh.

Buy Hithium HeroEE 16 from Hajvery Solar Energy

Hajvery Solar Energy provides the Hithium HeroEE 16 16KWh 51.2V 314Ah Lithium Battery for customers looking for residential, commercial and solar energy-storage solutions.

Hajvery Solar Energy is an Official Hithium Distributor and an Hithium authorized dealer, with product guidance and compatibility checking for suitable solar-storage systems.
