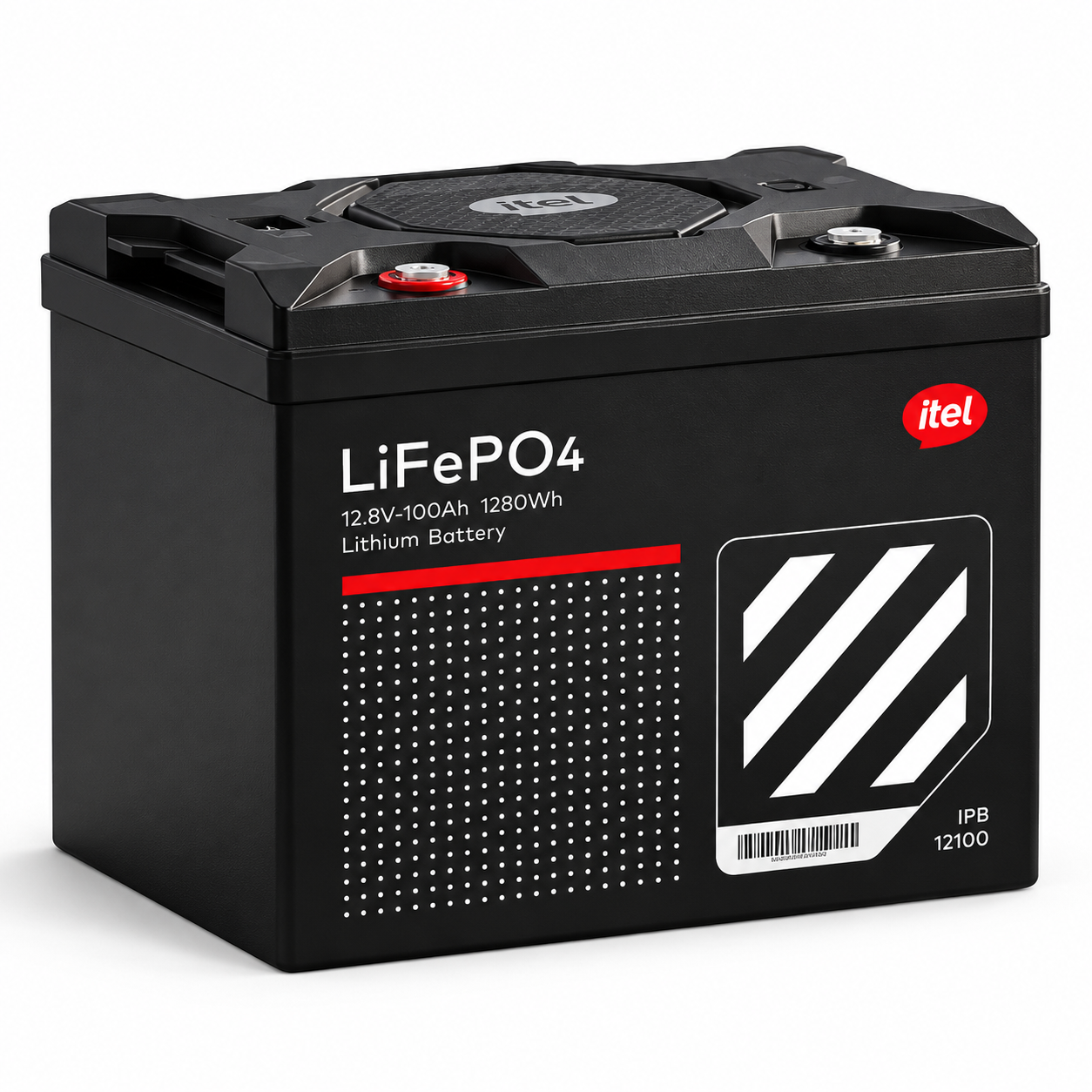

itel 1.28kWh 12.8V 100Ah LiFePO4 Lithium Battery Overview

The itel Energy IPB-12100 is a compact 100Ah LiFePO4 battery built around a 12.8V nominal battery architecture. With 1.28kWh nominal energy, it is suitable for low-voltage solar storage and backup applications where a compact lithium battery is preferred over conventional lead-acid storage.

The battery uses Class-A LiFePO4 cells and an intelligent software BMS designed to provide multiple protection functions. A digital indicator provides battery SOC and fault information, while Bluetooth connectivity allows battery information to be checked through the itel Energy APP.

The IPB-12100 also supports system expansion, with up to 16 batteries in parallel and up to 4 batteries in series. This makes the platform suitable for applications where storage capacity may need to be increased while maintaining the same battery architecture.

For buyers searching for an Itel 12V 100Ah LiFePO4 Lithium Battery, this model provides a 12.8V nominal configuration with 100Ah capacity.

Key Features and Buyer Benefits

LiFePO4 Battery Chemistry

The IPB-12100 uses LiFePO4 battery chemistry with Class-A cells. LiFePO4 is widely used for rechargeable energy-storage applications where long cycle life and controlled battery management are important.

The battery cell cycle life is rated at more than 3,000 cycles under the stated test conditions of 25°C, 0.5C/0.5C, 80% DOD and 80% EOL.

Intelligent BMS

An intelligent software BMS manages important battery protection functions. The IPB-12100 includes voltage protection, current protection, temperature protection and short-circuit protection.

This is important for a solar-storage battery because charging and discharging need to remain within the battery’s electrical and temperature limits.

Digital Battery Display

The built-in digital indicator provides battery SOC information and fault-code visibility. This gives users a direct way to check the battery condition without depending entirely on an external monitoring system.

Bluetooth and Mobile Monitoring

Bluetooth connectivity allows battery information to be checked through the itel Energy APP. The battery also supports OTA battery information functionality, providing a convenient monitoring option for users who want to check battery status through a mobile device.

Built-In AC Charger

The IPB-12100 includes a built-in AC charger and can be automatically woken by an inverter, removing the need for an additional external charger for the stated wake-up function.

Best For

The itel 12V 100Ah LiFePO4 battery is suitable for buyers who need compact low-voltage energy storage for applications such as:

• Small solar backup systems
• Low-voltage hybrid solar installations
• Home backup applications with compatible equipment
• Battery replacement projects where the electrical requirements match
• Small energy-storage systems
• Installations that may require parallel battery expansion

It can also be considered by installers looking for a 100Ah lithium battery with integrated BMS protection, Bluetooth monitoring and expansion capability.

Not Ideal For

The IPB-12100 should not be selected simply because its Ah rating matches another battery. The complete system needs to match the battery’s 12.8V nominal voltage, operating voltage range, charge/discharge limits and BMS requirements.

It may not be suitable when:

• The inverter requires a different battery voltage architecture.
• The required continuous load exceeds the battery’s discharge capability.
• The installation requires a communication protocol that has not been verified for this battery.
• The system requires a battery configuration beyond the stated series or parallel limits.
• The operating environment falls outside the battery’s specified temperature limits.

Before installation, confirm the battery and inverter electrical requirements together.

Battery Capacity: kWh, Ah and Usable Energy Explained

Battery capacity is commonly described using both Ah and kWh, but these measurements describe different things.

The IPB-12100 has a 100Ah nominal capacity and 12.8V nominal voltage, resulting in a stated 1.28kWh nominal energy.

A simple relationship is:

Voltage × Ah ÷ 1000 = nominal kWh

For this battery:

12.8 × 100 ÷ 1000 = 1.28kWh

The recommended depth of discharge is 90%. Using that figure as a calculation gives approximately 1.152kWh of energy before allowing for inverter losses and other system factors.

Actual available backup energy can vary with load, inverter efficiency, temperature, battery condition and operating limits.

Battery Chemistry and Cycle Life

The IPB-12100 uses LiFePO4 cells and provides a cell cycle life of more than 3,000 cycles under the specified test conditions.

The test condition matters when interpreting cycle-life figures. Real-world battery life can vary depending on operating temperature, charging and discharging patterns, depth of discharge, installation conditions and system settings.

For users searching for itel 12v 100ah lifepo4 price in pakistan, cycle life is one of the important factors to consider alongside voltage, usable energy, charge/discharge current and inverter compatibility.

Battery Management System and Safety

The intelligent BMS provides several protection functions built into the battery system.

Verified protection features include:

• Voltage protection
• Current protection
• Temperature protection
• Short-circuit protection

The battery also uses natural cooling and an ABS shell. A digital indicator is included for battery status information.

These functions help keep battery operation within controlled electrical and temperature conditions, but correct inverter configuration and installation remain important.

Charging and Discharging Performance

The battery has a maximum continuous charge current of 90A and a maximum continuous discharge current of 90A.

The specified peak charge current is 150A for 500ms, while the specified peak discharge current is also 150A for 500ms.

The operating voltage range is 11.6V–14.4V.

These limits should be considered when selecting an inverter, charger and connected load. A 100Ah rating alone does not determine how much power the battery can continuously deliver.

Inverter Compatibility

The IPB-12100 is a 12.8V low-voltage battery, so the connected inverter or energy-storage equipment must support the battery’s voltage range and current requirements.

Specific inverter-brand or model compatibility has not been established from the supplied product information, so compatibility should be confirmed using:

• Battery voltage requirements
• Maximum charge current
• Maximum discharge current
• BMS communication requirements
• Inverter battery architecture
• Correct cable and protection arrangement

For an itel 12v 100ah lifepo4 lithium battery replacement, confirm the electrical specifications of the existing battery and the replacement system before installation. The word “replacement” in a search phrase does not by itself mean that every existing 12V system is compatible.

Hajvery Solar Energy can help buyers check the required battery and inverter specifications before purchase.

Parallel Expansion

The IPB-12100 supports up to 16 units in parallel and up to 4 units in series.

Parallel expansion can be useful when additional storage capacity is required while maintaining the same nominal voltage architecture.

Series and parallel configurations should always follow the battery’s electrical limits and the requirements of the connected inverter or energy-storage system.

Estimated Backup Time

Backup duration depends on the usable battery energy, inverter efficiency and actual connected load.

Using the calculated 1.152kWh energy based on 1.28kWh nominal energy and the recommended 90% depth of discharge, the following are theoretical battery-energy estimates before inverter/system losses:

*Estimated, not guaranteed runtime. Actual backup time can be lower because of inverter losses, battery operating limits, temperature, battery age and changing load conditions. The continuous discharge limit should also be respected.

Technical Specifications

Technical values above are taken from the target model’s two-page product sheet.

Lithium Battery Use in Pakistan

For Pakistani solar users, a compact 12V lithium battery can be useful in applications where space, battery weight and cycling requirements need to be considered together.

The IPB-12100 weighs 10kg and measures 168 × 262 × 221mm, making it a relatively compact storage option for suitable low-voltage installations.

Temperature is also important. The specified charging temperature is 0°C to +55°C, while discharge operation is specified from -20°C to +55°C. The recommended operating temperature is 15°C to +35°C.

For installations in hot areas, proper ventilation, correct charging settings and suitable placement should be considered.

Price in Pakistan

The current price of itel Energy IPB-12100 12.8V 100Ah LiFePO4 Lithium Battery in Pakistan is Rs. 55,000.00 per unit.

Buyers looking for itel 12v 100ah lithium battery price in pakistan can use the exact battery model and electrical specifications when comparing current market offers.

The itel lithium battery price in pakistan can vary between models because voltage, capacity, energy, BMS features and system architecture are not the same across every battery.

For current availability and quantity-based requirements, contact Hajvery Solar Energy.

Hajvery Compatibility and Authenticity Check

Hajvery Solar Energy is an itel Official Distributor, helping customers source genuine itel energy products and obtain applicable product support.

For buyers searching for Itel 12V 100Ah LiFePO4, confirm the exact IPB-12100 model before purchase. Battery voltage, Ah capacity, charge/discharge current and inverter compatibility should be checked before installation.

As an itel authorized dealer, Hajvery Solar Energy can help buyers review the battery requirements against the intended solar or backup system.

For an itel 12v 100ah lifepo4 battery replacement, check the existing system’s voltage, charging limits and battery requirements rather than matching the Ah rating alone.

Hajvery Solar Energy is an Official itel Distributor for this product category and can assist buyers with product and compatibility guidance.

Buying from Hajvery Solar Energy, an authorized itel dealer, provides a direct route for product, compatibility and applicable warranty guidance.

Warranty and After-Sales Support

This product comes with a 3-year service warranty.

Warranty coverage is service-based and should not be described as a replacement warranty. Buyers should confirm the applicable service requirements and claim process with Hajvery Solar Energy before purchase.

Hajvery Solar Energy can also assist with product identification and compatibility checks when planning a battery installation or replacement.

Before You Buy

Before purchasing the IPB-12100, check these points:

• Confirm that your inverter supports a 12.8V nominal lithium battery.
• Check the required continuous charge and discharge current.
• Confirm the required battery capacity for your connected loads.
• Check BMS and communication requirements where applicable.
• Confirm whether you need one battery or a series/parallel configuration.
• Check installation temperature and ventilation conditions.
• Confirm the exact model IPB-12100 before ordering.
• For replacement applications, compare the existing battery’s voltage and electrical limits rather than Ah rating alone.

FAQs

What is the capacity of the itel IPB-12100?

The IPB-12100 has a 100Ah nominal capacity and 1.28kWh nominal energy at a nominal voltage of 12.8V.

Is the itel IPB-12100 a LiFePO4 battery?

Yes. The IPB-12100 uses LiFePO4 battery chemistry with Class-A battery cells.

What is the itel 12v 100ah lifepo4 lithium battery price?

The current price of the IPB-12100 is Rs. 55,000.00 per unit in Pakistan.

What is the itel 12v 100ah lifepo4 battery price?

The current price for this 12.8V 100Ah LiFePO4 battery is Rs. 55,000.00 per unit.

Does the battery support Bluetooth monitoring?

Yes. The battery has Bluetooth connectivity and supports checking battery information through the itel Energy APP.

How many batteries can be connected together?

The IPB-12100 supports up to 16 batteries in parallel and up to 4 batteries in series, subject to the requirements of the complete system.

What warranty comes with the battery?

The IPB-12100 comes with a 3-year service warranty.

Can this battery replace another 12V 100Ah battery?

It can be considered for a compatible replacement application, but the inverter, charger and system must support the battery’s 12.8V voltage, charge/discharge limits and other electrical requirements. Matching Ah capacity alone is not sufficient.

Buy itel IPB-12100 from Hajvery Solar

Choose Hajvery Solar Energy for the itel Energy IPB-12100 12.8V 100Ah LiFePO4 Lithium Battery for suitable solar-storage and backup applications in Pakistan.

Hajvery Solar Energy provides product guidance, compatibility checking and applicable warranty support for buyers looking for itel lithium battery solutions.

For current availability, installation requirements and dealer enquiries, contact Hajvery Solar Energy.
