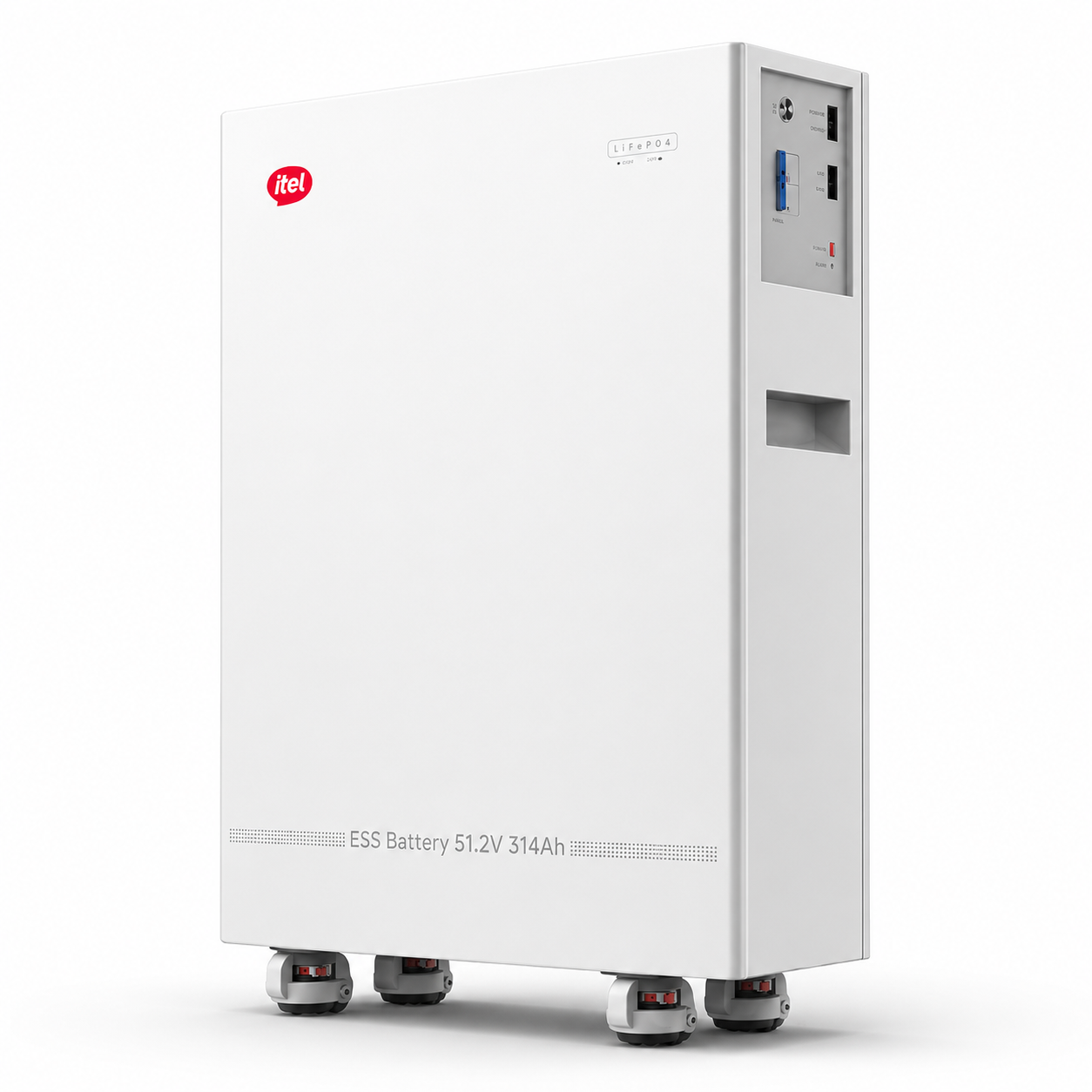

itel 16KWh 51.2V 314Ah Lithium Battery Overview

The itel 16KWh 51.2V 314Ah Lithium Battery is a high-capacity LiFePO4 lithium battery for solar energy storage and backup applications. Its 16 kWh nominal energy capacity provides a substantial storage base for homes, commercial premises and other systems that need battery-backed energy.

With a 51.2V nominal voltage and 314Ah capacity, this battery operates within a 43.2–57.6V voltage range. The system supports up to 32 battery units in parallel, allowing larger energy-storage systems to be configured when the installation requires additional capacity.

The battery is equipped with an intelligent software BMS which includes a number of protection algorithms, and CAN2.0 and RS485 communication options offer a suitable interface for connecting to compatible inverter and energy-storage systems.

For buyers searching for the Itel 51.2V 314Ah 16KWH IP20 Lithium Battery, the key specifications are its 16 kWh energy capacity, 51.2V architecture, 314Ah capacity and IP20 enclosure.

Key Features and Buyer Benefits

LiFePO4 Battery Chemistry

The battery is made up of LiFePO4 cells and therefore has a lithium-based energy-storage system which is intended to be charged and discharged repeatedly. The battery cells have a cycle life of more than 6000 cycles under the conditions stated in the specification.

For buyers looking for an itel 16kwh lithium battery review, cycle-life conditions, usable depth of discharge, operating temperature and actual load should all be considered rather than looking at the cycle number alone.

High 16 kWh Energy Capacity

With 16 kWh nominal energy, the battery provides substantial storage for solar backup applications. Actual backup duration depends on the connected load, inverter conversion losses, battery operating limits and system settings.

A depth of discharge of 90% is recommended, which gives a useful basis for estimating the available energy of the battery while still keeping within the manufacturer’s suggested operating limit.

High Charge and Discharge Capability

The battery can handle a maximum continuous charge current of 157 amperes and a maximum continuous discharge current of 157 amperes.

The maximum charge current is 175 amperes for one second and the peak discharge current is 175 amperes for three seconds; these short-duration peak values should not be regarded as continuous operating currents.

Intelligent Software BMS

The battery incorporates an intelligent software Battery Management System (BMS) with more than 50 protection algorithms for safety and longer battery life.

Protection functions include:

• Voltage protection
• Temperature protection
• Short-circuit protection
• Current protection

A built-in circuit breaker is also provided.

Automatic Parallel Addressing

The battery supports up to 32 parallel units. Automatic addressing removes the need for a manual DIP-switch setup for the parallel address.

The system has the further capability of automatically designating which batteries are to act as masters and which as slaves, thus making it easier to expand when a number of compatible battery units are installed.

Best For

The itel 16KWh 51.2V 314Ah Lithium Battery is suitable for:

• Residential solar backup systems
• Hybrid solar installations
• Commercial energy storage
• Load-shedding backup applications
• Any systems that use a lithium battery of 51.2 volts
• Larger installations that may require parallel battery expansion
• Solar systems which use compatible inverter communication via CAN2.0 or RS485

Installers who are seeking a 48-volt lithium battery class solution with a 51.2-volt nominal architecture and greater energy capacity may also take this into consideration.

Not Ideal For

This battery should not be selected simply because its energy capacity matches a project requirement. The inverter and battery must also match in terms of battery voltage, charge/discharge current limits and BMS communication.

It should not be used in cases where an outdoor enclosure with an ingress-protection rating higher than IP20 is required, unless the entire installation includes the necessary environmental protection.

It is also necessary to check the compatibility before connecting the battery to the inverter, especially in cases where CAN or RS485 communication is needed.

Battery Capacity: kWh, Ah and Usable Energy Explained

The 16 kWh and 314Ah ratings describe different aspects of the battery.

The electrical charge capacity of a battery is measured in ah (ampere-hours) and the stored energy in kWh (kilowatt-hours). The two should not be regarded as equivalent values.

The basic relationship is:

Voltage × Ah ÷ 1000 = nominal kWh

For this battery:

51.2V × 314Ah ÷ 1000 = approximately 16.08 kWh

The manufacturer’s stated nominal energy is 16 kWh, which remains the primary product specification.

With a 90% recommended depth of discharge, the theoretical energy available within that recommended operating range is approximately 14.4 kWh before accounting for inverter losses and other system factors.

Battery Chemistry and Cycle Life

The battery is based on LiFePO4 chemistry and uses Class-A battery cells.

The specification for the battery cell’s cycle life is more than 6000 cycles when tested at 25°C under the given 0.5C/0.5C conditions for charging and discharging, at 80% depth of discharge and 80% end of life.

The real service life will depend on the operating temperature, the charge and discharge patterns, the depth of discharge, the conditions of installation, and the system settings.

Battery Management System and Safety

The BMS incorporated manages key battery protection functions and helps to ensure safer operation when the battery is being charged or discharged.

The available protection functions include:

• Overvoltage protection
• Undervoltage protection
• Temperature protection
• Overcurrent protection
• Short-circuit protection

The battery is also fitted with a circuit breaker as well as LED indicators showing the state of the battery, the operation and the alarm information.

Charging and Discharging Performance

The battery provides a 157A maximum continuous charge current and 157A maximum continuous discharge current.

The peak current capacity is 175 amperes for a period of 1 second when charging and 175 amperes for 3 seconds when discharging.

When setting up the battery for regular solar-storage use, the recommended 90% depth of discharge should be taken into account.

Inverter Compatibility

When checking battery compatibility, you should use the full inverter and battery requirements not just the voltage.

Important points include:

• 51.2V nominal battery architecture
• 43.2–57.6V operating voltage range
• Maximum inverter charge current
• Maximum inverter discharge current
• CAN2.0 communication
• RS485 communication
• Supported BMS communication protocol
• Compatible battery settings and system configuration

For buyers searching for the itel 51 2 v 314ah 16kwh ip20 lithium battery spec, these electrical and communication characteristics are important when matching the battery with a hybrid inverter.

Hajvery Solar will help buyers to check whether a product is compatible before they buy it.

Parallel Expansion

The battery supports up to 32 parallel units.

Addresses can be assigned by the automatic parallel-addressing system without it being necessary to use a manual DIP-switch setup, and the system also includes the facility for automatic master/slave assignment.

As a result, the battery is appropriate for use in energy-storage projects in which a single 16 kWh battery is not sufficient to provide the necessary total storage capacity.

Technical Specifications

Estimated Backup Time

The length of time that the backup lasts will depend on the actual load connected, the efficiency of the inverter, the limits within which the battery is operating and other conditions affecting the system.

Using the 16 kWh nominal energy and 90% recommended depth of discharge, the theoretical energy available within the recommended operating range is approximately 14.4 kWh before inverter losses.

These are estimated battery-side runtimes, not guaranteed backup times. Actual runtime will be lower or otherwise different depending on inverter efficiency, load variation, battery temperature, battery condition and operating limits.

Lithium Battery Use in Pakistan

For solar systems in Pakistan, battery selection should account for load-shedding requirements, daily cycling, installation temperature, ventilation and inverter compatibility.

The battery’s specified discharge temperature range extends from -20°C to +60°C, while the recommended operating temperature is 15°C to +35°C. Proper installation conditions remain important, particularly during hot summer periods.

Because this battery has an IP20 enclosure, it should be installed in an appropriate protected environment rather than being treated as an outdoor weatherproof battery.

itel 16KWh Lithium Battery Price in Pakistan

The current price of the itel 16KWh 51.2V 314Ah Lithium Battery in Pakistan is Rs. 595,000 per unit.

For buyers searching for itel 16kwh lithium battery price in pakistan, itel 51 2 v 314ah 16kwh ip20 lithium battery price, itel 51 2 v 314ah 16kwh price in pakistan, or itel 51 2 v 314ah 16kwh battery price, the current Hajvery Solar price is Rs. 595,000 per unit.

Hajvery Solar Energy is an itel Official Distributor for this lithium battery range and can assist dealers, installers and customers with product availability and compatibility enquiries.

itel 16KWh 51.2V 314Ah Lithium Battery Warranty

This battery comes with a 5-year replacement warranty.

For buyers searching for itel 16kwh lithium battery warranty, the applicable coverage for this product is a 5-year replacement warranty. Warranty claim requirements should be confirmed with Hajvery Solar before purchase.

As an itel authorized dealer, Hajvery Solar Energy can help customers with product and warranty guidance.

Hajvery Compatibility and Authenticity Check

Hajvery Solar Energy is an Official itel Distributor for this lithium battery.

Before purchase, customers should confirm the exact model, battery voltage, capacity, inverter compatibility and BMS communication requirements. Serial and warranty details should also be checked as part of the purchasing process.

Buying through Hajvery Solar Energy, an authorized itel dealer, provides a direct route for product, compatibility and warranty guidance.

Before You Buy

Before purchasing the itel 16KWh 51.2V 314Ah Lithium Battery, check:

• Battery voltage: 51.2V nominal
• Energy requirement: 16 kWh nominal
• Inverter compatibility
• Maximum charge current
• Maximum discharge current
• CAN2.0 / RS485 BMS communication
• Required number of parallel batteries
• Installation environment
• IP20 protection requirement
• Available space: 230 × 548 × 840 mm
• Battery weight: 120 kg
• Warranty requirements

Frequently Asked Questions

What is the capacity of the itel 16KWh lithium battery?

The battery has a 16 kWh nominal energy capacity and 314Ah nominal capacity at 51.2V.

What battery chemistry does it use?

The battery uses LiFePO4 battery cells.

What is the operating voltage of this battery?

The nominal voltage is 51.2V, with an operating voltage range of 43.2–57.6V.

How many batteries can be connected in parallel?

Up to 32 units can be connected in parallel, subject to compatible system configuration.

What communication ports are available?

The battery provides CAN2.0 and RS485 communication.

What is the cycle life of the battery?

The battery-cell cycle life is specified at more than 6000 cycles under the stated 25°C, 0.5C/0.5C, 80% DOD and 80% EOL test conditions.

What is the current price of the itel 16KWh battery in Pakistan?

The current price is Rs. 595,000 per unit.

What warranty does the itel 16KWh battery have?

The battery comes with a 5-year replacement warranty.

Buy itel 16KWh 51.2V 314Ah Lithium Battery from Hajvery Solar

The itel 16KWh 51.2V 314Ah Lithium Battery is designed for high-capacity solar energy storage, backup and compatible hybrid inverter systems. Hajvery Solar Energy provides product guidance, compatibility checking and warranty support for customers, installers and dealers.

For buyers researching an itel 16kwh lithium battery review, the most important points to evaluate are its 16 kWh capacity, 51.2V architecture, 314Ah capacity, LiFePO4 chemistry, 90% recommended DOD, 157A continuous current capability, CAN/RS485 communication and parallel expansion support.
