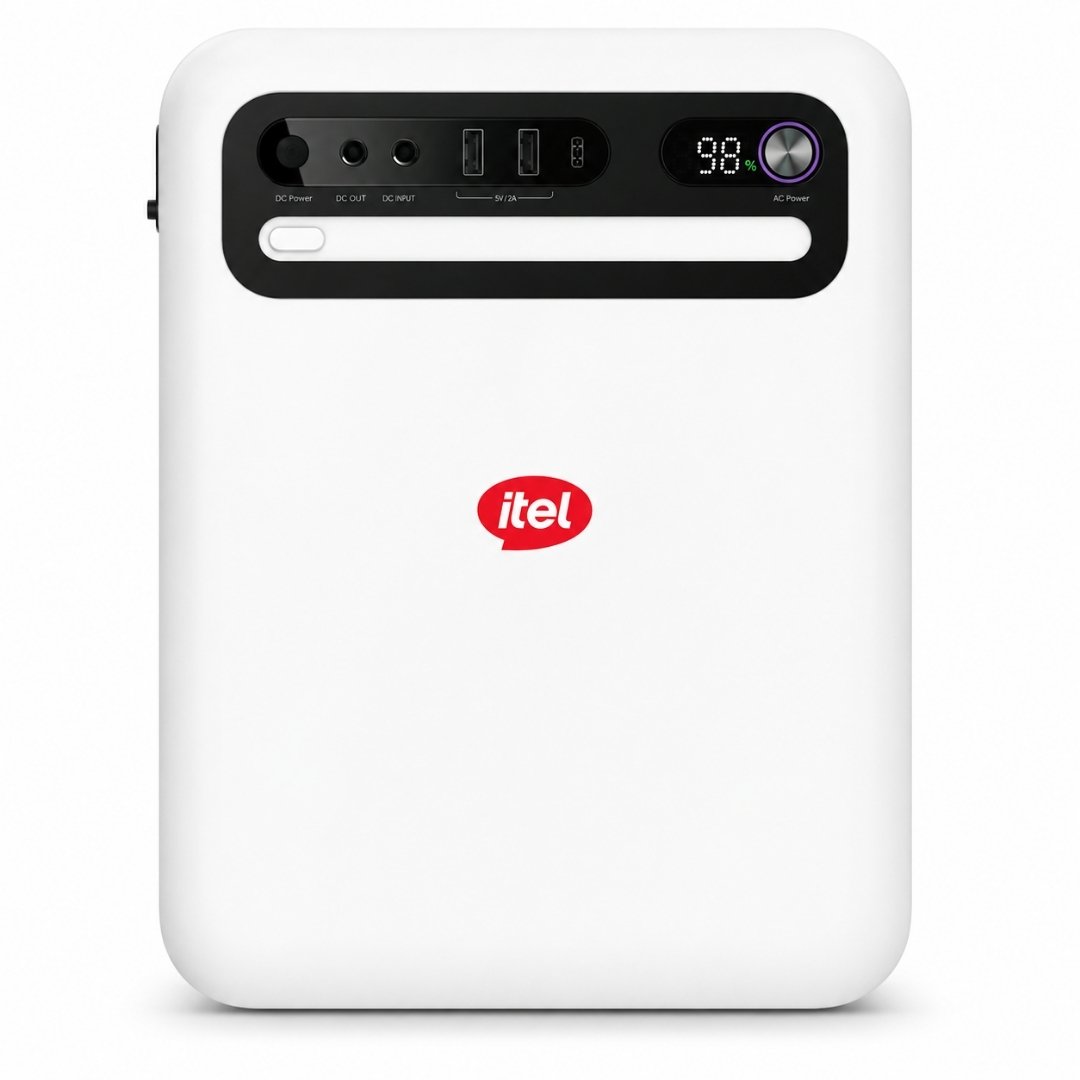

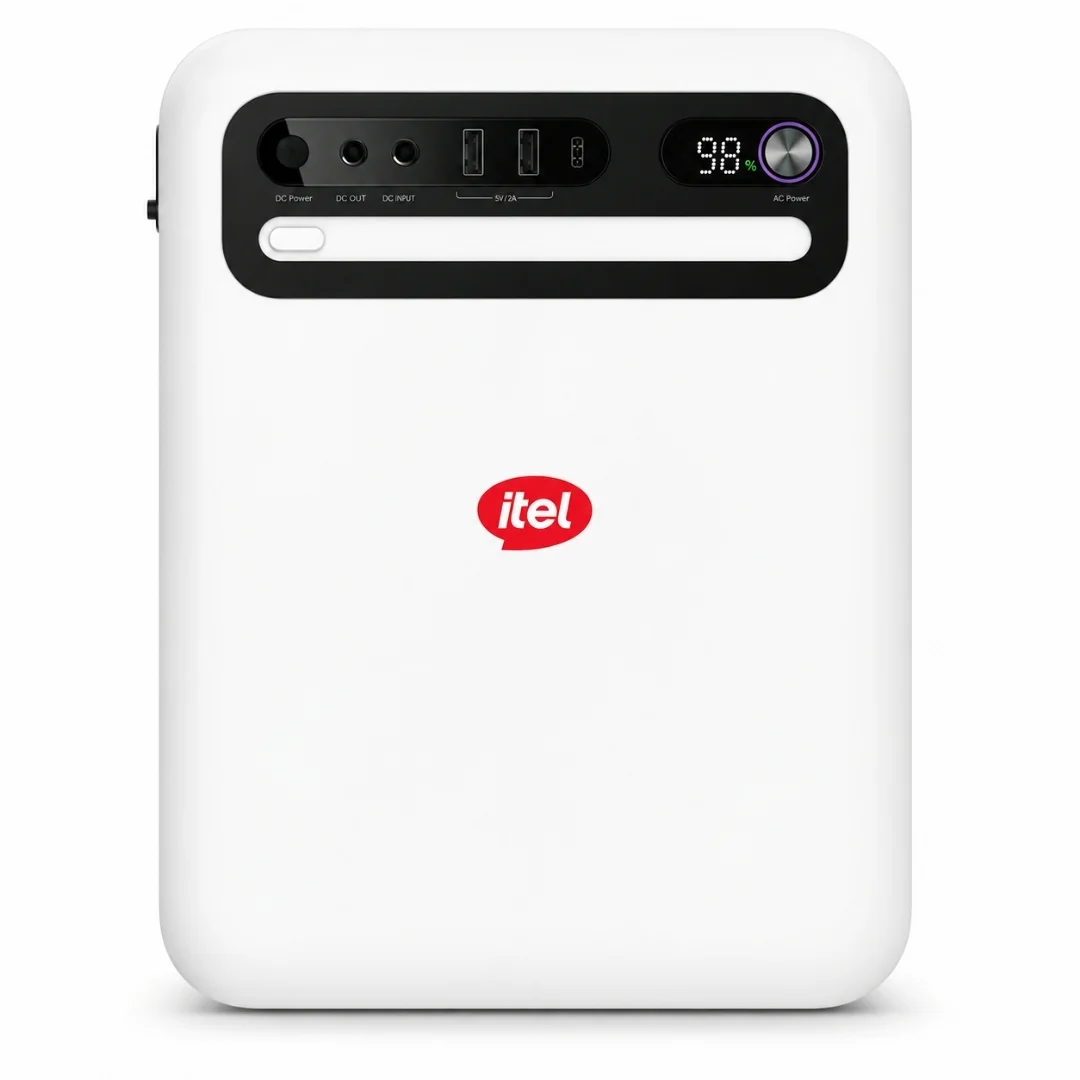

itel 1000Wh 3.2V 314Ah Power Rover Lithium Battery Overview

The itel Power Rover IESS-05K10U is a compact portable power station built around a 1000Wh LiFePO4 lithium battery. It combines energy storage, AC inverter output and solar charging into one plug-and-play household ESS.

The system is equipped with a battery capacity of 314Ah and has a rated battery voltage of 3.2VDC, and it features a 500W hybrid inverter to supply power to AC loads. It also has a 400W PV MPPT controller, which enables charging of the battery using solar energy as well as through the grid. The system can take in AC power in the range of 90 to 280Vac and gives a nominal AC output of 230Vac.

For users searching for an itel power rover portable power station, this model offers a practical combination of battery storage, solar charging and backup output without requiring a separate battery, inverter and MPPT controller installation.

Key Features and Buyer Benefits

1000Wh LiFePO4 Battery

The 1000Wh lithium battery stores energy for use in backup applications; the LiFePO4 chemistry is intended to offer high safety and a long service life, and the integrated battery system ensures that the entire setup remains compact.

6000-Cycle Battery Life

The battery is specified to last for 6000 cycles; however, the real lifespan will vary according to the operating conditions, the way it is charged, the temperature and how it is used.

500W Pure Sine Wave Inverter

The 500W hybrid inverter has a nominal output of 230Vac and a maximum apparent output power of 600VA. Because it provides a pure sine wave, the system can be used with compatible household electronics and appliances within its rated limits.

400W Solar MPPT Controller

The Power Rover can be charged using solar panels via its built-in 400W PV input and is equipped with one MPPT tracker, has a maximum PV input voltage of 60V, an MPPT voltage range of 11 to 60V, and a maximum PV input current of 15A.

Fast UPS-Class Switching

The switching time for the AC output is no more than 20 milliseconds, which enables the system to move into backup operation rapidly should there be a change in grid power, even though the actual behaviour of the appliances can differ according to the load that is connected.

Grid and Solar Charging

The Power Rover is capable of being charged using either solar power or from the grid. The maximum AC input power when in bypass mode together with battery charging is 1000W, the maximum AC input current being 6A.

Best For

The itel Power Rover is suitable for:

• Home backup power for selected low-power appliances and electronics
• Users looking for a portable power station in Pakistan
• Load-shedding backup for compatible household loads
• Users who want solar charging without installing a complete fixed solar system
• Small electronic devices requiring portable backup power
• Buyers who prefer a plug-and-play energy storage system
• Applications where compact battery storage and AC backup are more practical than a larger fixed battery system

Not Ideal For

The itel Power Rover is not designed to replace a high-capacity residential solar system.

Since the nominal AC output is 500W, the unit should not be used with appliances or with a combination of appliances that continuously need more than its rated output power. The maximum apparent output power is 600VA, and there are specific overload limits depending on the duration of the load.

It is also unsuitable for use in cases where a large battery bank, a high-power solar array, or an AC load exceeding the system’s specified limits is required.

Battery Capacity: 1000Wh and 314Ah Explained

The Power Rover is equipped with a battery capacity of 314Ah and has an energy rating of 1000Wh.

The electrical charge capacity is what Ah indicates, while Wh refers to the amount of energy stored. For this model, the 1000Wh battery energy given is the main figure when it comes to understanding its storage capacity.

The amount of backup time the system can offer may reach two hours, but this will depend on the load that is connected and the operating conditions. The greater the load, the more quickly the stored energy will be used up, and the actual running time will also be influenced by the losses involved in the inverter’s conversion process and by the battery’s operating conditions.

Battery Chemistry and Cycle Life

The battery is based on LiFePO4 chemistry, a form of lithium battery technology which is generally used for energy storage due to its safety and the fact that it has a long cycle life.

The Power Rover is specified to have a 6000-cycle life, but the real service period will vary according to the way the battery is operated and the conditions under which it is charged and discharged as well as the temperature and the pattern of its use.

Battery Management and Safety

The system includes protection functions for safer operation. The specified protection features include battery fuse, PV over-voltage protection, overload protection, short-circuit protection, over-temperature protection and surge protection. Grid over-voltage protection is also provided.

The unit is equipped with intelligent fan cooling and has a noise level that is specified at less than 45 dB when measured at a distance of 1 metre; its operating temperature range is from -10°C to +60°C and the power output is reduced above 40°C.

Charging and Discharging Performance

The Power Rover supports both solar PV charging and grid charging.

Solar charging is handled through the integrated 400W MPPT controller, while AC charging can use up to 1000W maximum AC input power in bypass mode plus battery charging. The system can also fully charge the battery in approximately 2 hours under the specified rapid-charging conditions.

The inverter has a nominal output power of 500W and a maximum apparent power of 600VA; its ability to handle an overload depends on the level of the load and the duration.

DC Outputs and Portable Power Features

The Power Rover includes dedicated DC charging ports for ordinary electronic devices.

It includes:

• 2× USB-A + 1× USB-C: 5V/3A, maximum 15W
• 2× DC5521: 12V/5A, maximum 60W

The outputs mean that the unit can be used to power small electronics and DC devices that are compatible with it without having to depend completely on its AC output.

Inverter Compatibility

The Power Rover is not a conventional standalone battery meant for use with any external inverter, but rather an integrated system for energy storage and inversion.

Its internal system combines the LiFePO4 battery, 500W hybrid inverter and 400W MPPT controller. Buyers should therefore consider the complete IESS-05K10U system and its specified output and charging limits when planning an application.

Technical Specifications

Battery

• Model: IESS-05K10U
• Battery Type: LiFePO4
• Rated Battery Voltage: 3.2VDC
• Rated Capacity: 314Ah
• Battery Energy: 1000Wh
• Cycle Life: 6000 cycles

Solar PV Input

• Maximum PV Input Power: 400W
• Maximum PV Input Voltage: 60V
• MPPT Voltage Range: 11–60V
• Maximum PV Input Current: 15A
• Number of MPPT Trackers: 1
• MPP Tracking Efficiency: ≥87.0%

AC Input

• Input Voltage Range: 90–280Vac
• Maximum AC Input Power: 1000W
• Maximum AC Input Current: 6A
• Nominal Frequency: 50Hz/60Hz
• Maximum Grid Input Voltage: 380Vrms

AC Output

• Nominal AC Output Power: 500W
• Maximum Output Apparent Power: 600VA
• Nominal AC Output Voltage: 230Vac
• The nominal output current in alternating current is 2.2 amperes.
• Maximum AC Output Current Limit is 3.0A.
• Total Voltage Harmonic Distortion: <3%
• Nominal Frequency: 50Hz
• Switching Time: ≤20ms
• Surge Power: 600VA

General

• Cooling: Intelligent Fan Cooling
• Noise: <45dB at 1m
• Operating Temperature: -10°C to +60°C
• Maximum Operating Altitude: 4000m
• SOC Display: LED
• Authentication: IEC 62619 / IEC 62368 / UN38.3
• Battery Fuse: Yes
• PV Over-Voltage Protection: Yes
• Overload Protection: Yes
• Short-Circuit Protection: Yes
• Over-Temperature Protection: Yes
• Surge Protection: AC Type III / DC Type III
• Grid OVP: Yes

Estimated Backup Time

The Power Rover can provide backup power for up to two hours. The actual duration for which it operates will vary according to the amount of power being drawn, the condition of the battery, the efficiency of the inverter and the conditions under which it is being used.

The stated 1000Wh energy capacity and 500W nominal inverter output make the unit suitable for selected low-power backup applications rather than heavy continuous loads.

Estimated runtime is not guaranteed.

Lithium Battery Use in Pakistan

The itel Power Rover can be useful in Pakistan for everyday backup requirements where load shedding affects small household electronics and essential low-power devices.

Because of its compact design, integrated battery and inverter, capability of being charged by solar power, and quick AC switching it is suitable for people who want a smaller backup system and do not wish to install a complete fixed battery bank.

It is important for summer use that the ventilation is adequate and that the correct installation conditions are met. The specified temperature range for operation is from -10°C to +60°C, and the power has to be reduced above 40°C, therefore the unit must be operated within the environmental limits stated.

itel Power Rover Price in Pakistan

The current price of the itel Power Rover IESS-05K10U in Pakistan is Rs. 70,000.00.

The itel power rover price can vary in the market depending on availability and seller conditions. Buyers should confirm the latest availability before ordering.

Hajvery Solar Energy is an itel Official Distributor and provides product guidance for customers looking for genuine itel energy products.

Hajvery Compatibility and Authenticity Check

Before you buy the itel Power Rover you should make sure of the exact model IESS-05K10U, the backup load needed, the method you intend to use for charging and the requirements of the appliance you plan to connect.

As an itel authorized dealer, Hajvery Solar Energy can help buyers understand the product’s intended use and compatibility requirements before purchase.

For customers searching for itel power rover specifications, the key points to check are its 1000Wh battery energy, 314Ah capacity, 500W AC output, 400W PV input and ≤20ms switching time.

Hajvery Solar Energy is also an Official itel Distributor for customers looking for the itel power rover portable power station in Pakistan.

Warranty and After-Sales Support

The itel Power Rover IESS-05K10U comes with a 1-year replacement warranty.

Hajvery Solar Energy, as an authorized itel dealer, can guide customers regarding applicable product and warranty support. Warranty claims should be handled according to the applicable warranty terms and requirements.

Before You Buy

Before purchasing the itel Power Rover, check:

• Required backup load
• Maximum continuous appliance load
• Solar charging requirements
• PV voltage and current limits
• AC input requirements
• Expected backup duration
• Operating temperature and ventilation
• Required DC charging outputs
• Warranty requirements

When deciding which appliances to operate at the same time, you should take the nominal AC output of 500W into account.

Frequently Asked Questions

What is the itel Power Rover?

The itel Power Rover IESS-05K10U is a portable power station and household ESS combining a 1000Wh LiFePO4 battery, 500W hybrid inverter and 400W PV MPPT controller.

What is the itel Power Rover battery capacity?

The system has a 314Ah rated battery capacity and 1000Wh battery energy.

What battery chemistry does the Power Rover use?

It uses a LiFePO4 lithium battery.

How much AC power can the Power Rover provide?

It provides 500W nominal AC output power with a maximum output apparent power of 600VA.

Does the itel Power Rover support solar charging?

Yes. It includes a 400W PV MPPT controller, with a maximum PV input voltage of 60V and maximum PV input current of 15A.

What is the itel Power Rover price in Pakistan?

The current price of the itel Power Rover IESS-05K10U in Pakistan is Rs. 70,000.00.

What warranty does the itel Power Rover have?

The itel Power Rover comes with a 1-year replacement warranty.

What is the switching time of the Power Rover?

The system has a specified ≤20ms switching time for its AC output.

Buy itel Power Rover from Hajvery Solar

The itel Power Rover IESS-05K10U is designed for customers who need a compact combination of lithium battery storage, solar charging and AC backup.

Hajvery Solar Energy supplies genuine itel energy products and can assist buyers with product selection, compatibility guidance and applicable warranty support. Customers can contact Hajvery Solar for the latest availability and purchase information.
