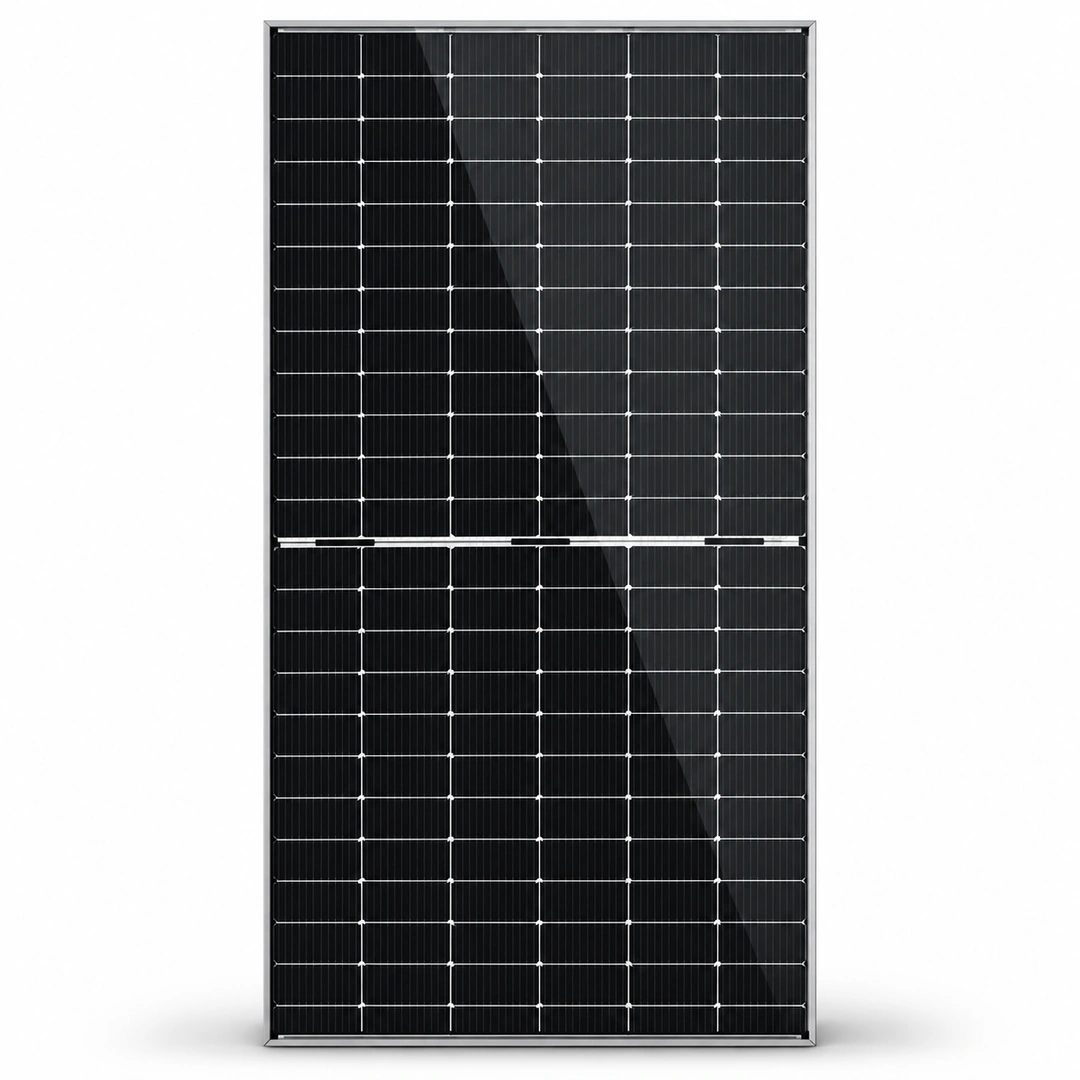

JA 590W Bifacial Solar Panel

JA 590W Bifacial Solar Panel Overview

The JA 590W Bifacial Solar Panel is designed for solar installations where module output, space utilisation and long-term power generation matter. Its N-type monocrystalline cells convert sunlight into electricity, while the bifacial design allows the rear surface to capture additional reflected light when the installation conditions are suitable. Before buying, compare the JA 590w solar panel price in pakistan and specifications.

The panel uses a double-glass construction, with 2.0 mm front glass and 2.0 mm rear glass. This construction makes it suitable for appropriately designed rooftop and ground-mounted projects. Its 590W rated output also helps installers plan solar arrays using fewer modules than would be required with lower-wattage panels for the same nominal DC capacity.

For buyers comparing the JA 590w solar panel price in pakistan, wattage alone should not determine the purchase. Module efficiency, electrical specifications, mounting conditions, warranty coverage and compatibility with the selected inverter are equally important.

Key Features and Benefits

N-Type Bifacial Solar Technology

The panel uses N-type monocrystalline cells in a bifacial design. Its front surface captures direct sunlight, while the rear surface can use reflected and scattered light.

The additional energy generated from the rear depends on the installation. Roof colour, ground reflectivity, panel elevation, row spacing and shading all influence the result. Bifacial construction does not guarantee a fixed percentage of additional electricity.

For more information visit JA Solar Panel Official Website.

590W Rated Power Output

With a 590W rated output, the module is suitable for solar projects that require high power per panel. Installers can use the rated wattage when calculating the nominal DC capacity of an array, then design the strings around the inverter’s voltage and current limits.

22.8% Module Efficiency

The module has a rated efficiency of 22.8%. Higher efficiency can help produce more rated power from a given module area, which is useful when roof space is limited.

Actual energy production still depends on sunlight, temperature, orientation, shading, dust and the complete solar system design.

Double-Glass Construction

The module uses 2.0 mm front glass and 2.0 mm rear glass. Both sides are glass, supporting the panel’s bifacial design.

The installation structure must accommodate the panel’s dimensions, weight and applicable mechanical loading requirements.

Low Degradation Over Time

The panel carries a 12-year product warranty and a separate 30-year linear power output warranty. These cover different aspects of the product and should not be treated as interchangeable.

The applicable warranty conditions determine the coverage available to the buyer.

Best For

The JA 590W Bifacial Solar Panel can be considered for:

• Residential solar systems with sufficient installation space.
• Commercial rooftop solar projects.
• Ground-mounted solar arrays designed to benefit from rear-side light.
• Businesses seeking high rated power per module.
• Installers designing solar arrays around verified voltage and current limits.
• Buyers comparing ja 590w bifacial solar panel price in pakistan before selecting modules for a project.

When Another Panel May Be Better

A different module may be more suitable when:

• The available mounting area cannot accommodate this panel’s dimensions.
• The inverter’s maximum DC input current or voltage is incompatible with the module.
• The mounting structure cannot safely support the panel’s weight and loading requirements.
• The installation cannot provide suitable rear-side light exposure and the buyer does not need bifacial functionality.
• The project requires different electrical characteristics or a different module size.

Cell and Module Technology

The JA 590W module combines N-type monocrystalline cells with a bifacial double-glass design. Monocrystalline cells generate electricity from sunlight, while bifacial construction enables the rear surface to contribute when light reaches it.

When evaluating ja solar n type bifacial modules, buyers should consider the exact module’s rated power, efficiency, temperature behaviour, electrical limits and warranty rather than relying on the technology label alone.

What Is a Bifacial Solar Panel?

A bifacial solar panel generates electricity from both its front and rear surfaces. The front receives direct sunlight, while the rear can capture reflected light from the roof or ground.

How Do Bifacial Solar Panels Work?

The front side captures incoming sunlight. The rear side can collect additional light reflected from surrounding surfaces. The amount of extra energy depends on site conditions and the mounting arrangement.

Technical Specifications

Performance and Degradation

The JA 590W panel has a temperature coefficient of maximum power of -0.290%/°C. This indicates that power output decreases as cell temperature rises above the standard test temperature, all else being equal.

The module also has a temperature coefficient of open-circuit voltage of -0.260%/°C. Installers should account for low-temperature voltage increases when designing strings and checking the inverter’s maximum DC voltage.

The warranty structure includes a 12-year product warranty and a 30-year linear power output warranty. The applicable performance guarantee and claim conditions should be checked before purchase.

Performance Considerations for Pakistan

Pakistan’s summer temperatures, dust and changing sunlight conditions can affect solar generation. Correct installation and routine maintenance help the system perform as intended.

• Heat management: Provide appropriate airflow beneath rooftop modules.
• Dust and cleaning: Inspect for dust accumulation and clean using suitable methods.
• Bifacial mounting: Consider rear-side clearance and surface reflectivity when planning the structure.
• String design: Use the panel’s voltage and current values to check inverter compatibility.
• Safety: Ensure proper mounting, earthing and electrical protection through a qualified installer.

A bifacial solar panel does not automatically produce more energy in every installation. Rear-side performance depends on the site and mounting design.

JA 590W Bifacial Solar Panel Price in Pakistan

The JA 590w solar panel price in pakistan is an important consideration for homeowners, businesses, installers and dealers planning a solar installation.

The current price of the JA 590W Bifacial Solar Panel in Pakistan is Rs. 21,830 per panel.

The final project cost depends on the number of panels, mounting structure, inverter selection, wiring, protection equipment and installation requirements. Bulk buyers and solar dealers can contact Hajvery Solar Energy for current availability and quantity-based pricing.

When comparing the ja 590w bifacial solar panel price, consider the panel’s electrical specifications, warranty terms and suitability for your system rather than choosing by price alone.

JA Solar Panel Authenticity and Product Verification

Before ordering a JA Solar 590W Bifacial Solar Panel, confirm the exact model and rated wattage. Check the product label, serial information and applicable warranty arrangements.

Installers should also verify that the selected inverter can accommodate the module’s operating current, short-circuit current and temperature-adjusted open-circuit voltage. The panel’s wattage alone is not enough to establish compatibility.

Hajvery Solar Energy can assist buyers with product selection and relevant purchase enquiries. Confirm current stock and warranty arrangements before placing an order.

You can verify your JA Solar Panel through Hajvery Solar Energy’s solar panel verification link given below:
JA Solar Panel Verification Link.

Warranty

The JA 590W Bifacial Solar Panel carries a 12-year product warranty and a separate 30-year linear power output warranty.

The product warranty and performance warranty serve different purposes. Product warranty coverage concerns the module under the applicable terms, while the linear power output warranty addresses warranted power performance over time.

Buyers should review the applicable warranty conditions, including coverage requirements and the procedure for submitting a claim, before ordering.

Before You Buy

Check these points before purchasing the JA 590W Bifacial Solar Panel:

• Confirm the exact model: JAM72D40-590/GB.
• Check the inverter’s maximum DC voltage and input current limits.
• Calculate the string voltage using the module’s open-circuit voltage and the expected minimum site temperature.
• Confirm the mounting structure can accommodate the panel’s dimensions and weight.
• Consider rear-side light exposure if you want to benefit from bifacial generation.
• Confirm the applicable product and performance warranty conditions.
• Verify current price, availability and delivery arrangements with the seller.

Frequently Asked Questions

1. What is the JA 590W Bifacial Solar Panel price in Pakistan?

The current price of the JA 590W Bifacial Solar Panel in Pakistan is Rs. 21,830 per panel. Contact Hajvery Solar Energy to confirm availability and quantity-based pricing.

2. What are the JA 590W Bifacial Solar Panel specifications?

The panel has a rated output of 590W, module efficiency of 22.8%, N-type monocrystalline cells, bifacial double-glass construction and dimensions of 2278 × 1134 × 30 mm.

3. Is the JA 590W panel bifacial?

Yes. The module captures sunlight from both the front and rear surfaces. Actual rear-side energy generation depends on mounting height, surface reflectivity, shading and site conditions.

4. What are the dimensions of the JA 590W panel?

The module measures 2278 × 1134 × 30 mm and weighs 31.8 kg.

5. What warranty comes with the JA 590W Bifacial Solar Panel?

It carries a 12-year product warranty and a 30-year linear power output warranty, subject to the applicable terms and conditions.

6. Are bifacial solar panels worth it?

Bifacial solar panels can be worthwhile when the installation allows useful light to reach the rear surface. Ground-mounted systems and appropriately designed elevated structures may benefit more than installations where the rear side receives little light.

7. How should JA 590W panels be installed?

The mounting structure, string arrangement, inverter limits and electrical protection should be checked by a qualified solar installer. Correct spacing, safe mounting and suitable rear-side clearance are important for a bifacial installation.

8. Where can I buy a JA Solar 590W panel in Pakistan?

Contact Hajvery Solar Energy in Johar Town, Lahore, to enquire about the JA 590W Bifacial Solar Panel, current availability and purchase arrangements.

Buy JA 590W Bifacial Solar Panel from Hajvery Solar Energy

If you are comparing ja solar panel price in pakistan or planning a new solar installation, Hajvery Solar Energy can help you enquire about the JA 590W Bifacial Solar Panel and its suitability for your project.

Visit Hajvery Solar Energy at 280K Block J-1, Johar Town, Lahore, or contact the team to discuss panel quantities, inverter compatibility, delivery and warranty arrangements.
