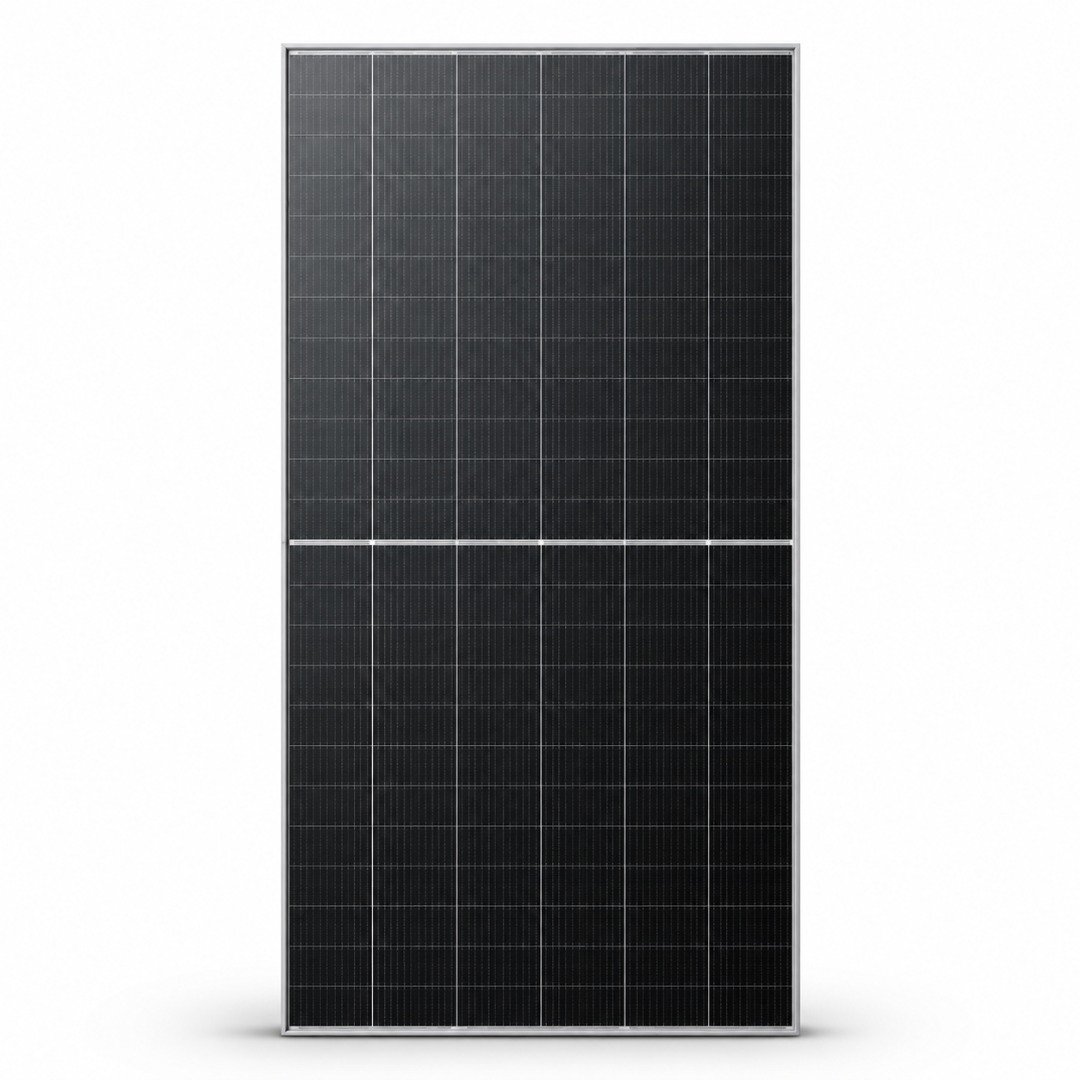

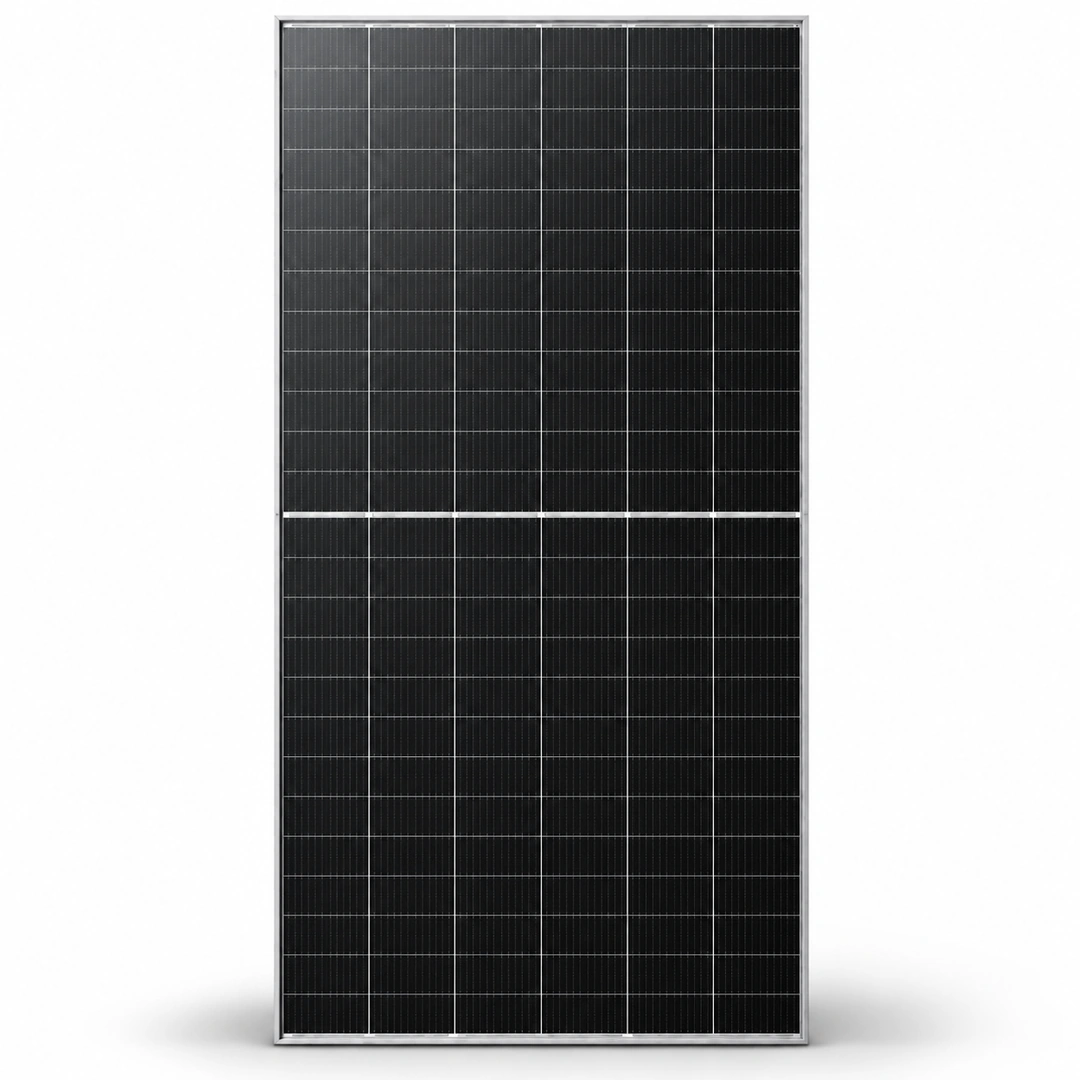

Jinko 590W Bifacial Solar Panel

Jinko 590W Bifacial Solar Panel Overview

The Jinko 590W Bifacial Solar Panel combines N-Type monocrystalline cells with a bifacial, dual-glass design. It is suitable for solar projects where module output, installation space and long-term power performance are important considerations. Want to know the Jinko 590W price in Pakistan? Contact Hajvery Solar Energy for the latest price and availability.

Each panel delivers a rated output of 590 watts under Standard Test Conditions (STC). Its 22.84% efficiency helps produce more power within a given panel area compared with lower-efficiency modules of similar dimensions, although actual comparisons depend on the specifications of the alternatives.

The bifacial construction allows the rear side to contribute to energy generation when reflected sunlight reaches it. The amount of additional energy depends on the mounting height, ground surface, spacing, shading and surrounding installation conditions.

For homeowners, commercial property owners, installers and solar dealers in Pakistan, this panel is worth considering for appropriately designed rooftop and ground-mounted systems. Correct string sizing and inverter compatibility remain essential before installation.

Key Features and Benefits

1. N-Type Monocrystalline Technology

The panel uses N-Type monocrystalline cells arranged in a 144-cell configuration. N-Type technology and the module’s low power degradation profile make it relevant for buyers considering long-term solar production.

The cell technology alone does not determine total system output. Inverter sizing, installation quality, shading, temperature and regular maintenance also affect the energy produced.

2. Bifacial Energy Generation

The bifacial solar panel design can generate electricity from both the front and rear sides. Rear-side production depends on how much usable reflected or surrounding light reaches the back of the module.

A well-planned installation with suitable rear clearance and a reflective surface may benefit more from bifacial generation than a closely mounted installation with an obstructed rear side. Additional energy production should not be treated as a fixed percentage for every project.

3. High Module Efficiency

With 22.84% module efficiency, the panel converts a substantial proportion of the sunlight reaching its surface into electricity under standard test conditions.

This characteristic can be useful where roof area is limited or where the installation requires high output per module. The final number of panels should still be determined by available space, electrical limits and the required system capacity.

4. Dual-Glass Construction

The module has 2.0mm anti-reflection-coated front glass and 2.0mm heat-strengthened rear glass.

This construction protects the cell assembly and supports the bifacial design. Proper handling, mounting and installation remain important to avoid mechanical damage.

5. Low Power Degradation

The panel carries a 30-year linear power warranty with an annual degradation rate of 0.40% over the stated performance period.

Its guaranteed power performance is shown as 99% at year one and 87.4% at year 30. These figures describe the stated power-performance warranty, not a guarantee of actual annual energy generation from a complete solar system.

6. Mechanical Load Resistance

The module is certified to withstand a 2400Pa wind load and a 5400Pa snow load.

Actual structural suitability depends on the mounting arrangement, support spacing, local wind conditions, roof strength and installation practices. The mounting structure should be designed for the conditions at the installation site.

Best For

The Jinko 590W Bifacial Solar Panel may be suitable for:

• Residential solar systems where the panel dimensions and electrical characteristics fit the design.
• Commercial rooftops requiring high output per module.
• Ground-mounted solar installations where rear-side light can contribute to production.
• Solar projects with limited installation area where module efficiency is an important selection factor.
• Installers and dealers looking for a high-wattage bifacial module with a long linear power warranty.

The appropriate panel count depends on the required system capacity, available installation area, inverter specifications and expected electricity consumption.

When Another Panel May Be Better

This panel may not be the right choice for every project.

• Limited mounting space: Its large dimensions may not fit smaller roofs or installations with narrow mounting areas.
• Restricted rear-side access: A bifacial design may offer less additional energy when the rear side receives very little light.
• Inverter limitations: The panel must not be connected to an inverter whose voltage or current limits are incompatible with the module.
• Different system requirements: A project may require a different wattage, module size or electrical configuration to achieve its intended string design.

A suitable panel should be selected by checking the complete system design rather than wattage alone.

Cell and Module Technology

N-Type Monocrystalline Cells

Monocrystalline cells are made from crystalline silicon. This panel uses an N-Type cell structure, which is relevant to its power-performance characteristics and long-term degradation profile.

The practical result depends on the operating temperature, sunlight, shading and quality of the complete installation.

Bifacial Module Design

A bifacial module can receive sunlight on its front and rear surfaces. The front side generally receives direct sunlight, while the rear side can benefit from reflected light.

Ground reflectivity, module height, row spacing and rear-side obstructions influence the contribution from the back of the panel. Bifacial gain should therefore be assessed for the actual site rather than assumed to be the same for every installation.

Dual-Glass Structure

The panel uses glass on both sides, with an anti-reflection coating on the front glass and heat-strengthened glass on the rear. The frame is made from anodized aluminium alloy, and the junction box has an IP68 rating.

These construction details are relevant when assessing the module’s mechanical design and environmental protection.

Technical Specifications

Performance and Degradation

The panel’s stated linear power warranty provides a useful reference when evaluating long-term module performance.

The 30-year linear power warranty includes an annual degradation rate of 0.40% over the stated period. The guaranteed power performance is 99% at year one and 87.4% at year 30.

These figures refer to the module’s power warranty. They do not mean the solar system will produce the same amount of electricity every year. Actual energy generation changes with sunlight, temperature, dust, shading, orientation, inverter efficiency and other operating conditions.

The -0.29%/°C temperature coefficient of Pmax indicates that the module’s maximum power decreases as cell temperature rises above the reference temperature, all else being equal. Good mounting ventilation can help limit excessive operating temperatures.

Performance Considerations for Pakistan

Pakistan’s hot summers, dust and seasonal changes in sunlight make correct panel selection and installation important.

• Heat management: Leave suitable ventilation space beneath the modules and follow the mounting requirements.
• Dust and cleaning: Dust accumulation can reduce energy production. Clean the panels using appropriate methods and safe access arrangements.
• Bifacial installation: Consider ground reflectivity, mounting height, row spacing and rear-side shading when planning the array.
• String design: Check the module’s voltage and current against the selected inverter’s limits, including the effect of low temperatures on open-circuit voltage.
• Structural support: Ensure the mounting system can handle the module weight and applicable wind conditions.
• Electrical protection: Use suitable cables, connectors, overcurrent protection and earthing arrangements as required by the system design.

A qualified solar installer should verify the complete array configuration before commissioning.

Jinko 590W Bifacial Solar Panel Price in Pakistan

The Jinko 590W Bifacial Solar Panel price in Pakistan is an important consideration for buyers comparing module output, efficiency, construction and warranty coverage.

The current price of the Jinko 590W Bifacial Solar Panel in Pakistan is Rs. 22,774 per panel.

The final project cost depends on the number of panels, mounting structure, inverter, cables, electrical protection, installation and other system components. The panel price alone does not represent the cost of a complete solar installation.

For bulk quantities, dealer enquiries and project requirements, contact Hajvery Solar Energy in Johar Town, Lahore, to confirm current availability and applicable pricing.

Tier 1, A-Grade and Product Authenticity

Buyers comparing solar panels should evaluate the exact model, electrical specifications, module condition, warranty terms and supplier reliability.

Do not assume that every panel is A-grade or that a particular product has a specific industry ranking without appropriate verification. Before purchase, check the physical condition of the panel, its identification label and serial information.

For a new installation, the selected module should also match the intended inverter and mounting design.

Hajvery Solar Product Verification

Before ordering the Jinko 590W Bifacial Solar Panel, confirm the exact model and rated power. Check the panel’s physical condition, identification details and applicable warranty arrangements.

Installers should verify the module’s open-circuit voltage, operating voltage, short-circuit current and operating current against the inverter specifications. The maximum system voltage and string fuse rating must also be respected.

Hajvery Solar Energy can assist buyers with product enquiries and system compatibility checks. Confirm current stock and applicable warranty arrangements before finalising an order.

You can verify your Jinko Solar Panel at Hajvery Solar Energy. The link for solar panel veriication is given below:

Panel Verification Link:
Jinko Solar Panel Verification

Warranty

The Jinko 590W Bifacial Solar Panel comes with a 12-year product warranty and a 30-year linear power warranty.

The product warranty and linear power warranty cover different aspects of the module and should be considered separately. The stated performance warranty includes 99% guaranteed power at year one, 87.4% at year 30 and an annual degradation rate of 0.40% over 30 years.

Applicable warranty terms, exclusions and the claim process should be confirmed with the seller before purchase. Keep the purchase record and relevant product identification details for warranty enquiries.

Frequently Asked Questions

1. What is the Jinko 590W Bifacial Solar Panel?

The Jinko 590W Bifacial Solar Panel is an N-Type monocrystalline module with a rated output of 590W, bifacial construction and dual-glass protection.

2. What is the Jinko 590W solar panel price in Pakistan?

The current price is Rs. 22,774 per panel.

3. What is the efficiency of the Jinko 590W panel?

The module efficiency is 22.84%. Actual energy generation depends on sunlight, temperature, shading, installation angle and other system conditions.

4. Is the Jinko 590W panel bifacial?

Yes. The module can generate electricity from its front and rear sides. The additional contribution from the rear depends on the installation environment and reflected light.

5. What are the dimensions of the Jinko 590W solar panel?

The panel measures 2278 × 1134 × 30mm and weighs approximately 31kg. Confirm that the mounting structure and available installation area can accommodate these dimensions and weight.

6. What is the warranty of the Jinko 590W Bifacial Solar Panel?

It has a 12-year product warranty and a 30-year linear power warranty. Confirm the applicable warranty terms and claim procedure before purchase.

7. Can the Jinko 590W panel work with any solar inverter?

Not automatically. Compatibility depends on the inverter’s maximum DC voltage, MPPT voltage range, input current limits, maximum system configuration and the number of panels connected in series. The array should be designed by a qualified installer.

8. What does the bifacial factor mean?

The reference bifacial factor is 80 ± 5%. It describes the relationship between rear-side and front-side electrical performance under the relevant test conditions. It is not a promise of a fixed percentage increase in total energy generation.

Buy Jinko 590W Bifacial Solar Panel from Hajvery Solar Energy

If you are looking for a jinko 590w bifacial solar panel for a residential, commercial or ground-mounted solar project, review its dimensions, electrical limits, bifacial installation requirements and warranty coverage before ordering.

Hajvery Solar Energy serves solar buyers, installers and dealers from Johar Town, Lahore. Contact the team to confirm current availability, quantity-based pricing and compatibility requirements for your project.
