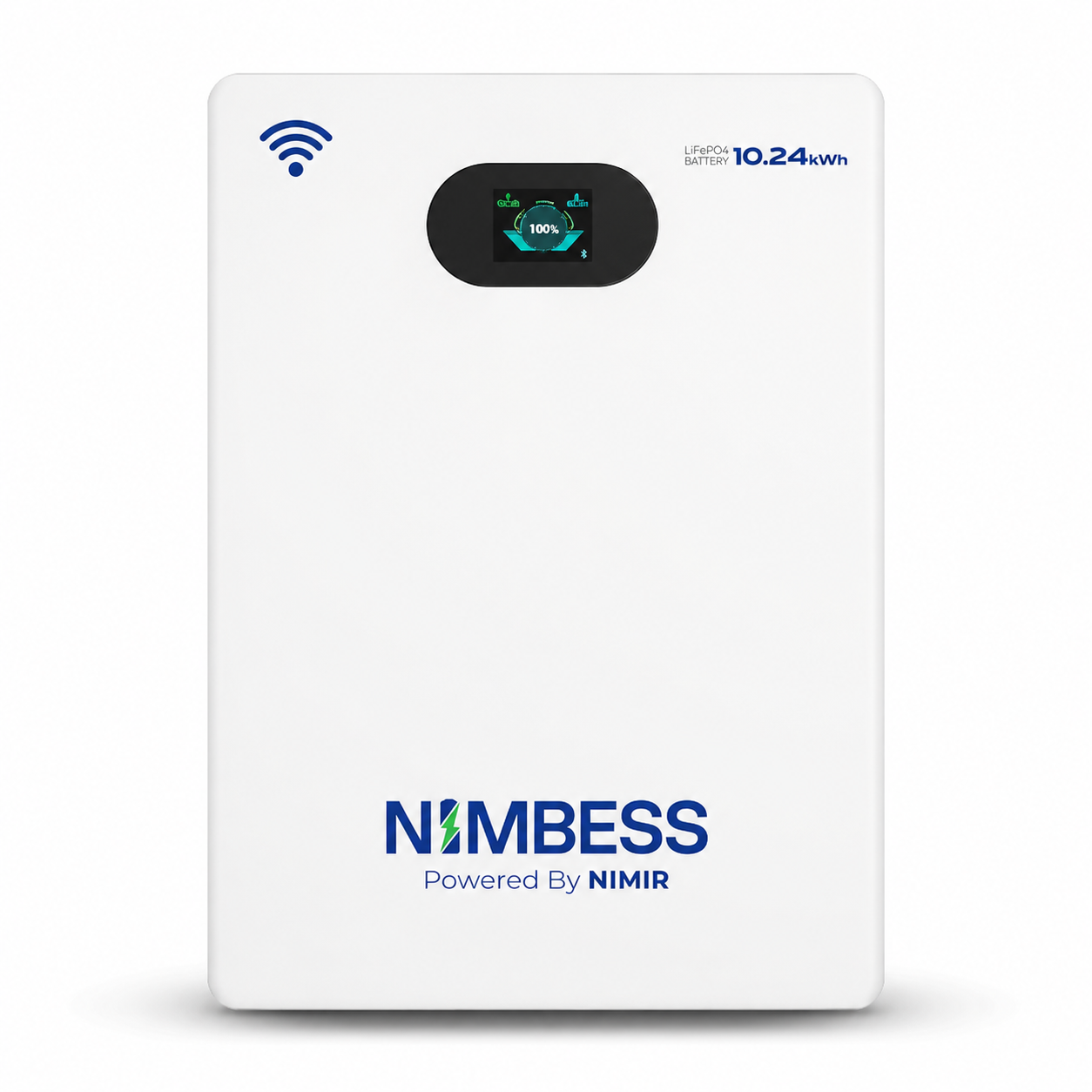

Nimbess 10.24kWh LiFePO4 Lithium Battery – Reliable Solar Energy Storage
The Nimbess 10.24kWh LiFePO4 Lithium Battery ES-BOX12 PLUS(LCD) is a high-performance wall mounted solar lithium battery designed for residential and commercial energy storage systems. Built with advanced LFP / LiFePO4 battery technology, it offers excellent safety, long cycle life, stable power output, and efficient energy backup for solar inverter systems.
With a nominal voltage of 51.2V and nominal capacity of 200Ah, this battery provides a total energy capacity of 10.24kWh, making it suitable for solar homes, backup power systems, hybrid inverter setups, and renewable energy storage applications. Its >8000 cycle life ensures long-term performance, while the 80% depth of discharge allows efficient usable energy output.
The Nimbess 10.24kWh battery supports up to 16 units in parallel, allowing users to expand storage capacity according to their energy needs. It also features RS485, CAN, USB/RS232 communication, making it compatible with multiple inverter brands. The built-in WiFi app monitoring, LCD touchscreen, and breaker function provide easy control, monitoring, and system management.
Designed for flexible installation, the battery supports wall-mounted and floor-standing installation, saving space and installation time. It comes with international certifications including CE, IEC 62619, UL 1973 by Intertek, MSDS, and UN38.3, ensuring dependable safety and quality for modern solar energy systems.
Key Features
| Product Type |
Wall Mounted LiFePO4 Lithium Battery |
| Product Model |
ES-BOX12 PLUS(LCD) |
| Standard Charge Voltage |
56.8V |
| Max. Discharge Current |
150A |
| Discharge Cut-off Voltage |
44.8V |
| Max Charging & Discharging Rate |
0.75C |
| Depth of Discharge — DOD |
80% |
| Cycle Life |
>8000 Cycles at 25°C±2°C, 0.5C, 80% DOD @65% EOL |
| Parallel Function |
Supports up to 16 units in parallel |
| Communication Interface |
RS485, CAN, USB/RS232 |
| Charge Temperature Range |
0°C ~ 55°C |
| Discharge Temperature Range |
-20°C ~ 55°C |
| Installation Method |
Wall Mounted / Floor Standing |
| Dimensions — W x H x D |
480 × 650 × 225mm |
| Functions |
WiFi App / Touchscreen / Breaker |
| Warranty |
5 Years — under warranty terms |
| Certifications |
CEI 0-21, CE, IEC 62619, UL 1973 by Intertek, MSDS, UN38.3 |
| Compatible System |
Solar Inverter / Grid / Generator / Household Load |
