ReneSola 16KW Lithium Battery

ReneSola 16kWh 51.2V 314Ah Lithium Battery Overview

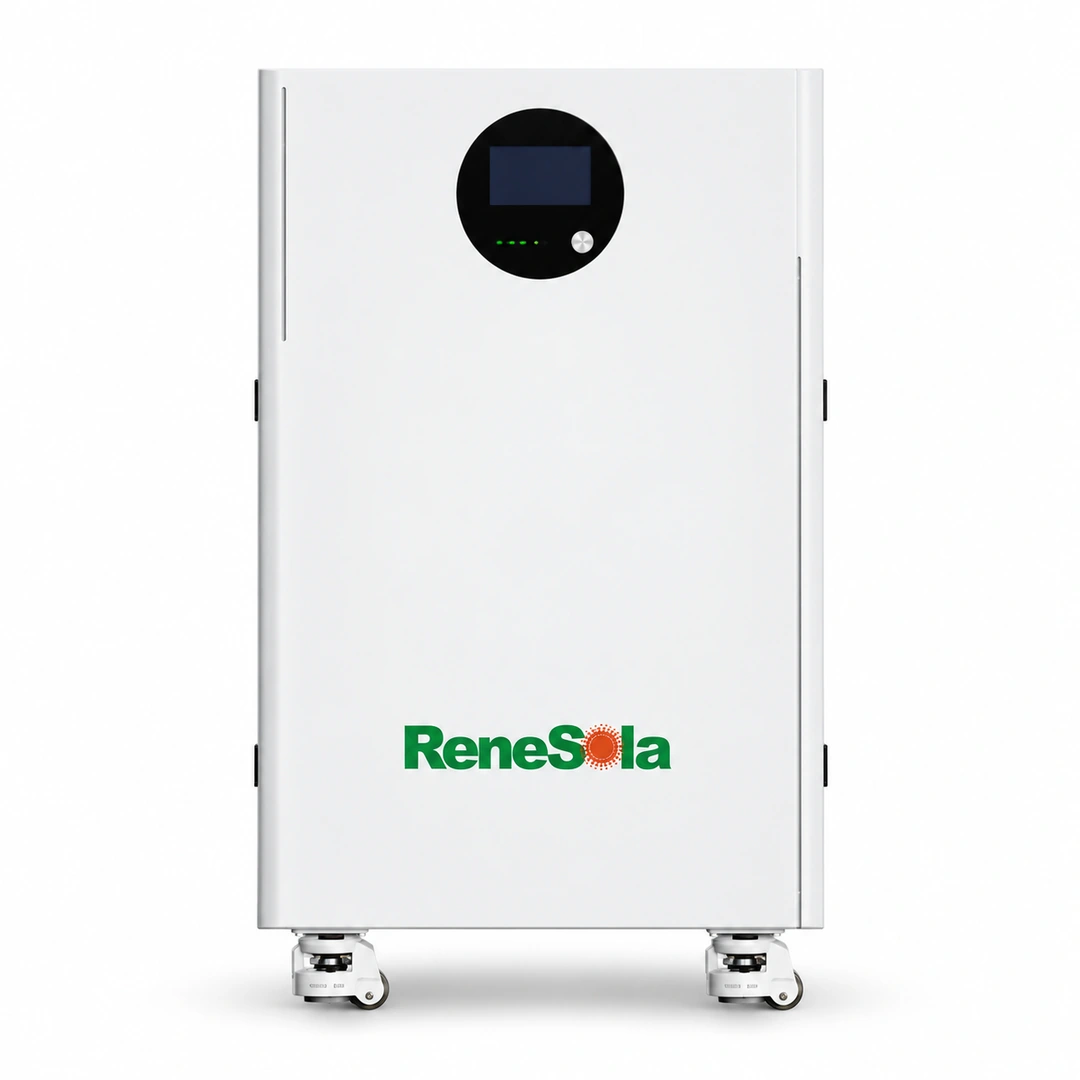

The ReneSola M16S314BL-F is a rechargeable lithium iron phosphate battery for buyers checking the renesola 16 kw lithium battery price in Pakistan. In particular, its 16.0kWh rated energy supports compatible hybrid solar systems, household backup and expandable residential storage.

For example, buyers searching for a renesola 16kw battery are generally looking for this large-capacity energy storage category. The correct energy rating of this model is 16kWh, which represents stored energy rather than a 16kW continuous power output.

Moreover, its 51.2V nominal voltage and 314Ah battery capacity make it suitable for integration with appropriately matched low-voltage energy storage equipment. Communication through RS232, RS485 and CAN allows integration with compatible inverter control systems.

In addition, the battery includes a front LCD display, allowing users to view operating information without relying entirely on an external monitoring device.

For a broader selection, visit Hajvery Solar’s Lithium Batteries in Pakistan page.

Key Features and Buyer Benefits

Grade A LiFePO4 Battery Cells

The ReneSola M16S314BL-F uses Grade A lithium iron phosphate cells. LiFePO4 chemistry is valued for its thermal stability and suitability for rechargeable stationary energy storage.

For instance, customers researching types of lithium batteries for solar, LiFePO4 is an important option for systems requiring repeated charging and discharging.

Large 16.0kWh Energy Storage Capacity

In total, a single battery offers 16.0kWh of rated energy. This capacity can support extended backup requirements, depending on the connected electrical load, usable discharge setting and inverter efficiency.

During daylight, a compatible solar system can charge the battery. Later, the inverter can draw on that stored energy.

Long Cycle-Life Rating

The battery has a cycle-life rating of at least 9,000 cycles under the following test conditions:

• Temperature: 25°C
• Depth of Discharge: 90%
• Test Current: 200A

Therefore, these conditions matter when evaluating battery longevity. However, actual service life depends on operating temperature, charging settings, discharge behaviour and usage patterns.

LCD Operating Display

For example, the front-mounted LCD screen provides real-time operating status information. As a result, users and installers have a convenient way to check the battery’s displayed operating information.

RS232, RS485 and CAN Communication

The battery supports RS232, RS485 and CAN communication interfaces. In turn, compatible inverter and battery control equipment can communicate through these interfaces.

However, installers must check the selected inverter model, supported protocols and connection requirements.

Expandable Modular Battery Storage

The modular design supports parallel expansion of up to 60 battery units.

Consequently, this provides flexibility for projects that may require more storage. Still, installers must follow the relevant electrical, communication and protection requirements.

Best For

The ReneSola 16kWh battery is worth considering for:

• Residential hybrid solar systems requiring substantial energy storage.
• Homes experiencing electricity interruptions and needing battery backup.
• Solar installations designed to shift daytime solar energy into evening use.
• Compatible commercial backup systems with appropriately designed electrical loads.
• Customers planning future expansion of their energy storage system.

For a lithium battery solar setup, select a battery according to energy requirements, inverter capability, charging current and installation conditions.

Not Ideal For

This battery may not be suitable for:

• High-voltage battery systems requiring a different battery architecture.
• Inverters that cannot operate with its voltage or supported communication interfaces.
• Systems requiring discharge current beyond the battery’s electrical limits.
• Locations exposed to rain, splashing water or outdoor conditions unsuitable for IP20 equipment.
• Installations without adequate space, ventilation or structural support for its weight.

Therefore, confirm compatibility before installation.

Battery Capacity: kWh, Ah and Usable Energy Explained

The M16S314BL-F has a rated energy capacity of 16.0kWh, nominal voltage of 51.2V and capacity of 314Ah.

In practice, three battery measurements are important:

kWh — Kilowatt-hours: Represents the amount of stored electrical energy.

Ah — Ampere-hours: Represents the battery’s charge capacity.

V — Volts: Represents the nominal battery voltage.

For example, the general relationship is:

Nominal Energy (kWh) = Voltage (V) × Capacity (Ah) ÷ 1,000

For this battery:

51.2 × 314 ÷ 1,000 = 16.0768kWh

Nevertheless, the product’s declared rated energy is 16.0kWh, which remains the specification used for product selection.

Meanwhile, actual usable energy depends on configured discharge limits and operating conditions.

ReneSola Lithium Battery Chemistry and Cycle Life

The renesola lithium battery uses lithium iron phosphate (LiFePO4) cells, a chemistry widely used in rechargeable solar storage applications.

Specifically, its cycle-life specification is ≥9,000 cycles at 25°C, 90% depth of discharge and 200A.

However, cycle-life ratings do not guarantee a specific number of operating years. It represents performance under defined testing conditions.

For buyers asking how long do lithium solar batteries last, the most useful considerations include cycle-life testing, daily usage, discharge depth, temperature control and warranty terms.

Therefore, proper system settings matter when batteries charge and discharge frequently.

For an easy comparison of battery technologies, read our Lithium Battery vs Lead Acid Battery guide.

Battery Management System and Safety

First, installers should consider the battery’s electrical limits and communication functions when configuring battery management and inverter integration.

The M16S314BL-F supports RS232, RS485 and CAN communication and includes an ON/OFF output control switch.

In addition, its IP20 protection rating calls for a protected indoor installation instead of exposed outdoor use.

Before commissioning, installers should confirm battery-management communication, protective equipment, DC cabling, isolation arrangements and approved operating settings before commissioning the system.

Charging and Discharging Performance

The ReneSola M16S314BL-F has the following charging and discharging characteristics:

• Charging Voltage: 58.4V
• Discharge Cut-off Voltage: 42V
• Standard Charging Current: 50A
• Maximum Charging Current: 100A
• Maximum Discharging Current: 200A

For example, the 50A standard charge current provides a useful reference when configuring a compatible charging system.

However, a higher maximum charging limit does not mean users should charge at that level continuously.

Therefore, installers should keep charging settings within the permitted electrical and temperature limits.

ReneSola 16kWh Battery Inverter Compatibility

The ReneSola M16S314BL-F works with compatible energy storage inverters.

In particular, its nominal voltage of 51.2V and RS232, RS485 and CAN communication interfaces are relevant when selecting a hybrid inverter.

Compatibility checks should include:

• Nominal battery voltage and operating voltage range.
• Inverter charging voltage and maximum charging current.
• Required battery discharge current.
• Communication protocol and connection wiring.
• Inverter firmware and battery compatibility requirements.

However, matching voltage alone cannot confirm full inverter compatibility.

For this reason, Hajvery Solar can assist buyers in reviewing the selected inverter and battery requirements before purchase.

Parallel Expansion

The battery supports parallel operation of up to 60 units.

Likewise, each unit has 16.0kWh of rated energy. Larger installations can increase total energy storage by combining compatible batteries in a properly engineered configuration.

Before expansion, installers should evaluate DC protection, parallel cables, system control and communication.

Importantly, parallel expansion does not allow unrestricted loads, and each battery must remain within its electrical limits.

ReneSola 16kWh Lithium Battery Specifications

Estimated Backup Time

Battery backup duration depends on usable stored energy, inverter efficiency and the actual connected load.

For example, the following estimates assume:

• Rated battery energy: 16.0kWh
• Assumed usable discharge: 80%
• Assumed inverter efficiency: 90%
• Constant electrical load

Estimated AC energy available:

16.0 × 0.80 × 0.90 = 11.52kWh

Important: These are calculated examples, not guaranteed runtimes or manufacturer-rated usable energy. The 80% discharge assumption is used only for illustration. However, actual backup duration can change with battery settings, inverter losses, load fluctuations, temperature and battery ageing.

Need help choosing your storage size? Read What Size Solar Battery Do I Need for My House? for practical sizing guidance.

Lithium Battery Use in Pakistan

Solar battery installations in Pakistan often need to support daytime solar charging, evening electricity consumption and backup during electricity interruptions.

Thus, the ReneSola 16kWh battery can serve these purposes when combined with a correctly configured and compatible inverter.

In addition, installation planning should account for the battery’s IP20 rating, operating temperature limits, ventilation requirements and substantial physical weight.

Therefore, a properly protected indoor location is important, particularly in areas where summer temperatures can become high.

Buyers comparing the cost of lithium batteries for solar should also consider rated energy, cycle-life conditions, warranty coverage and compatibility rather than purchase price alone.

ReneSola Lithium Battery Price in Pakistan – 16kWh Model

Customers searching for renesola 16 kw lithium battery price in Pakistan can check the latest product pricing and availability through Hajvery Solar.

The current price of the ReneSola 16kWh 51.2V 314Ah Lithium Battery in Pakistan is Rs. 515,000 per battery.

Likewise, customers comparing renesola lithium battery price in Pakistan should consider the battery’s 16.0kWh capacity, LiFePO4 chemistry, charging and discharging limits, cycle-life rating and replacement warranty.

Hajvery Solar Energy is a ReneSola Official Distributor, supplying customers, installers and dealers with product information and purchasing assistance.

For larger orders and installation-related enquiries, contact Hajvery Solar to confirm the latest availability and applicable pricing.

For price, ordering and technical enquiries, Contact Hajvery Solar Energy.

Hajvery Compatibility and Authenticity Check

Before purchasing, confirm the exact ReneSola M16S314BL-F model and check its product identification and serial information.

For example, important checks include the battery’s rated voltage, energy capacity, communication requirements, warranty details and inverter compatibility.

Hajvery Solar Energy is an Official ReneSola Distributor and can assist buyers with product identification and compatibility enquiries.

Before finalising the battery purchase, ask the installer to review the exact inverter model.

See the Lithium Battery Verification page for general product identification guidance. You can also visit our Authorized Dealership Certificates page to review the brands documented there. For exact-model details, visit the ReneSola M16S314BL-F official product page.

Warranty

The ReneSola 16kWh 51.2V 314Ah Lithium Battery comes with a 10-year replacement warranty.

As a ReneSola authorized dealer, Hajvery Solar Energy can guide buyers on the applicable warranty information. Confirm the replacement eligibility, claim provider, required documents and warranty conditions before purchase.

Moreover, proper installation and operation within the battery’s permitted limits are important for reliable system performance.

Before You Buy

Before choosing this battery, consider the following:

1. Confirm that your inverter supports the battery’s 51.2V nominal voltage.
2. Check the inverter’s battery communication compatibility.
3. Calculate the energy storage required for your household or business.
4. Review the battery’s maximum charging and discharging currents.
5. Confirm that the installation location suits its IP20 protection rating.
6. Allow suitable installation space for its 520 × 300 × 910mm dimensions and 121kg weight.
7. Discuss future battery expansion if additional storage may be required.
8. Review the 10-year replacement warranty conditions.

Together, these checks help avoid compatibility problems and unrealistic backup expectations.

Frequently Asked Questions

1. What is the current ReneSola 16kWh lithium battery price in Pakistan?

The current price of the ReneSola 16kWh Lithium Battery in Pakistan is Rs. 515,000 per battery. Buyers searching for renesola 16 kw lithium battery price in Pakistan can confirm stock availability and purchasing options with Hajvery Solar.

2. What are the ReneSola 16kWh lithium battery specifications?

The M16S314BL-F offers 16.0kWh rated energy, 51.2V nominal voltage, 314Ah capacity, LiFePO4 cells, up to 200A maximum discharge current and RS232/RS485/CAN communication. It supports up to 60 batteries in parallel.

3. Is the ReneSola 16kw battery rated in kW or kWh?

More precisely, its rated energy capacity is 16.0kWh. The term 16kw lithium battery price in Pakistan is sometimes used when searching for this storage size, but kWh measures stored energy whereas kW measures power. This battery should not be treated as a 16kW continuous-output product.

4. Are lithium batteries good for solar?

For buyers asking are lithium batteries good for solar, LiFePO4 batteries are a practical storage option when the inverter, electrical requirements and operating environment are suitable. Their rechargeable design makes them useful for repeated solar charging and backup applications.

5. Can this battery work with a hybrid inverter?

Yes. Installers can integrate it with a compatible hybrid inverter. In particular, the inverter must support the required battery voltage, current limits and communication arrangements. Therefore, ask the installer to check inverter compatibility before installation.

6. What warranty comes with the ReneSola 16kWh battery?

The battery comes with a 10-year replacement warranty. Buyers should confirm the replacement process, claim requirements and applicable conditions with Hajvery Solar before ordering.

7. Can additional ReneSola batteries be connected?

Yes. The M16S314BL-F supports parallel expansion of up to 60 battery units. Moreover, installers must design multi-battery installations with suitable communication, connections and electrical protection.

8. How much backup can a 16kWh lithium battery provide?

Backup time depends on usable battery energy and the connected electrical load. For example, using an illustrative 80% usable discharge assumption and 90% inverter efficiency, a constant 2kW load would run for approximately 5.8 hours. However, actual results may differ.

Buy ReneSola 16kWh Lithium Battery from Hajvery Solar

Choose Hajvery Solar Energy, an authorized ReneSola dealer, for the ReneSola M16S314BL-F Lithium Battery.

If you are checking the renesola 16 kw lithium battery price in Pakistan, contact Hajvery Solar for current availability before ordering. Also, confirm the inverter match and battery configuration for your intended system.

Contact Hajvery Solar Energy in Lahore for product information, dealer enquiries, compatibility assistance and delivery options across Pakistan.
