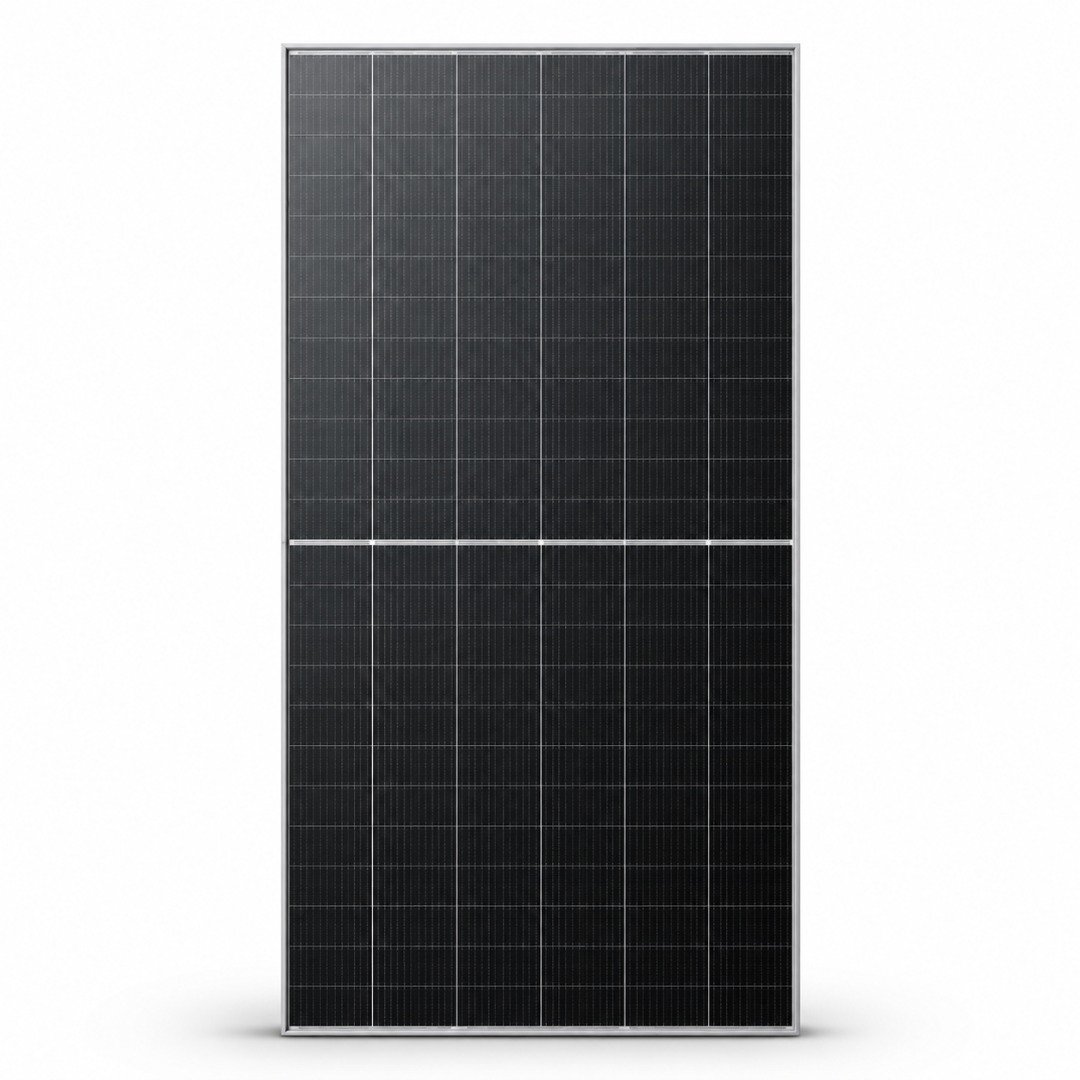

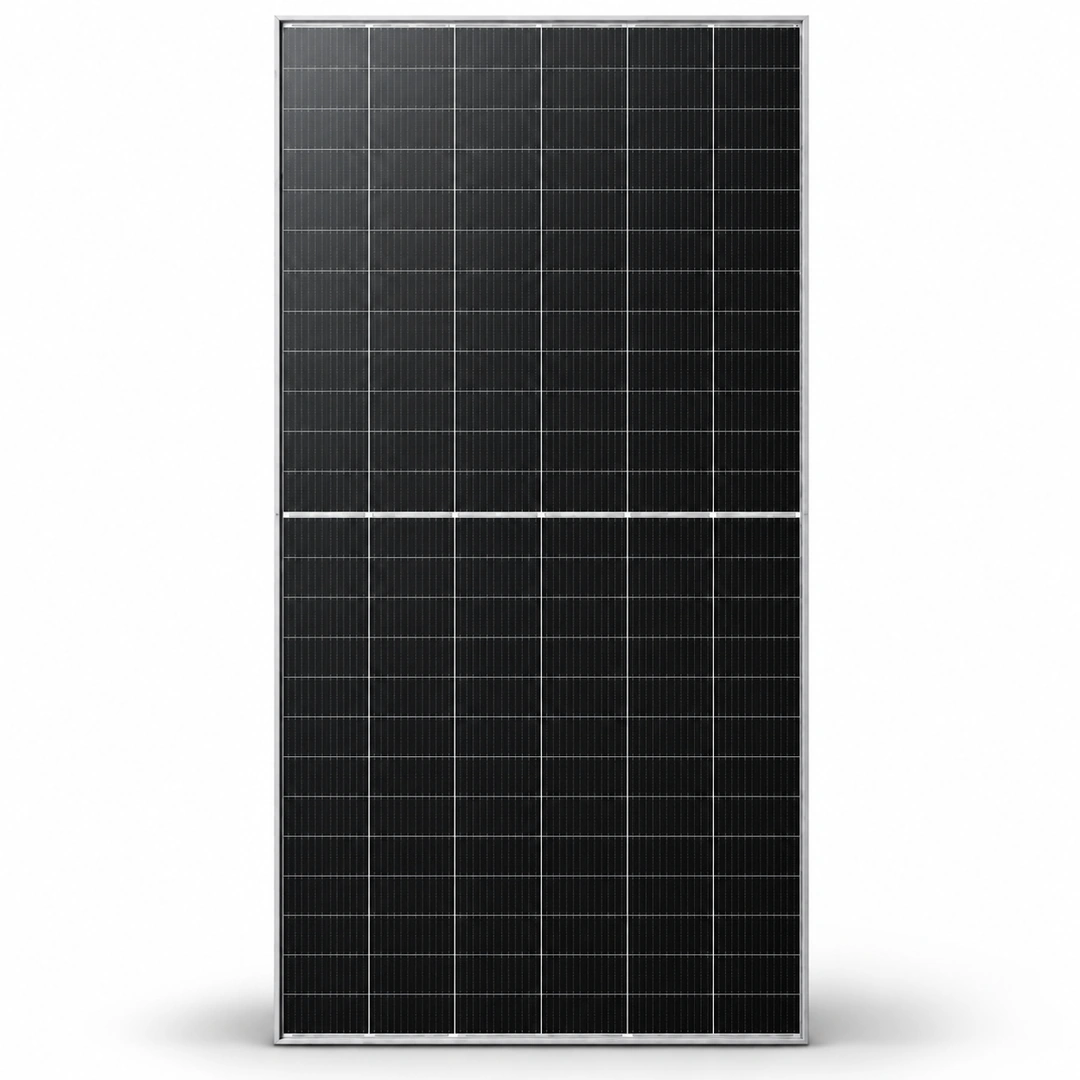

Jinko 585W Monofacial Solar Panel

Jinko 585W Monofacial Solar Panel Overview

The Jinko 585W solar panel is designed for solar installations that need a high power output from each module. Its N-Type monocrystalline cell structure combines with TOPCon technology to support long-term energy production and reduced degradation. Check the Jinko 585W Monofacial solar panel price in Pakistan at Hajvery Solar Energy and review the product details before placing your order.

With a rated output of 585 watts and a module efficiency of 22.65%, this panel can be considered for residential rooftops, commercial buildings and larger solar projects. The actual number of panels required depends on the desired system capacity, available installation area, inverter specifications and expected electricity consumption.

The panel’s monofacial construction is intended for front-side energy generation. Unlike a bifacial module, its application does not rely on rear-side energy generation. This makes it a relevant option for installations where the mounting arrangement and project design favour a conventional front-facing solar module.

Its N-Type TOPCon technology, HOT 2.0 technology and SMBB design support cell performance, current collection and reliability. Proper mounting, suitable electrical protection, appropriate string configuration and regular cleaning remain important for achieving dependable results.

Key Features and Benefits

N-Type TOPCon Cell Technology

The panel uses N-Type monocrystalline cells with TOPCon technology. This cell architecture is designed to reduce light-induced and light- and elevated-temperature-induced degradation. Lower degradation can help preserve more of the module’s power output over its operating life.

HOT 2.0 Technology

JinkoSolar’s HOT 2.0 technology is designed to support module efficiency and reliability. Combined with the N-Type cell structure, it contributes to the panel’s performance-focused design.

High Module Efficiency

With 22.65% module efficiency, the 585W panel converts a substantial proportion of the sunlight reaching its active surface into electricity under standard test conditions. Module efficiency is particularly relevant when planning a solar system for a roof with limited usable space.

Actual energy production will vary with sunlight, panel orientation, shading, temperature, dust and other installation conditions.

SMBB Technology

The panel incorporates SMBB technology to improve light trapping and current collection. These design characteristics support module power output and reliability.

Reduced Power Degradation

The panel has a stated first-year power degradation of 1%, followed by an annual degradation rate of 0.4% over the remaining linear power warranty period. Its linear power warranty provides for at least 87.4% of the initial rated power at year 30, subject to the applicable warranty terms.

Durable Module Construction

The panel features tempered glass, an anodized aluminium alloy frame and an IP68-rated junction box. It is designed for use in demanding outdoor environments, with resistance to salt mist and ammonia exposure identified among its durability features.

Its mechanical load ratings are 5400 Pa on the front side and 2400 Pa on the rear side under the specified test conditions. These ratings should not be interpreted as permission to install the panel without following the prescribed mounting requirements.

Best For

The Jinko 585W Monofacial Solar Panel may be suitable for:

• Residential solar systems where panel dimensions and electrical ratings fit the roof design.
• Commercial rooftops requiring high-wattage solar modules.
• Industrial solar installations designed around compatible string inverter inputs.
• Ground-mounted solar arrays using an appropriate front-facing module layout.
• Solar installers and dealers looking for N-Type monocrystalline modules.
• Projects where long-term power degradation and module efficiency are important selection criteria.

The final selection should consider the full solar system design rather than panel wattage alone.

When Another Panel Configuration May Be Better

A different module configuration may be more appropriate when:

• The available roof area cannot accommodate the panel’s physical dimensions.
• The inverter’s maximum DC voltage or input-current limits are incompatible with the planned string arrangement.
• The installation specifically requires rear-side energy generation from a bifacial module.
• The mounting structure cannot meet the required mechanical and installation conditions.
• A different electrical configuration is needed to match the inverter and site requirements.

Before purchasing, check the dimensions, connector arrangement, voltage, current and maximum system voltage against the proposed installation.

Cell and Module Technology

The Jinko module combines N-Type monocrystalline cells, TOPCon technology and a monofacial construction.

N-Type technology is designed to offer lower light-induced degradation than conventional approaches, while TOPCon provides a passivated-contact cell structure. HOT 2.0 and SMBB technologies support the module’s performance and current-collection design.

The panel contains 144 cells arranged in a 72 × 2 configuration. Its front glass has an anti-reflection coating designed to improve light transmission. The aluminium alloy frame provides structural support, while the junction box protects the electrical connection points.

Because the module is monofacial, its primary energy-generating surface is the front side. System designers should account for this when estimating generation and choosing the mounting arrangement.

Technical Specifications

Important: The maximum system voltage is an electrical design limit, not the recommended operating voltage of an individual panel. The final series-string configuration must comply with inverter limits, temperature-adjusted open-circuit voltage, current ratings and applicable installation requirements.

Performance and Power Degradation

Solar panel output changes with operating conditions. The 585W rating represents power under standard test conditions; actual production varies with solar irradiance, cell temperature, orientation, shading and soiling.

The module’s temperature coefficient of −0.29%/°C for maximum power indicates that power output decreases as cell temperature rises above the reference temperature, all else being equal. This is relevant in Pakistan, where panels can operate at temperatures considerably higher than ambient air temperature.

The warranty performance figures are:

• First year: 1% power degradation.
• Following years: 0.4% annual degradation.
• Year 30: 87.4% guaranteed power relative to initial rated power, subject to warranty conditions.

These figures describe the applicable power warranty, not a promise of a fixed quantity of electricity every year. Actual annual energy generation depends on the installed system and site conditions.

Performance Considerations for Pakistan

Pakistan’s strong sunlight offers useful conditions for solar energy generation, but installation quality and operating temperature still matter.

High summer temperatures: The negative power temperature coefficient means panel output can fall as cell temperature rises. Adequate airflow beneath rooftop modules helps limit unnecessary heat buildup.

Dust and soiling: Dust accumulation reduces the sunlight reaching the cells. Cleaning should follow the appropriate maintenance guidance and account for local water quality and site conditions.

Roof space and orientation: Check the panel dimensions and available mounting area before finalising the array layout. Avoid shading from parapet walls, trees, water tanks and neighbouring structures.

String design: The open-circuit voltage rises as cell temperature falls. Installers must calculate the cold-weather string voltage and confirm that the inverter’s maximum DC voltage will not be exceeded.

Electrical protection: Correct cables, connectors, earthing, overcurrent protection and installation practices are essential. The panel’s voltage and current ratings must be matched to the complete solar system.

Jinko 585W Monofacial Solar Panel Price in Pakistan

The current price of the Jinko 585W Monofacial Solar Panel in Pakistan is Rs. 22,815 per panel.

The final cost of a solar project depends on the number of panels, inverter selection, mounting structure, electrical protection, cabling, installation labour and other system components. A panel’s price alone does not represent the total cost of a complete solar installation.

For the latest availability and quantity-based pricing, contact Hajvery Solar Energy. Dealers, installers and commercial buyers can enquire about their project requirements before confirming an order.

Tier 1, A-Grade and Product Authenticity

When choosing a solar panel, buyers should distinguish between manufacturer specifications, product condition and seller claims.

Tier 1: This term generally relates to a manufacturer’s position in industry financing classifications. It should not be treated as an automatic guarantee of the condition or performance of an individual panel.

A-Grade: Confirm the actual product condition and applicable seller terms rather than assuming a grade based on wattage or brand alone.

Authenticity: Check the model identification, serial number, packaging and applicable warranty details before installation. Keep purchase records and confirm that the delivered product matches the ordered model.

Hajvery Solar Product Verification

Hajvery Solar Energy helps buyers identify the correct product for their intended installation. Before ordering, confirm the exact model, rated wattage, electrical characteristics, physical condition and applicable warranty.

Installers should also verify that the selected panel works within the intended inverter’s DC voltage and current limits. A high-wattage module is not automatically compatible with every inverter.

For residential and commercial projects, checking these details before installation helps reduce avoidable system-design and compatibility problems.

You can verify your Jinko Solar Panel at Hajvery Solar Energy. The link for solar panel veriication is given below:

Panel Verification Link:
Jinko Solar Panel Verification

Warranty

The Jinko 585W Monofacial Solar Panel comes with a 12-year product warranty and a 30-year linear power warranty.

The product warranty and linear power warranty cover different aspects of the module. The product warranty relates to the product coverage, while the linear power warranty addresses its warranted power output over time. The stated performance terms include 1% first-year degradation, 0.4% annual degradation thereafter and 87.4% warranted power at year 30.

Buyers should confirm the applicable warranty conditions, claim procedure and coverage requirements with Hajvery Solar Energy before ordering. Keep the purchase invoice and product identification details for future reference.

Frequently Asked Questions

1. What is the Jinko 585W Monofacial Solar Panel price in Pakistan?

The current price is Rs. 22,815 per panel. Contact Hajvery Solar Energy to confirm availability and quantity-based pricing.

2. What is the efficiency of the Jinko 585W solar panel?

The module efficiency is 22.65%. Actual electricity generation depends on sunlight, temperature, shading, orientation and installation quality.

3. Is the Jinko 585W Monofacial Solar Panel an N-Type panel?

Yes. It uses N-Type monocrystalline cells with TOPCon technology, designed to support reduced degradation and improved low-light performance.

4. What are the dimensions of the Jinko 585W solar panel?

The panel measures 2278 × 1134 × 30 mm and weighs 27 kg. Check the mounting structure and available installation space before ordering.

5. What are the voltage and current ratings of this panel?

Its maximum power voltage is 43.53V, maximum power current is 13.44A, open-circuit voltage is 52.47V and short-circuit current is 14.07A. These values should be considered when designing compatible solar strings.

6. What warranty comes with the Jinko 585W Monofacial Solar Panel?

It comes with a 12-year product warranty and a 30-year linear power warranty. Confirm the applicable coverage conditions and claim process before purchase.

7. Is the Jinko 585W solar panel suitable for residential and commercial installations?

It can be used in residential and commercial solar projects when its dimensions, electrical ratings and mounting requirements match the system design. The required panel quantity depends on the target system capacity and available installation area.

8. How can I check compatibility with a solar inverter?

Compare the panel’s open-circuit voltage, maximum power voltage, short-circuit current and operating current with the inverter’s DC voltage, MPPT range and current limits. The installer should also account for temperature-related voltage changes and the permitted string configuration.

Buy Jinko 585W Monofacial Solar Panel from Hajvery Solar Energy

Looking for a Jinko 585W Monofacial Solar Panel in Pakistan? Hajvery Solar Energy serves residential customers, solar installers, dealers and commercial buyers from its store in Johar Town, Lahore.

Before placing an order, confirm the current price, stock availability, product condition and applicable warranty. For larger projects, share your planned system capacity and inverter details to help identify the relevant electrical compatibility requirements.

To explore more options click, Jinko Solar Panels In Pakistan.
