Pylontech Fidus 5.12kWh Lithium Battery

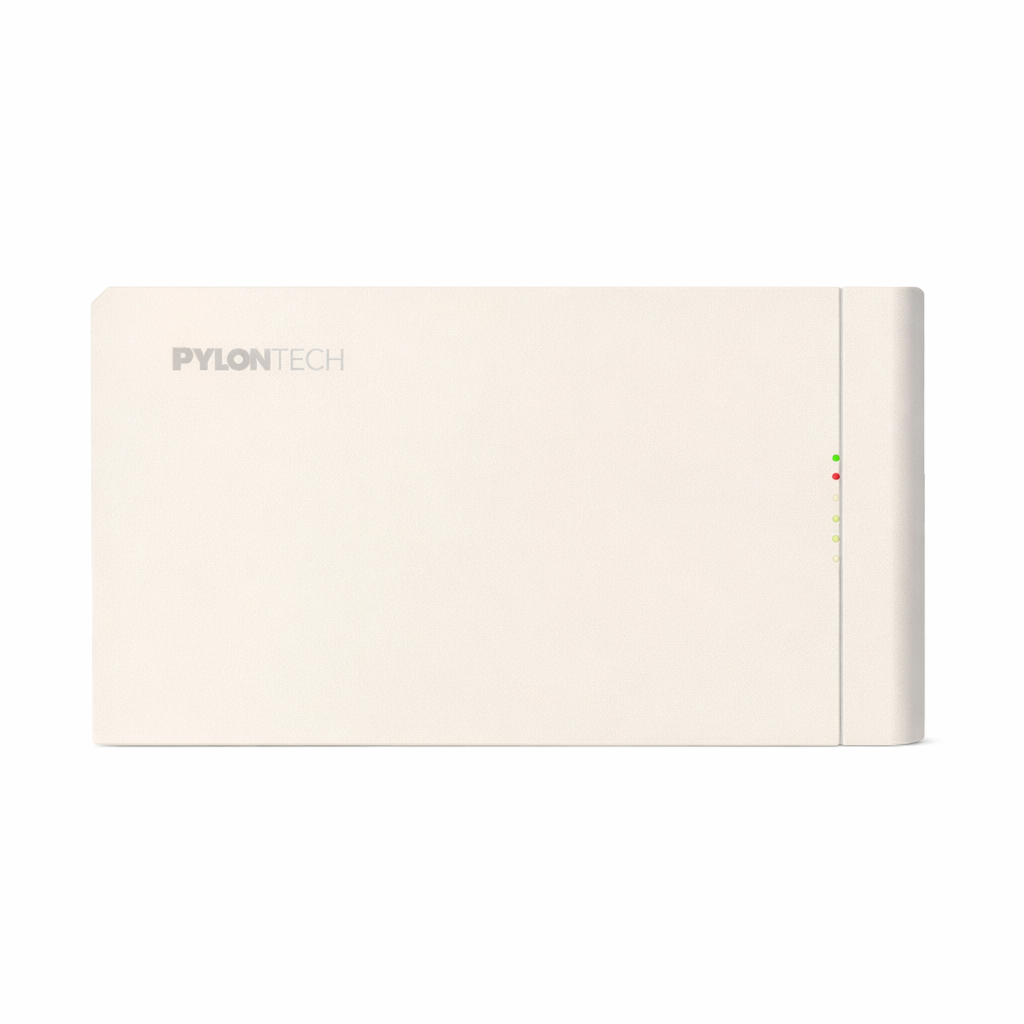

Pylontech Fidus 5.12kWh 51.2V Lithium Battery Overview

The Pylontech Fidus 5.12kWh 51.2V Lithium Battery stores energy for solar and backup-power systems. It provides 5.12kWh nominal capacity, 4.97kWh usable capacity and a 97% depth of discharge (DoD). As a result, users can access a large portion of the stored energy within the battery’s operating limits.

The battery operates at a 51.2V nominal voltage and supports 100A charge and discharge current. In addition, its peak current capability reaches 121–200A for 15 seconds, providing short-duration power capability when the connected system supports it.

The Pylontech Fidus battery also supports RS485 and CAN communication for integration with compatible energy-storage equipment. Furthermore, its wall, ground and rack mounting options give installers flexibility when planning the battery location and overall system layout.

Key Features and Buyer Benefits

5.12kWh Energy Capacity

The battery provides 5.12kWh nominal capacity and 4.97kWh usable capacity. This makes it a practical option for solar backup and energy-storage systems.

Actual backup time depends on the connected load, inverter efficiency and system configuration. Therefore, estimate the energy demand before selecting the battery for a particular installation.

97% Depth of Discharge

The Pylontech Fidus battery has a 97% depth of discharge. This allows users to access most of its nominal energy while staying within the battery’s operating limits.

However, the energy available to connected appliances can vary with inverter losses, temperature, battery condition and load demand.

100A Charge and Discharge Capability

The battery supports 100A normal and maximum charge current and 100A normal and maximum discharge current. These ratings help installers plan the charging setup and match the battery to the expected system load.

Before installation, check the inverter’s current requirements and make sure the complete system design stays within the battery’s limits.

High Short-Duration Peak Current

The battery supports a peak current of 121–200A for 15 seconds. This short-duration capability may help meet temporary power demands when the connected equipment and system configuration support them.

Nevertheless, peak current is not the same as continuous operating current. Always check the inverter limits and battery configuration before connecting high-demand loads.

RS485 and CAN Communication

Built-in RS485/CAN communication allows the battery to exchange information with compatible energy-storage equipment. These interfaces support system integration when the connected equipment uses a supported communication protocol.

For reliable operation, confirm the inverter’s battery compatibility and communication settings before installation.

Flexible Installation

The Pylontech Fidus battery supports wall, ground and rack mounting. Consequently, installers can choose a suitable arrangement according to the available space and system layout.

The selected installation location must also meet the battery’s environmental and operating requirements.

High Cycle Life

The battery has a specified cycle life of more than 6,000 cycles at 25°C. Its stated design life is 10 years at 25°C.

However, actual service life depends on temperature, charging and discharging patterns, installation conditions and system configuration. Suitable operating conditions can help support reliable battery performance.

Corrosion Resistance

The battery has a C5-M anti-corrosion rating. This rating helps buyers assess its suitability for an appropriate installation environment. Even so, installers should check the environmental conditions before choosing the mounting location.

Best For

The Pylontech Fidus battery may suit the following applications when the complete system meets its requirements:

• Residential solar energy storage
• Home backup systems
• Hybrid solar systems
• Solar systems designed for a 51.2V battery
• Installations requiring RS485/CAN communication
• Systems that use wall, ground or rack mounting
• Energy-storage systems that require expandable battery capacity

The Fidus range supports configurations from 5kWh to 600kWh using 1 to 120 modules. However, the exact expansion arrangement must match the compatible system design and installation requirements.

For additional information click Pylontech Official Website.

Not Ideal For

The battery may not suit a system without further compatibility checks if:

• The inverter does not support a 51.2V battery system.
• The inverter does not support the required RS485/CAN communication.
• The required battery current exceeds the specified limits.
• The installation environment falls outside the battery’s operating conditions.
• The system requires a different battery capacity or configuration.

Therefore, check the battery voltage, current limits, communication protocol and supported configuration before purchase and installation.

Battery Capacity: kWh, Ah and Usable Energy Explained

Battery capacity can be expressed in kWh, Ah and usable energy. These terms describe different aspects of energy storage, so understanding them helps buyers choose a battery that matches their requirements.

The Pylontech Fidus battery has a 51.2V nominal voltage, 5.12kWh nominal capacity and 4.97kWh usable capacity.

The relationship between voltage, ampere-hours and nominal energy can be expressed as:

Voltage × Ah ÷ 1,000 = nominal kWh

For system planning, use the nominal and usable energy values as the main reference points. In addition, account for inverter efficiency, temperature, battery condition and the connected load when estimating the energy available to appliances.

Battery Performance and Cycle Life

The battery provides a 97% depth of discharge and a cycle life of more than 6,000 cycles at 25°C. Its stated design life is 10 years at 25°C.

Temperature also matters. The charging and discharging temperature range is -10°C to 55°C, while the storage temperature range is -20°C to 60°C.

Therefore, choose an installation location that meets these operating limits. Proper ventilation and suitable installation conditions are particularly important in areas where ambient temperatures rise significantly.

Charging and Discharging Performance

The Pylontech Fidus battery supports the following current ratings:

• Normal charge current: 100A
• Maximum charge current: 100A
• Normal discharge current: 100A
• Maximum discharge current: 100A
• Peak charge/discharge current: 121–200A for 15 seconds

When selecting the correct operating current, consider the inverter, battery configuration and full system design. In addition, confirm the supported settings before commissioning the installation.

Inverter Compatibility

The Pylontech Fidus battery supports RS485/CAN communication and is designed to work with compatible energy-storage systems. The Fidus range is compatible with 50+ popular inverter brands; however, this does not automatically confirm compatibility with every inverter model.

Before purchasing, check the inverter’s battery voltage requirements, charge and discharge limits, communication protocol and supported battery configuration. This step helps reduce the risk of communication problems and incorrect system settings.

Hajvery Solar Energy is a Pylontech Official Distributor and can assist customers with product selection and system compatibility checks. As an authorized Pylontech dealer, Hajvery Solar Energy can also guide buyers through relevant product and warranty enquiries.

Parallel Expansion

The Fidus range supports configurations from 5kWh to 600kWh using 1 to 120 modules. The stated configuration figures also include a maximum of 20 modules per single string and a multi-group figure of 6.

However, these figures do not mean every installation can use every configuration. Confirm the supported number of modules, communication arrangements and system architecture before planning an expansion.

Technical Specifications

Lithium Battery Use in Pakistan

For solar installations in Pakistan, consider load requirements, inverter compatibility, battery voltage, communication and installation temperature before choosing a battery.

The Pylontech Fidus battery supports a charging and discharging temperature range of -10°C to 55°C. Therefore, installers should select a suitable location and maintain appropriate installation conditions, especially during hot weather.

During load shedding, a correctly sized battery can store solar energy for later use. However, the backup period depends on usable battery energy, inverter efficiency and the appliances connected to the system.

For better planning, estimate the total load and expected backup duration before finalizing the battery configuration.

Pylontech Fidus 5.12kWh Price in Pakistan

The current price of the Pylontech Fidus 5.12kWh 51.2V Lithium Battery in Pakistan is Rs. 245,000.00 per unit.

Prices may vary with market conditions, quantity and availability. For the latest availability information and quantity enquiries, buyers, dealers and installers can contact Hajvery Solar Energy.

As an Official Pylontech Distributor, Hajvery Solar Energy can help customers assess product suitability and battery compatibility before purchase.

Hajvery Compatibility and Authenticity Check

Before purchasing the Pylontech Fidus battery, check the exact FB-L-5.12-PK model, battery voltage, required capacity and inverter communication compatibility.

Hajvery Solar Energy can help buyers review the intended battery configuration and compatibility requirements before installation. This check helps customers choose equipment that suits their solar-storage system.

Buying through Hajvery Solar Energy, an authorized Pylontech dealer, also gives customers a point of contact for product and warranty guidance.

Warranty

The Pylontech Fidus 5.12kWh 51.2V Lithium Battery comes with a 10-year warranty.

Before purchase, buyers should confirm the applicable warranty coverage, terms and claim process with Hajvery Solar Energy.

Before You Buy

Check these points before ordering the Pylontech Fidus battery:

• Battery voltage: 51.2V
• Required energy capacity: 5.12kWh nominal
• Usable capacity: 4.97kWh
• Inverter compatibility: Confirm voltage and communication requirements
• Communication: RS485/CAN
• Charge/discharge current: Confirm system requirements
• Installation: Wall, ground or rack mounting
• Installation environment: Confirm temperature and humidity conditions
• Expansion: Confirm the required number of battery modules
• Warranty: 10-year warranty

These checks help buyers and installers plan a suitable system. In addition, they can help avoid compatibility issues during installation.

For additional information click Pylontech Official Website.

FAQs

What is the capacity of the Pylontech Fidus battery?

The Pylontech Fidus FB-L-5.12-PK has a 5.12kWh nominal capacity and 4.97kWh usable capacity. Actual energy available to connected appliances depends on system efficiency and operating conditions.

What is the voltage of the Pylontech Fidus battery?

The battery has a 51.2V nominal voltage. Therefore, check that the inverter supports this battery voltage before installation.

What is the DoD of the Pylontech Fidus battery?

The battery has a 97% depth of discharge (DoD). This allows users to access a large proportion of its nominal energy within the battery’s operating limits.

What communication ports does the Pylontech Fidus battery have?

The battery supports RS485 and CAN communication. However, the inverter must support the relevant communication protocol and battery configuration.

How many cycles does the Pylontech Fidus battery provide?

The specified cycle life is more than 6,000 cycles at 25°C. Actual service life depends on temperature, usage, charging and discharging patterns, and installation conditions.

Can the Pylontech Fidus battery be wall mounted?

Yes. The battery supports wall, ground and rack mounting. Choose the mounting arrangement according to the installation requirements and available space.

What is the current price of the Pylontech Fidus battery in Pakistan?

The current price of the Pylontech Fidus 5.12kWh 51.2V Lithium Battery in Pakistan is Rs. 245,000.00 per unit.

What warranty does the Pylontech Fidus battery have?

The battery comes with a 10-year warranty. Confirm the applicable coverage and claim process with Hajvery Solar Energy before purchase.

Buy Pylontech Fidus 5.12kWh 51.2V Lithium Battery from Hajvery Solar

The Pylontech Fidus battery is an energy-storage option for compatible solar and backup systems that require a 51.2V battery. Its 4.97kWh usable capacity, 97% DoD, RS485/CAN communication, cycle life of more than 6,000 cycles and flexible mounting options help installers assess its suitability for different projects.

Hajvery Solar Energy provides Pylontech products and can assist customers in Pakistan with battery selection, compatibility checks and warranty guidance. Contact the team to discuss your system requirements before purchasing.
