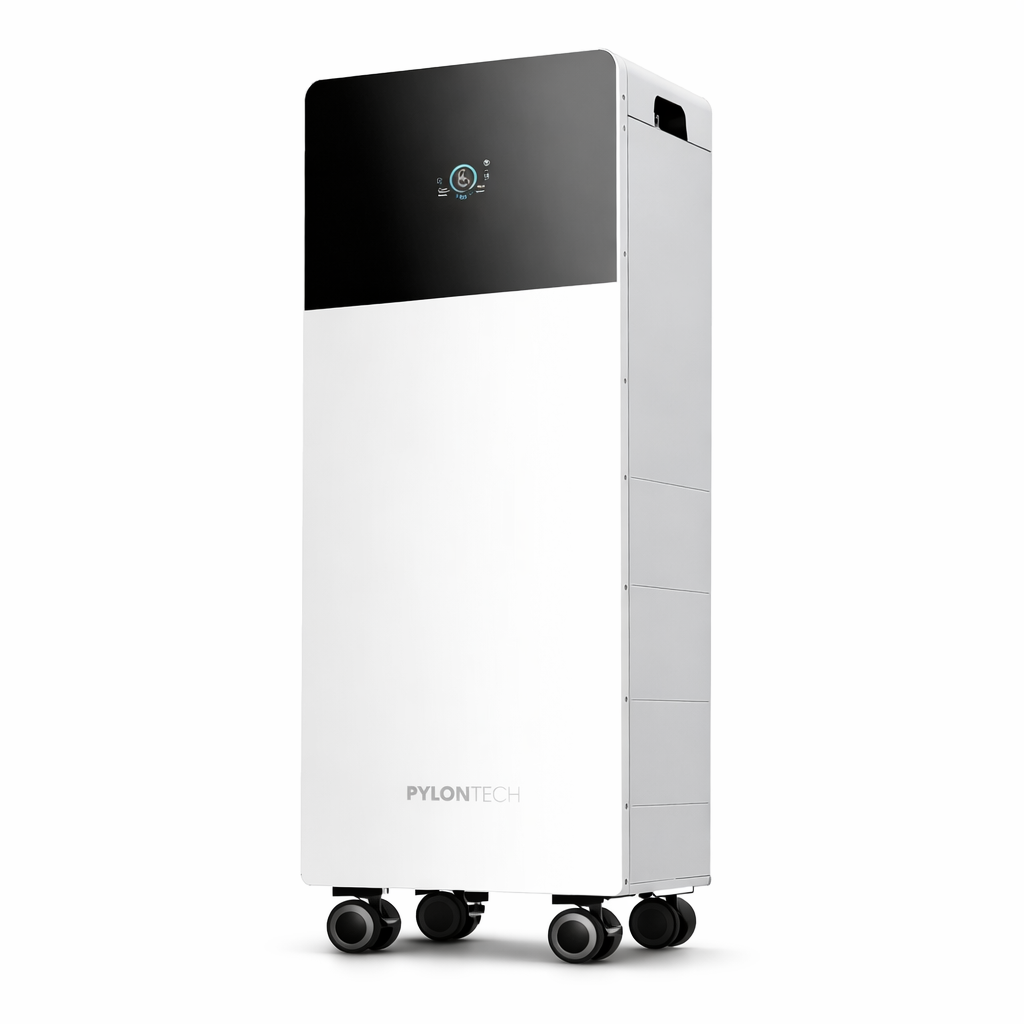

Pylontech 16KWh FIDUS Plus Lithium Battery

Pylontech FIDUS Plus 16KWh Lithium Battery Overview

The Pylontech FIDUS Plus 16KWh is a low-voltage lithium battery built for home energy storage, solar backup and other energy-storage applications. Its 51.2V nominal voltage and 16.076 kWh nominal energy provide substantial storage capacity for compatible systems. Moreover, its 100% depth of discharge, high current capability and communication options make it a practical option for suitable solar installations. The pylontech fidus plus 16kwh lithium battery price in pakistan is an important consideration when comparing energy-storage options for your home or business.

The FB-L-16 supports 100% depth of discharge, providing a usable capacity of 16.076 kWh under the specified operating conditions. It can continuously charge and discharge at up to 200A, while its peak charge/discharge current reaches 300A for 15 seconds. In addition, the FIDUS Plus design supports flexible installation because users can choose wall-mounted or floor-standing placement.

For buyers looking for the Pylontech FIDUS Plus low-voltage battery, inverter compatibility, installation requirements and the required battery configuration should be checked before purchase.

Key Features and Buyer Benefits

Pylontech FIDUS Plus 16.076 kWh Energy Storage

The battery has a nominal energy capacity of 16,076 Wh (16.076 kWh). This capacity allows a compatible residential solar system to store solar energy and supply connected loads through an appropriate inverter.

Therefore, this model is relevant to buyers looking for a pylontech fidus plus 16kwh lithium battery or a pylontech fidus plus 16kwh energy storage battery. However, actual backup time depends on the connected load, inverter efficiency and system settings.

51.2V Low-Voltage Architecture

The 51.2V nominal voltage makes the FB-L-16 a low-voltage battery for compatible energy-storage systems. Its discharge voltage range is 40–56.8V, while its charge voltage range is 56–56.8V.

When connecting the battery to a hybrid inverter, check that the inverter supports the battery’s voltage range and communication requirements. This step helps ensure that the battery and inverter can operate together correctly.

High Charge and Discharge Capability

The battery supports up to 200A continuous charging and 200A continuous discharging. Furthermore, its peak charge/discharge current can reach 300A for 15 seconds.

This current capability can support systems with substantial battery power requirements. Nevertheless, the actual power available depends on the compatible inverter, operating conditions and overall system design.

100% Depth of Discharge

The FB-L-16 supports a specified 100% depth of discharge (DoD). Its rated capacity is based on testing at 25°C and a 0.2C discharge rate. Meanwhile, the default state-of-charge (SOC) lower limit is set at 5% and can be adjusted.

Consequently, installers should configure the battery and inverter according to the intended operating conditions.

Smart Monitoring and Communication

The battery supports CAN and RS485 communication for system integration. It also includes a display screen, Bluetooth and Wi-Fi, providing convenient access to battery information and monitoring functions.

Before commissioning, confirm that the selected inverter supports the required communication interface and settings.

IP65 Protection

The battery has an IP65 enclosure rating, along with C5-M anti-corrosion protection. These features provide protection against dust ingress and water jets within the limits of the enclosure rating.

For buyers searching for a pylontech fidus plus 16kwh energy storage battery ip65, these protection features may be particularly relevant. However, the installation location must still meet the battery’s environmental requirements.

Safety and Protection

The FIDUS Plus has a multi-layer protection design that includes a fire-suppression module. In addition, an optional aerosol fire-extinguishing system is available for the battery.

For safe operation, follow the specified installation requirements and ensure that the battery is connected to compatible equipment.

Best For

The Pylontech FIDUS Plus 16KWh is suitable for:

• Residential solar energy storage
• Home battery backup systems
• Solar systems requiring a 51.2V low-voltage battery
• Buyers looking for around 16 kWh of energy storage
• Compatible hybrid inverter systems
• Users requiring CAN or RS485 battery communication
• Installations where wall-mounted or floor-standing placement is useful
• Expandable battery systems requiring multiple battery units

For additional product information, visit the Pylontech Official Website.

Not Ideal For

The FB-L-16 should not be selected on capacity alone. Before installation, confirm the following:

• The inverter supports the battery’s voltage range.
• The inverter’s charge and discharge current limits are compatible.
• The inverter supports the required CAN or RS485 communication.
• The planned location meets the battery’s installation requirements.
• The battery capacity and connected load suit the overall system design.

Therefore, check inverter compatibility and BMS communication before commissioning the system.

Battery Capacity: kWh and Ah Explained

The 16.076 kWh figure represents the battery’s energy capacity, while 51.2V represents its nominal voltage. These values describe different aspects of battery performance.

The equivalent capacity is approximately 314Ah, calculated from the nominal energy and voltage:

16,076 Wh ÷ 51.2V ≈ 314Ah

This calculation explains why the keyword pylontech fidus plus 16kwh 314ah may be relevant to buyers researching battery capacity.

However, the primary energy specification remains 16,076 Wh nominal capacity. The approximate Ah figure is a calculation based on nominal energy and voltage.

Battery Charging and Discharging Performance

The FB-L-16 supports the following charging and discharging values:

• Charge Voltage: 56–56.8V
• Discharge Voltage: 40–56.8V
• Maximum Continuous Charge Current: 200A
• Maximum Continuous Discharge Current: 200A
• Peak Charge/Discharge Current: 300A for 15 seconds

Operating temperature can affect the current available during charging and discharging because the BMS restricts current under extreme conditions. In addition, when the temperature is between -20°C and 0°C, the battery heating system activates to support charging above 0°C.

For this reason, installers should consider temperature conditions, inverter settings and current limits when designing the system.

Parallel Expansion

The FB-L-16 supports up to 20 batteries in a single battery group and up to 6 strings within the specified configuration limits. For multiple groups connected in parallel, the LV-HUB-V2 is required and functions as the master. In this arrangement, each group supports a maximum of 19 batteries.

As a result, the battery can support expandable energy-storage systems when the overall configuration allows the required setup. Before adding more units, confirm the required hub arrangement and system compatibility.

Technical Specifications

Lithium Battery Use in Pakistan

For Pakistani homes, a large-capacity battery can be useful when solar energy needs to be stored for later use. The Pylontech FIDUS Plus 16KWh can be integrated into a compatible solar-storage system to store available energy and supply battery power when required.

However, correct installation is particularly important in hot environments. The battery has a specified charging temperature range of 0–55°C and a discharging range of -20–60°C.

Therefore, install the battery according to its environmental requirements. Also, check the inverter, BMS communication and current limits before commissioning.

Pylontech FIDUS Plus 16KWh Price in Pakistan

The current price of Pylontech FIDUS Plus 16KWh Lithium Battery in Pakistan is Rs. 600,000 per unit.

Buyers searching for pylontech fidus plus 16kwh price in pakistan, pylontech fidus plus 16kwh battery price in pakistan, pylontech fidus plus 16kwh price or pylontech fidus price in pakistan can contact Hajvery Solar Energy for current availability and quantity-based enquiries.

Hajvery Solar Energy is a Pylontech Official Distributor, helping customers with product selection and applicable warranty guidance.

Hajvery Compatibility and Authenticity Check

Before purchasing the Pylontech FIDUS Plus 16KWh, confirm the exact model FB-L-16, battery voltage, inverter compatibility, charge/discharge limits and required communication protocol.

As a Pylontech authorized dealer, Hajvery Solar Energy can help buyers check compatibility and the relevant battery requirements before purchase.

For buyers researching a pylontech battery fidus plus 16kwh, important considerations include usable energy, battery voltage, current capability, inverter compatibility, communication and installation requirements.

Hajvery Solar Energy is also an Official Pylontech Distributor for this product category.

Warranty and After-Sales Support

The Pylontech FIDUS Plus FB-L-16 comes with a 5-year replacement warranty and a 5-year service warranty.

Keep the purchase and warranty details available for reference. In addition, contact Hajvery Solar Energy before ordering to confirm the requirements and applicable conditions for a warranty claim.

Buying through Hajvery Solar Energy, an authorized Pylontech dealer, provides a point of contact for product selection, compatibility questions and warranty-related guidance.

Before You Buy

Before ordering the Pylontech FIDUS Plus 16KWh, check the following:

• Battery voltage: 51.2V low-voltage system
• Energy requirement: 16.076 kWh nominal capacity
• Inverter compatibility: Confirm the battery voltage range
• BMS communication: Check CAN or RS485 compatibility
• Charge/discharge current: Confirm inverter limits
• Installation: Check suitability for wall-mounted or floor-standing placement
• Operating environment: Follow the specified temperature and installation requirements
• Expansion: Confirm the required battery-group configuration
• Warranty: 5-year replacement warranty and 5-year service warranty

FAQs

Is the Pylontech FIDUS Plus 16KWh a low-voltage battery?

Yes. The FB-L-16 has a 51.2V nominal voltage, making it a low-voltage lithium battery for compatible energy-storage systems.

How much energy does the Pylontech FIDUS Plus 16KWh store?

It has a 16,076 Wh (16.076 kWh) nominal capacity and the same specified usable capacity.

Is the Pylontech FIDUS Plus 16KWh equivalent to a 314Ah battery?

Its equivalent capacity is approximately 314Ah, calculated from 51.2V nominal voltage and 16.076 kWh nominal energy.

What is the maximum charge and discharge current?

The maximum continuous charge and discharge current is 200A, while the peak charge/discharge current reaches 300A for 15 seconds.

Does the battery support CAN and RS485?

Yes. The FB-L-16 supports CAN and RS485 communication for integration with compatible equipment.

How many batteries can be connected?

Up to 20 batteries can be configured in one battery group, with up to 6 strings under the specified configuration. Multi-group setups require the appropriate hub arrangement.

What is the current price of the pylontech fidus plus 16kwh lithium battery price in pakistan?

The current price of Pylontech FIDUS Plus 16KWh Lithium Battery in Pakistan is Rs. 600,000 per unit.

What warranty does the FB-L-16 have?

The battery comes with a 5-year replacement warranty and a 5-year service warranty.

Buy Pylontech FIDUS Plus 16KWh from Hajvery Solar Energy

The Pylontech FIDUS Plus 16KWh FB-L-16 is designed for substantial low-voltage energy storage. Its key features include 16.076 kWh capacity, 51.2V architecture, 200A continuous current capability, 100% DoD, IP65 protection and CAN/RS485 communication.

For residential solar backup and energy-storage applications, confirm compatibility with the selected inverter before purchase. In addition, check the battery voltage, current limits, communication settings and installation conditions.

Hajvery Solar Energy can assist customers in Pakistan with product selection, battery compatibility and warranty-related guidance.
